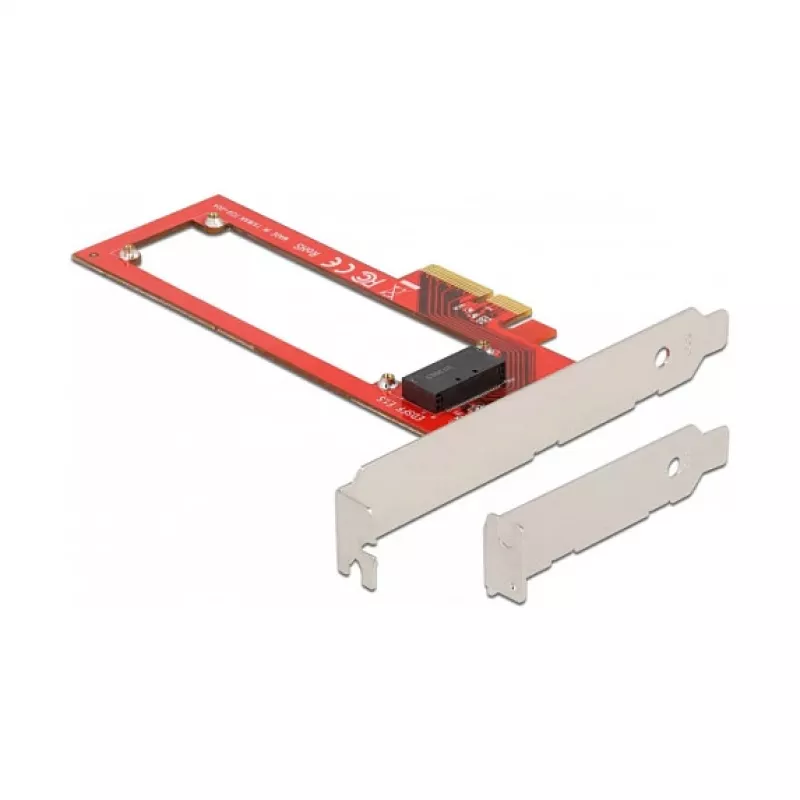

Delock Scheda PCI Express x4 su 1 x Slot EDSFF E1.S - Low Profile

This Delock PCI Express x4 card enables you to connect an EDSFF E1.S NVMe SSD to your system via a PCIe slot. It supports PCIe 4.0 x4 for high-speed data transfer up to 64 Gbps. The card comes with both low profile and standard brackets, making it suitable for various case sizes. It is bus-powered and requires no driver installation, offering a plug-and-play solution for expanding storage capabilities.

Advantages

High-speed NVMe storage expansion via PCIe 4.0 x4 interface. Low profile design fits compact systems. Includes both low profile and standard brackets for flexible installation. No driver required, OS independent.

Suitable for

• Adding EDSFF E1.S NVMe SSD to desktop or server systems
• Upgrading storage in low profile or small form factor PCs
• High-performance computing and data-intensive applications

Key specifications

• Host Interface: PCI Express 4.0 x4
• Internal Connector: 1 x EDSFF E1.S slot (SFF-TA-1002)
• Supported SSD Form Factor: EDSFF E1.S NVMe SSDs
• PCIe Slot Compatibility: PCIe x4 / x8 / x16 / x32
• Maximum Data Transfer Rate: 64 Gbps
• Form Factor: Low Profile
• Bracket Type: Low Profile and Standard (included)
• Power Source: PCI Express bus power
• LED Indicator: 1 x Activity LED
• Compliance: PCI Express Base Specification 4.0

Recommendations

Ensure your system has an available PCIe x4 or larger slot. The card is ideal for users needing high-speed NVMe storage in a compact form factor.
