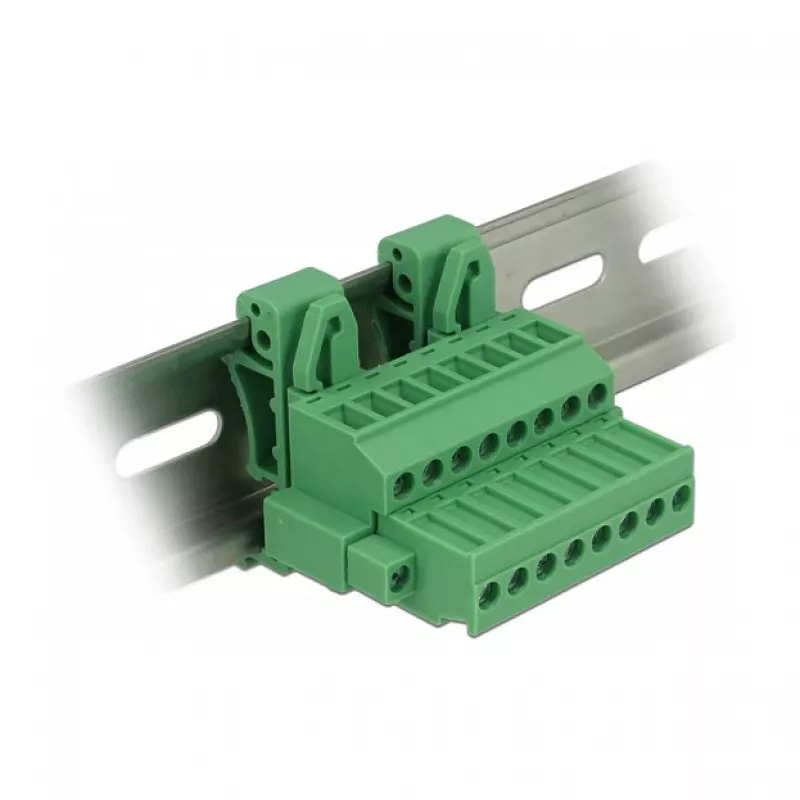

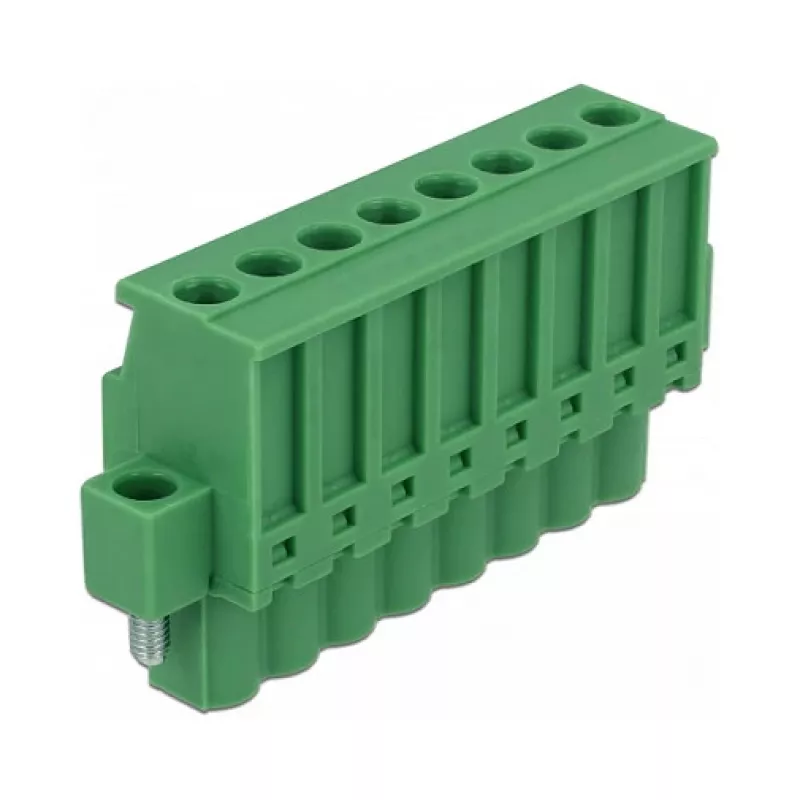

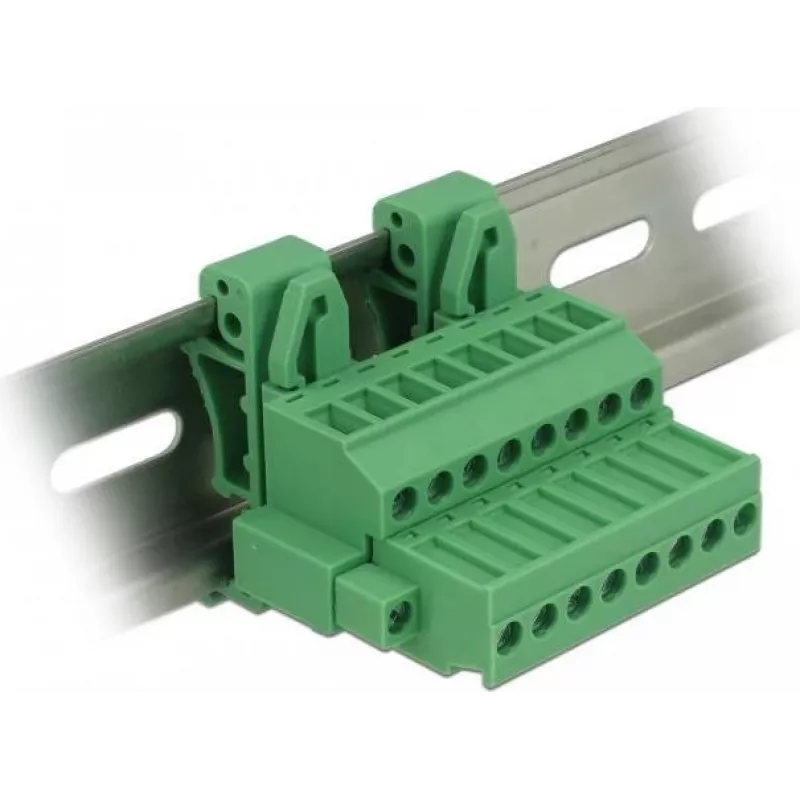

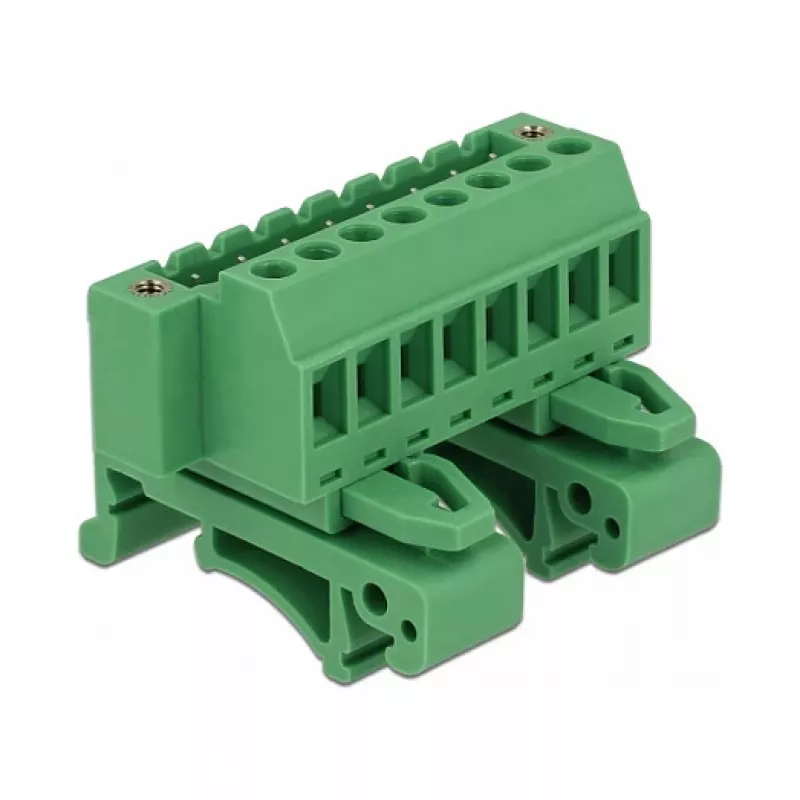

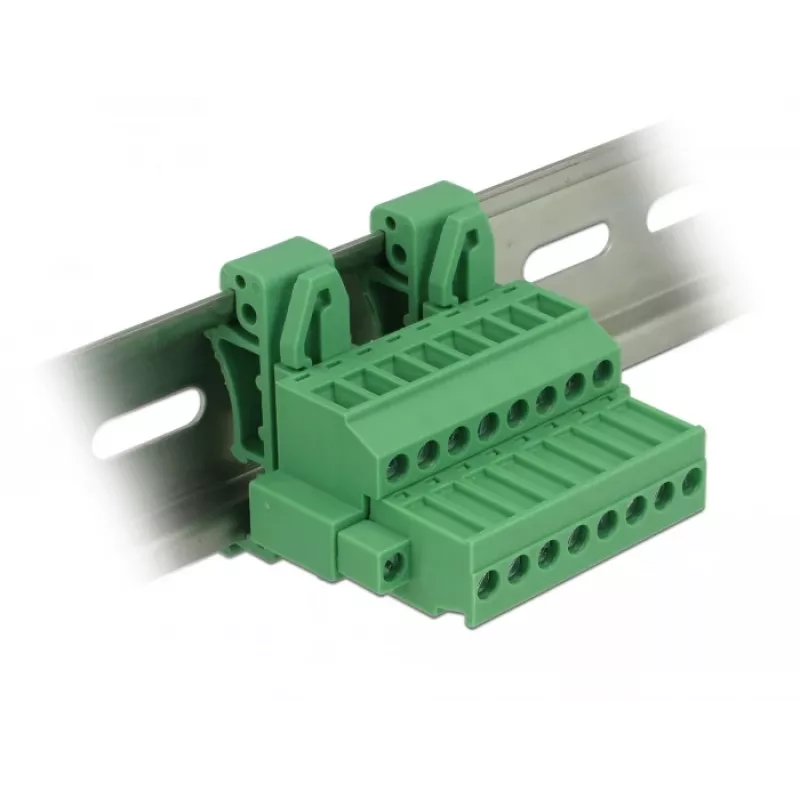

Delock set morsettiere per guida DIN 8 poli con fissaggio a vite

Terminal block set for DIN rail mounting with 8 screw-lock poles, providing secure and reliable wire connections in industrial control panels and distribution boxes.

Advantages

Screw locking mechanism ensures vibration-resistant connections. Compact 5.0 mm pitch saves rail space. Durable PA66 housing with UL94V-0 flammability rating for safety.

Suitable for

• Industrial automation and control systems
• Building electrical distribution
• DIN rail assemblies in cabinets

Key specifications

• Mounting: DIN rail TS-35
• Poles: 8
• Connection: screw terminal
• Rated voltage: 300 V
• Rated current: 10 A
• Wire gauge: 22-12 AWG (0.5-2.5 mm²)
• Pitch: 5.0 mm
• Colour: green
• Material: PA66, brass contacts tin-plated
• Operating temperature: -40°C to +105°C

Recommendations

Ideal for electricians and panel builders needing a reliable, compact terminal block set for DIN rail installations.
