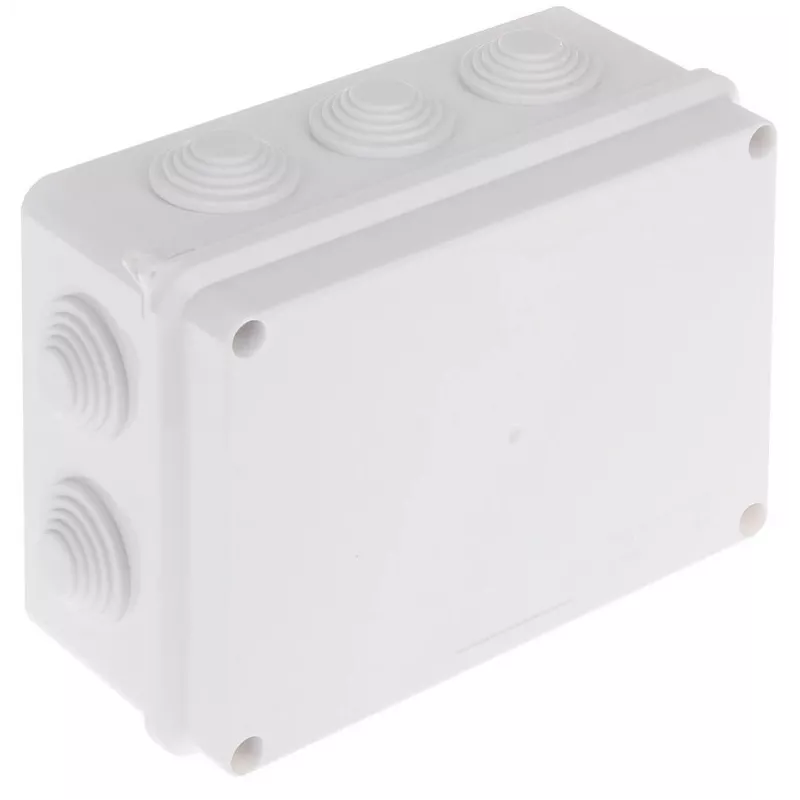

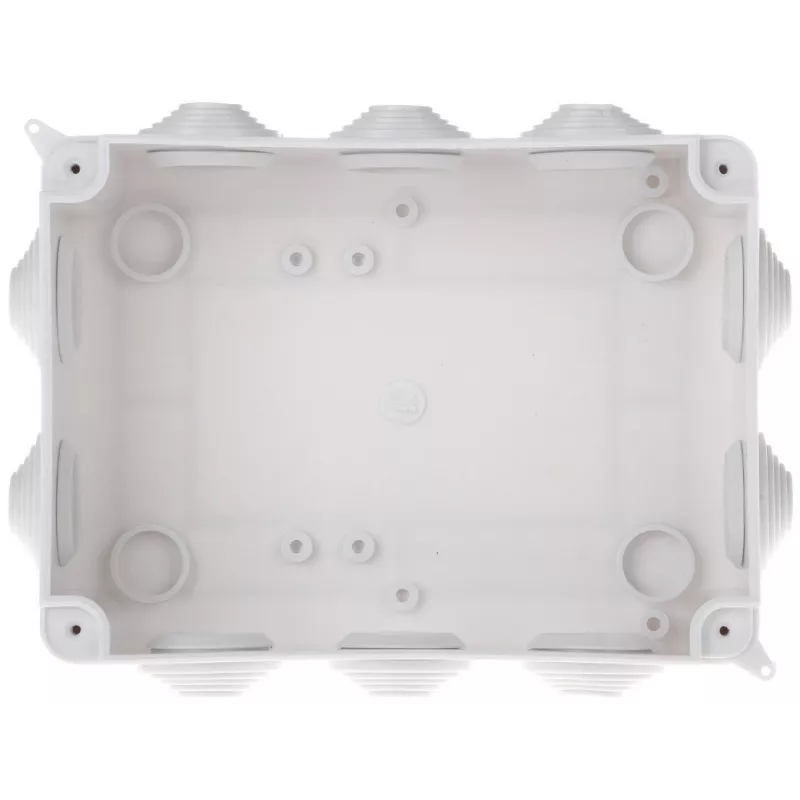

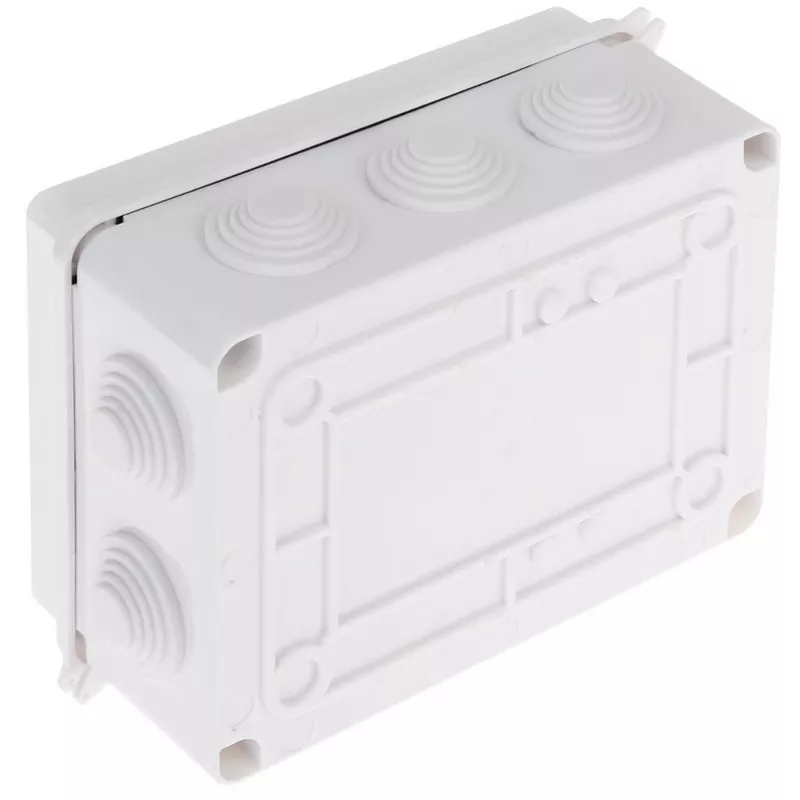

DELTA PK-150X110 scatola di derivazione IP65 grigio

The DELTA PK-150X110 is a robust electrical junction box designed for indoor and outdoor use. With an IP65 rating, it offers complete protection against dust and water jets, making it ideal for demanding environments. The box is made from high-quality polystyrene (PS) and features a screw-on lid with four plastic screws for secure sealing.

Advantages

IP65 and IK07 protection ensure durability and safety in harsh conditions. Halogen-free material and glow-wire tested at 650°C provide enhanced fire safety. The smooth walls allow for user-drillable cable entries, offering flexibility during installation.

Suitable for

• Electrical installations requiring weatherproof enclosures
• Industrial and commercial wiring projects
• Outdoor lighting and power distribution

Key specifications

• Product Type: Electrical Junction Box
• Ingress Protection: IP65
• Impact Protection: IK07
• External Dimensions: 150 x 110 x 70 mm
• Material: Polystyrene (PS)
• Colour: Grey (RAL 7035)
• Lid Type: Screw-on with 4 plastic screws
• Mounting: External lugs
• Operating Temperature: -25°C to +60°C
• Rated Insulation Voltage: 690 V AC
• Halogen-Free: Yes
• Glow-Wire Test: 650°C
• Standards: EN 60670-1, EN 60670-22

Recommendations

For optimal performance, use appropriate cable glands and ensure proper sealing of unused entries. Suitable for both indoor and outdoor applications where reliable protection is required.
