DELTA supporto a soffitto telescopico per telecamere BR-60X120 bianco

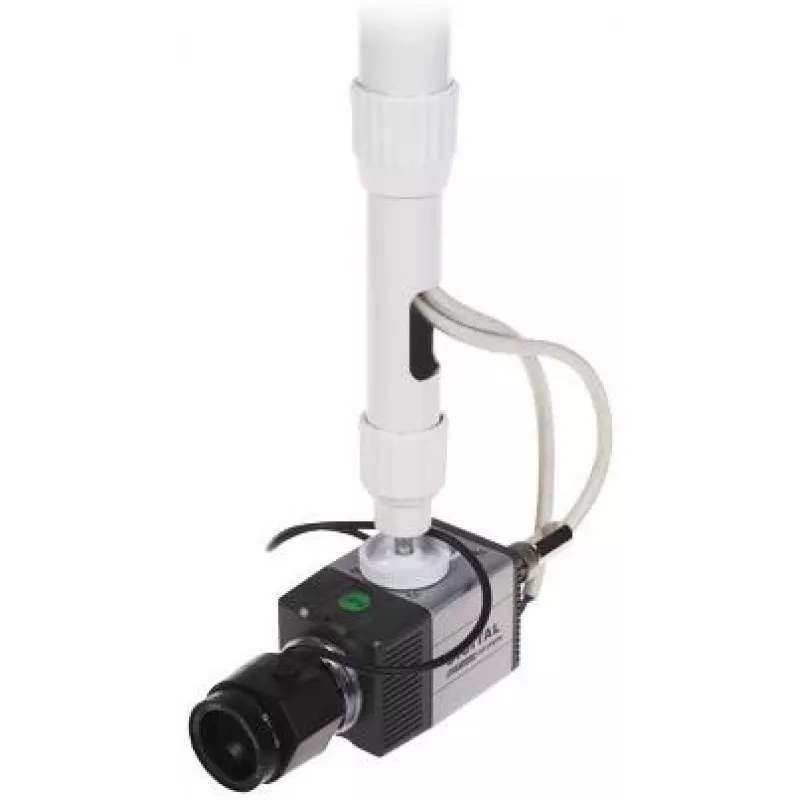

The DELTA BR-60X120-W is a robust telescopic ceiling mount designed for CCTV cameras and small projectors. Its adjustable length from 600 mm to 1200 mm provides flexible positioning, while the 360° horizontal rotation and ±90° vertical tilt ensure optimal coverage. The mount features integrated cable management for a clean installation and is constructed from steel and aluminum alloy with a powder-coated white finish for durability and anti-corrosion protection.

Advantages

This mount offers exceptional versatility with its telescopic arm, allowing precise adjustment of camera height and angle. The 360° rotation and wide tilt range enable comprehensive surveillance coverage. Integrated cable routing keeps wires organized and out of sight, enhancing the professional appearance of your installation. The sturdy steel and aluminum construction supports up to 5 kg, making it suitable for a variety of cameras and small projectors.

Suitable for

• CCTV cameras (indoor/outdoor)
• Small projectors
• Security systems requiring ceiling mounting

Key specifications

• Product Type: Ceiling Camera Mount
• Mounting Type: Telescopic
• Material: Steel, Aluminum Alloy
• Color: White
• Minimum Extension Length: 600 mm
• Maximum Extension Length: 1200 mm
• Maximum Load Capacity: 5 kg
• Horizontal Rotation: 360°
• Vertical Tilt Angle: -90° to +90°
• Swivel Angle (Camera Head): ±30°
• Camera Mounting Interface: 1/4" Universal Screw
• Cable Management: Integrated Cable Routing
• Ceiling Plate Diameter: 115 mm
• Installation Method: Screw-in Ceiling Mount
• Finish: Powder Coated
• Number of Pivot Points: 2
• Construction: Robust, Anti-corrosion

Recommendations

For best results, ensure the ceiling surface is solid and capable of supporting the mount and camera weight. Use appropriate screws and anchors (not included) for installation. The mount is compatible with cameras and projectors that have a 1/4" mounting thread.
