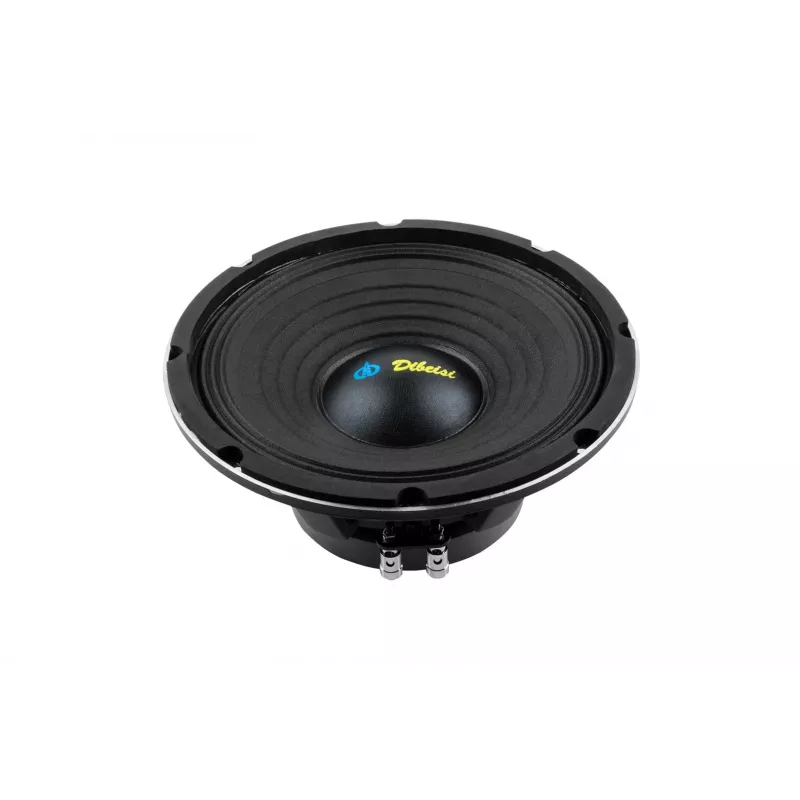

Dibeisi woofer 10 inch DBS-PS1005-8 200W RMS 4 Ohm

The Dibeisi DBS-PS1005-8 is a high-performance 10-inch woofer speaker designed for car audio and general-purpose sound systems. Featuring a robust 200W RMS (500W peak) power handling and a 4-ohm impedance, this speaker delivers deep, powerful bass with a frequency response of 35 Hz to 3.5 kHz. Its durable construction includes a non-pressed paper cone, rubber surround, and stamped steel basket, ensuring long-lasting reliability.

Advantages

This woofer offers excellent sensitivity (90 dB) for efficient sound production, a 2-inch single voice coil for clear audio, and a high-density ferrite magnet for strong magnetic flux. It is versatile for both sealed and ported enclosures, making it suitable for various installation scenarios.

Suitable for

• Car audio subwoofer systems
• Home theater bass reinforcement
• Professional sound reinforcement
• DIY speaker projects

Key specifications

• Speaker Diameter: 10 inch (25.4 cm)
• Power Handling (RMS): 200 W
• Power Handling (Peak): 500 W
• Nominal Impedance: 4 Ohm
• Frequency Response: 35 Hz - 3.5 kHz
• Sensitivity: 90 dB (1W/1m)
• Voice Coil Diameter: 2 inch (50 mm)
• Voice Coil Type: Single Voice Coil (SVC)
• Magnet Material: High-Density Ferrite
• Cone Material: Non-Pressed Paper Cone
• Surround Material: Durable Rubber Surround
• Basket Material: Stamped Steel Basket
• Mounting Depth: 120 mm
• Cutout Diameter: 232 mm
• Magnet Weight: 40 oz
• Terminal Type: Spring-Loaded Push Terminals
• Recommended Enclosure: Sealed or Ported
• Quantity: 1 Speaker

Recommendations

For optimal performance, pair this woofer with an amplifier that delivers 200-500W RMS at 4 ohms. Ensure the enclosure volume matches the recommended specifications for your desired application.
