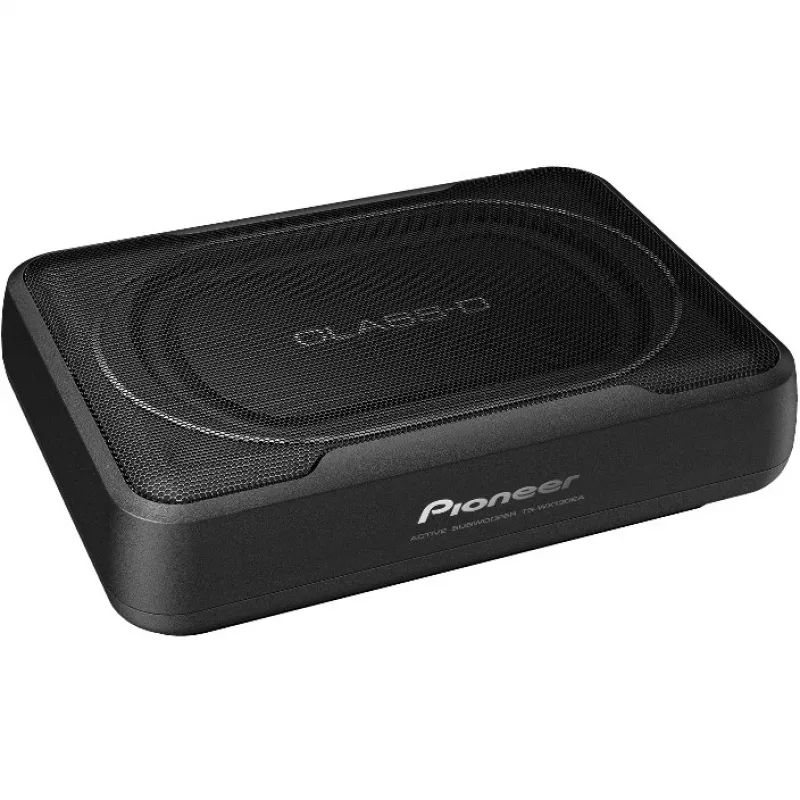

PIONEER Subwoofer attivo auto preinstallato TS-WX130EA 160 W, 280×200×70 mm

PIONEER TS-WX130EA is a pre-loaded active car subwoofer offering 160 W maximum power in a compact enclosure sized 280 × 200 × 70 mm. The unit integrates a built-in Class-D amplifier and a driver in a low-height cabinet designed for placement under a seat or in a boot, providing low-frequency reinforcement for small to mid-size vehicles where installation space is limited.

Advantages

The integrated design simplifies installation by combining amplifier and driver in a single sealed enclosure that fits into confined spaces. Class-D amplifier technology delivers efficient power handling with reduced current draw while maintaining the capability to produce up to 160 W. The analog circuitry, using a high-quality operational amplifier for signal processing, is tuned to deliver dynamic and tight bass response appropriate for in-car listening. The enclosure dimensions and low profile allow flexible placement options without occupying significant cargo space.

Suitable for

• Improving bass response in small and mid-size cars
• Under-seat installation where vertical space is limited
• Owners seeking a compact active subwoofer with integrated amplifier
• Systems that require an easy-to-install low-frequency reinforcement unit

Key specifications

• Maximum power: 160 W
• Enclosure dimensions: 280 × 200 × 70 mm
• Design: Pre-loaded active subwoofer with built-in amplifier and driver
• Amp type: Class-D power amplifier
• Frequency emphasis: Tuned for low-frequency/bass reinforcement
• Installation: Low-profile enclosure suitable for under-seat or boot placement

How to use

Place the subwoofer in a suitable location such as under a front or rear seat or in the boot where the low profile fits. Connect the unit to the vehicle audio system according to the manufacturer’s wiring instructions: supply the required power and ground connections, and connect the signal input (line-level or speaker-level) from the head unit or amplifier outputs. Adjust the subwoofer level and any available crossover or phase controls at the head unit or on the subwoofer (if present) to achieve a balanced low-frequency response with the main speakers. Ensure secure mounting and routing of cables to avoid interference with vehicle controls or moving parts.

Recommendations

For best results, start with moderate gain settings and incrementally increase output while listening to familiar music tracks to avoid distortion. Positioning under the seat provides close coupling to the cabin and preserves boot space; if using in the boot, test different orientations to find the most even bass distribution. Verify secure cable connections and use the vehicle’s audio settings to blend the subwoofer smoothly with main speakers.
