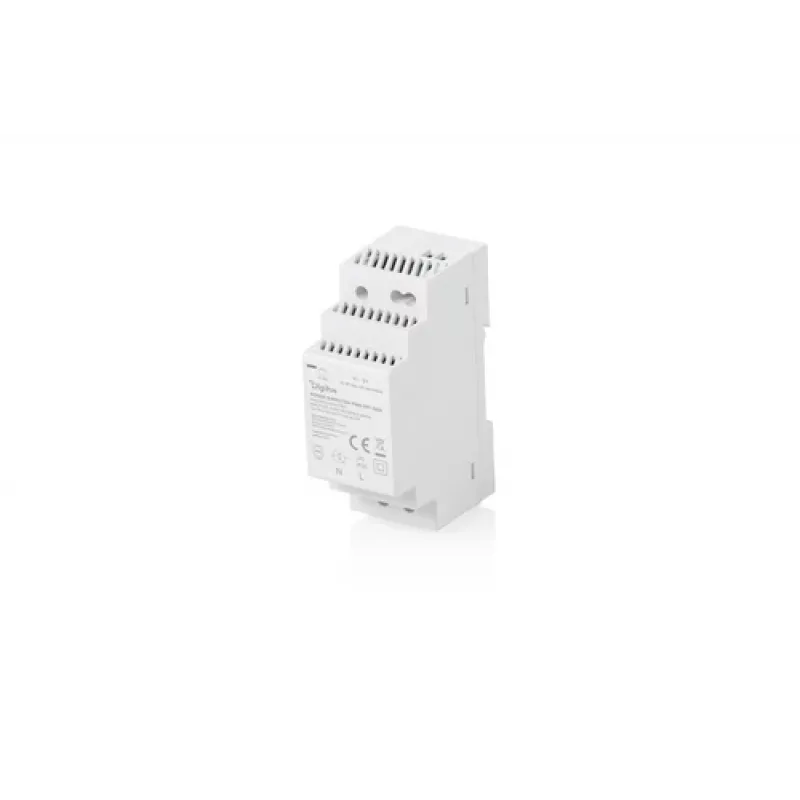

DIGITUS Alimentatore per guida DIN 24V/1,5A/36W Step-Shape (slim, classe di protezione II)

The DIGITUS DN-PWR-SST-3624 is a high-efficiency step-shape DIN rail power supply delivering 24V DC at 1.5A (36W). Designed for industrial automation, sensor systems, and control cabinets, this slim Class II device offers reliable performance in a compact form factor.

Advantages

High efficiency >89% reduces energy waste and heat generation. Slim step-shape design saves space on DIN rails. Protection Class II eliminates the need for earth connection. Wide input voltage range (85-264V AC / 95-250V DC) ensures global compatibility. Built-in overload and short-circuit protection safeguard connected equipment.

Suitable for

• Industrial sensors and actuators
• PLC and automation systems
• Building automation and HVAC controls
• Security and access control systems
• Any 24V DC application requiring reliable power

Key specifications

• Input: 85-264V AC (single-phase) or 95-250V DC
• Output: 24V DC, 1.5A, 36W
• Adjustable output voltage: 22.5-28.5V DC
• Efficiency: >89% at 230V AC nominal load
• Mounting: DIN rail (EN 60715)
• Operating temperature: -25°C to 70°C
• Protection: IP20, overload, short-circuit
• No-load power consumption: <0.3W
• MTBF: >1,000,000 hours
• Certifications: UL, cUL, GL, CB, CE

Recommendations

For optimal performance, use with appropriate circuit protection and ensure adequate ventilation. Ideal for space-constrained installations where slim profile and high efficiency are required.
