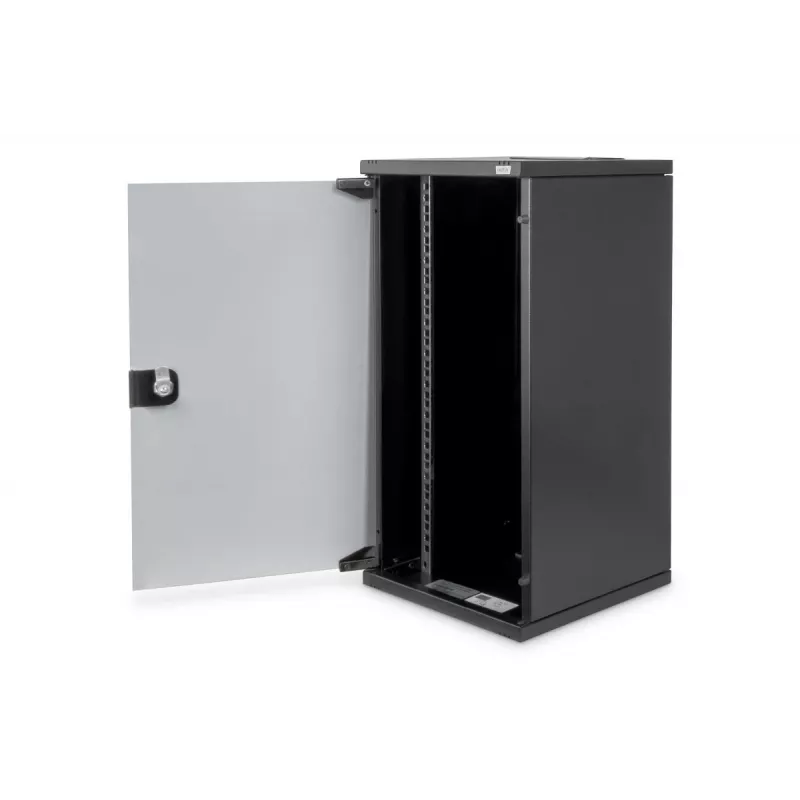

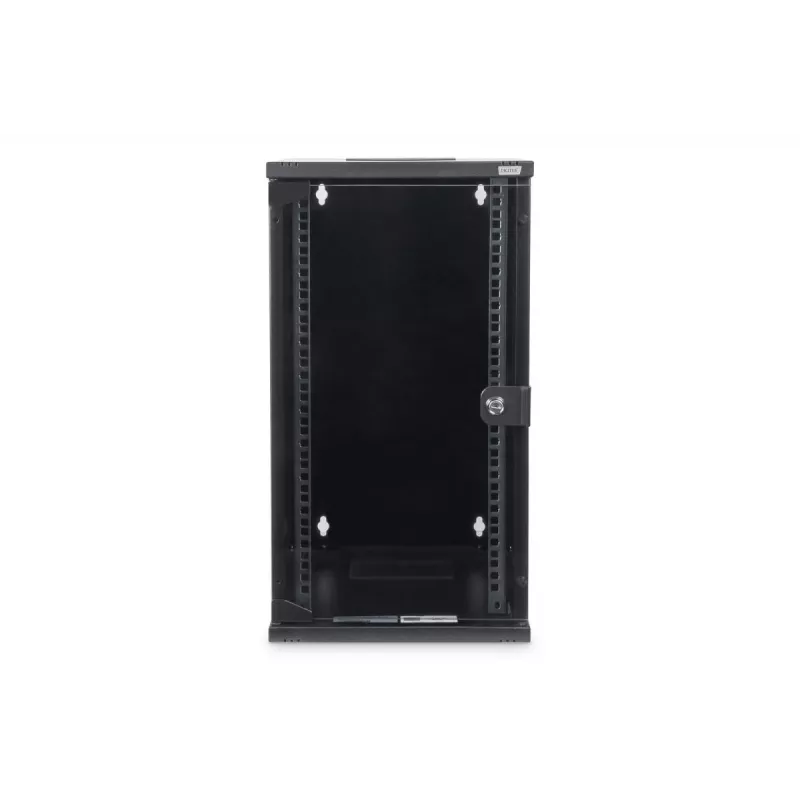

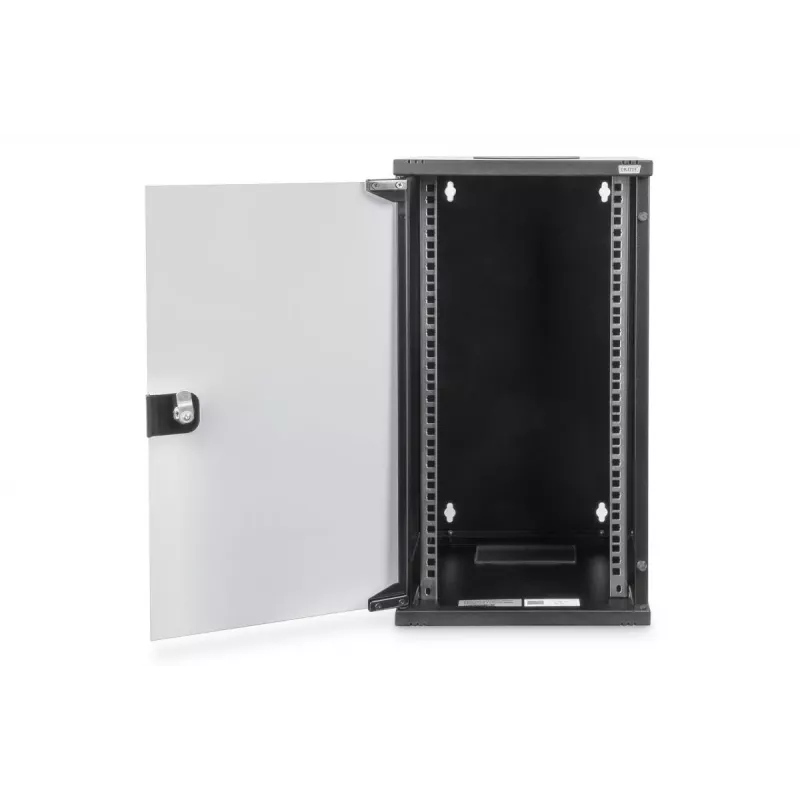

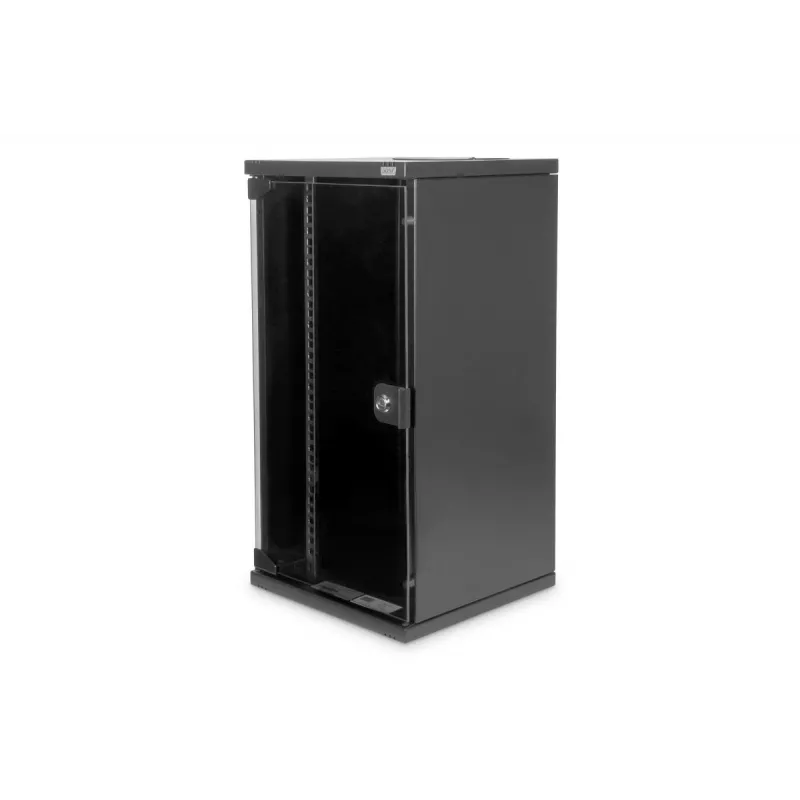

DIGITUS case da parete 254 mm (10") – 312 x 300 mm (L x P) nero

The DIGITUS Wall Mounting Cabinet DN-10-12U-B is a compact 12U rack cabinet designed for indoor IT infrastructure in spaces with limited room. Made of up to 1.5 mm sheet steel with electrostatic powder coating in black (RAL 9005), the cabinet includes a full glass door, brush-protected cable entry points in the top and bottom, and adjustable galvanized 10" profile rails with rack unit markings. It supports a maximum mounting depth of 240 mm and a load capacity suited for small network installations.

Advantages

The wall-mounted cabinet offers a compact footprint (312 x 300 mm, W x D) and a 12U height (592 mm) to install network equipment where floor space is limited. Its collapsible design allows complete dismantling for transport or installation, and switchable door hinges increase mounting flexibility. Internal cable management with brush entries and adjustable rails simplify installation and maintenance.

Suitable for

• Small office network switches, patch panels and routers
• Closely spaced server closets or distribution points with limited depth
• Home labs and residential network installations
• Sub-distribution units in commercial offices

Key specifications

• Rack capacity: 12U
• External dimensions (W x D x H): 312 x 300 x 592 mm
• Maximum mounting depth: 240 mm
• Material: Up to 1.5 mm sheet steel, powder coated (black RAL 9005)
• Door: Full glass door, switchable hinges, key lock
• Cable entry: Brush-protected entries in roof and floor
• IP rating: IP20 (indoor use)
• Maximum supported equipment weight: up to 30 kg

How to use

Mount the cabinet securely on a suitable indoor wall using appropriate anchors for the wall material. Remove the collapsible panels if needed for easier positioning, then reassemble and fix the cabinet. Fit equipment onto the adjustable 10" profile rails and secure it using standard rack screws. Route cables through the brush-protected entries in the top or bottom and use the internal space for neat cable management. Lock the glass door with the supplied key when access must be restricted.

Recommendations

Install the cabinet in a dry, temperature-controlled indoor environment (IP20). Ensure the total equipment weight does not exceed the specified limit and verify wall anchors and mounting hardware are rated for the combined weight of the cabinet and installed devices.
