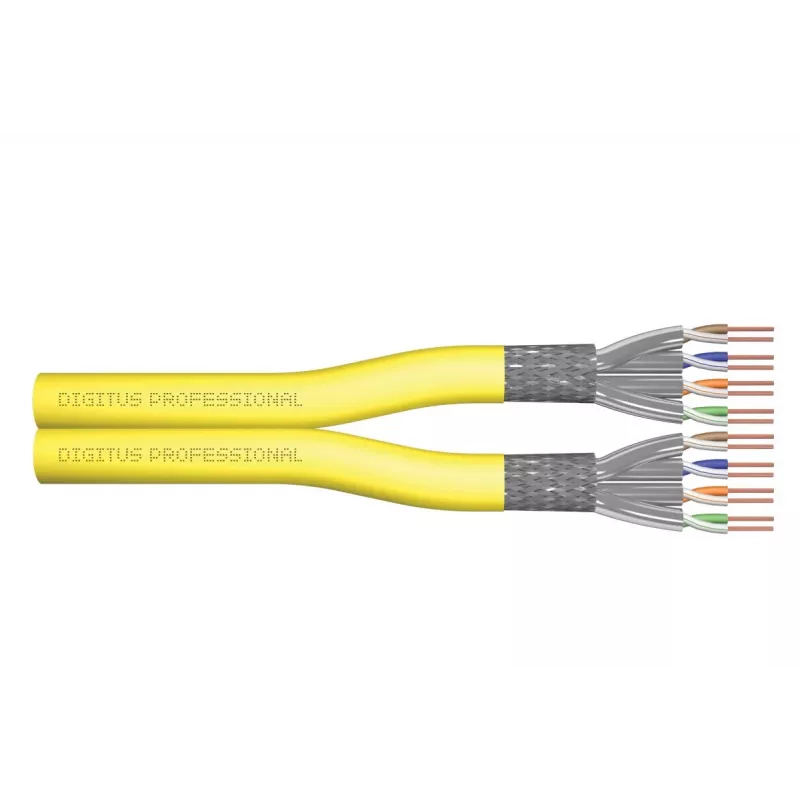

DIGITUS Cavo di installazione - CAT 7A - S/FTP - AWG 22/1 Duplex - 500m - giallo - B2ca

The DIGITUS CAT 7A S/FTP installation cable (4x2x AWG22/1) is a halogen-free, high-performance network cable designed for structured building cabling. With a transmission frequency of up to 1500 MHz and support for 10 GBit Ethernet and PoE, this 500 m yellow duplex cable is intended for professional installations in secondary and tertiary areas. The sheath meets IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca requirements, and the cable conforms to ISO/IEC 11801, DIN EN 50173 and DIN EN 50288-4-1 standards.

Advantages

The S/FTP shielding provides robust protection against electromagnetic interference and crosstalk, ensuring stable high-speed data transmission. The 4x2x AWG22/1 conductor structure and certification for permanent link installations make the cable suitable for reliable 10 GBit Ethernet connections. The halogen-free, low-smoke sheath increases fire safety and compliance with modern building regulations (B2ca).

Suitable for

• Structured building cabling in offices and commercial buildings
• High-speed 10GBase-T networks and backbone connections
• Power over Ethernet (PoE) applications such as IP phones and access points
• Environments requiring low-smoke, halogen-free cable materials

Key specifications

• Cable type: CAT 7A S/FTP, 4x2x AWG22/1
• Length: 500 m (duplex)
• Transmission frequency: up to 1500 MHz
• Data rate: supports 10 GBit Ethernet (10GBase-T)
• Shielding: S/FTP (screened foiled twisted pair)
• Sheath: halogen-free, FRNC-C, LSZH-3
• Fire class: CPR Euro class B2ca
• Standards: ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1
• Color: Yellow

How to use

Install the cable as part of a structured cabling system, routing it through conduits or cable trays according to local installation rules. Terminate both ends with compatible CAT 7A RJ45 keystone jacks or patch panels using appropriate tools to maintain the S/FTP shielding and pair integrity. Test the permanent link after installation with certified cabling testers to verify performance up to 1500 MHz and compliance with relevant standards.

Recommendations

For optimal performance, avoid tight bends and excessive tensile stress during installation, maintain proper separation from power lines and heavy electrical equipment, and use certified components and testers when deploying 10GBase-T and PoE systems.
