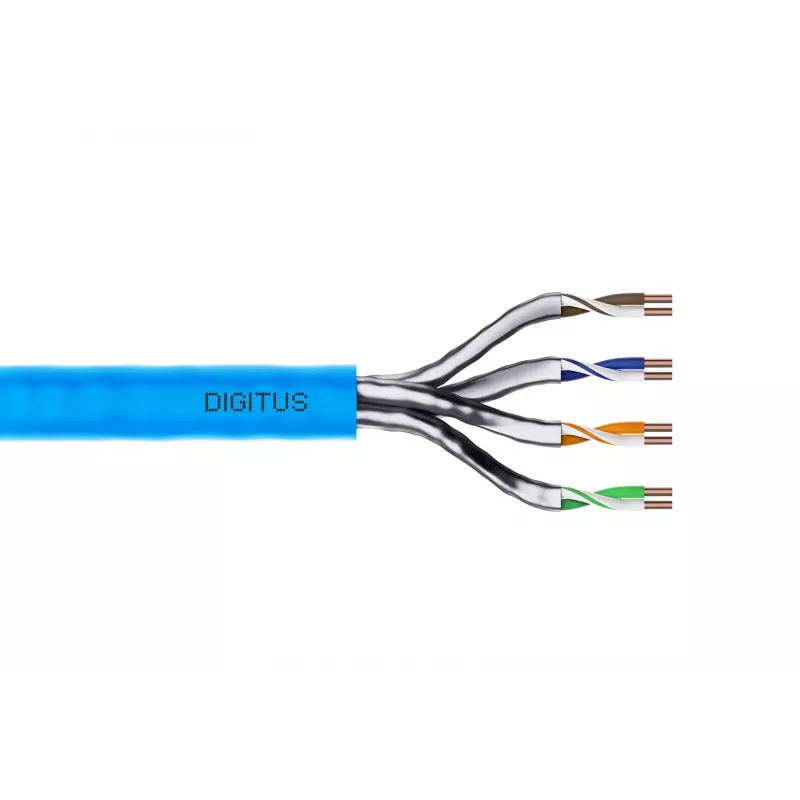

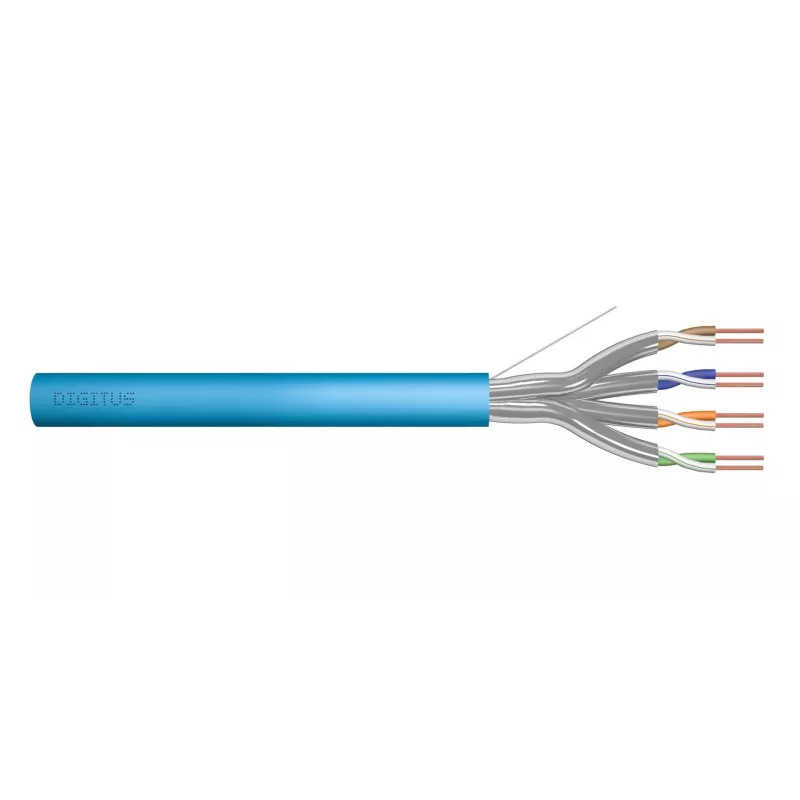

DIGITUS Cavo di installazione Cat6A U/FTP Dca AWG 23/1 LSOH 500m blu rotolo

With a frequency bandwidth of up to 500 MHz, this DIGITUS Cat6A installation cable delivers reliable 10 Gigabit Ethernet performance over 100-meter permanent links. The U/FTP construction, featuring individually foil-shielded pairs, provides superior protection against alien crosstalk and electromagnetic interference, ensuring stable signal integrity in demanding network infrastructures.

Overview

The DIGITUS DK-1624-A-VH-5 is a premium Cat6A installation cable engineered for structured cabling systems in commercial and industrial environments. Its solid bare copper conductors (AWG 23/1) guarantee excellent conductivity and long-term durability. The low smoke zero halogen (LSOH) jacket meets stringent fire safety requirements, emitting minimal smoke and no halogen gases when exposed to fire. This cable complies with ISO/IEC 11801, EN 50173, and TIA/EIA 568-C.2 standards, ensuring compatibility with current and future network equipment. Supplied on a 500-meter wooden reel, it provides ample length for large-scale installations.

What stands out

• Supports 10GBASE-T Ethernet up to 100 meters
• Individually foil-shielded pairs (U/FTP) for excellent crosstalk resistance
• Solid bare copper conductors ensure superior conductivity and durability
• LSOH jacket for low smoke and zero halogen emissions
• Fire performance class Dca-s2, d2, a1 per EN 50575
• Supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt)

Technical details

• Cable category: Cat6A (Category 6A)
• Shielding type: U/FTP (foil shielded pairs)
• Conductor gauge: AWG 23/1 (solid)
• Conductor material: bare copper
• Number of pairs: 4
• Jacket material: LSOH (low smoke zero halogen)
• Outer diameter: 7.2 mm
• Operating temperature: -20°C to +60°C
• Packaging: wooden reel, 500 m

Our verdict

A top-tier Cat6A installation cable that combines high-speed performance, robust shielding, and fire safety. Ideal for data centers, offices, and public buildings where reliability and compliance are paramount.
