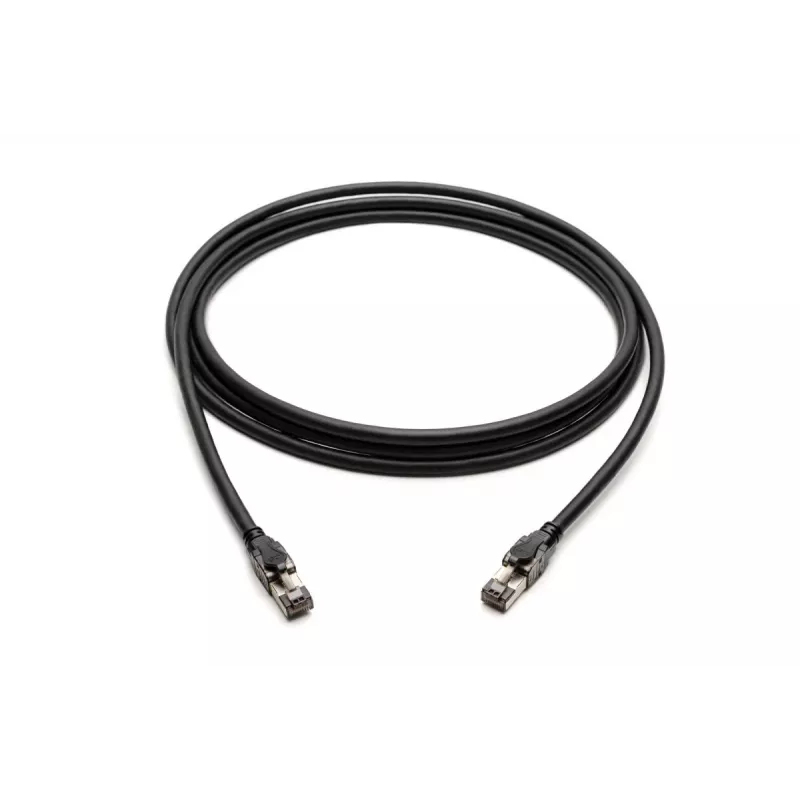

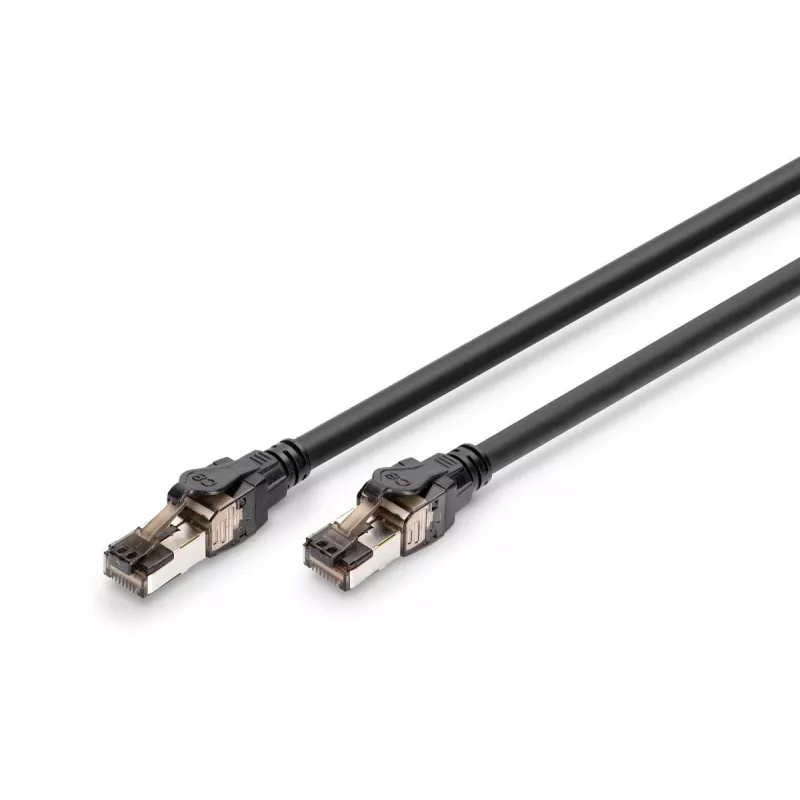

DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero

DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
DIGITUS Cavo patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - nero
26,32 €
The high-end network solution according to the CAT 8.1 standard- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance- New connector: RJ45 connector with integrated PCB for improved signal integrity and... Leggi di più
Stock 4 Codice 114294 Marca DIGITUS Modello DK-1843-050 Garanzia 2 anni

Spedizioni e resi

Consegna stimata Martedì, Ottobre 20
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

The high-end network solution according to the CAT 8.1 standard

- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance
- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

Punti salienti

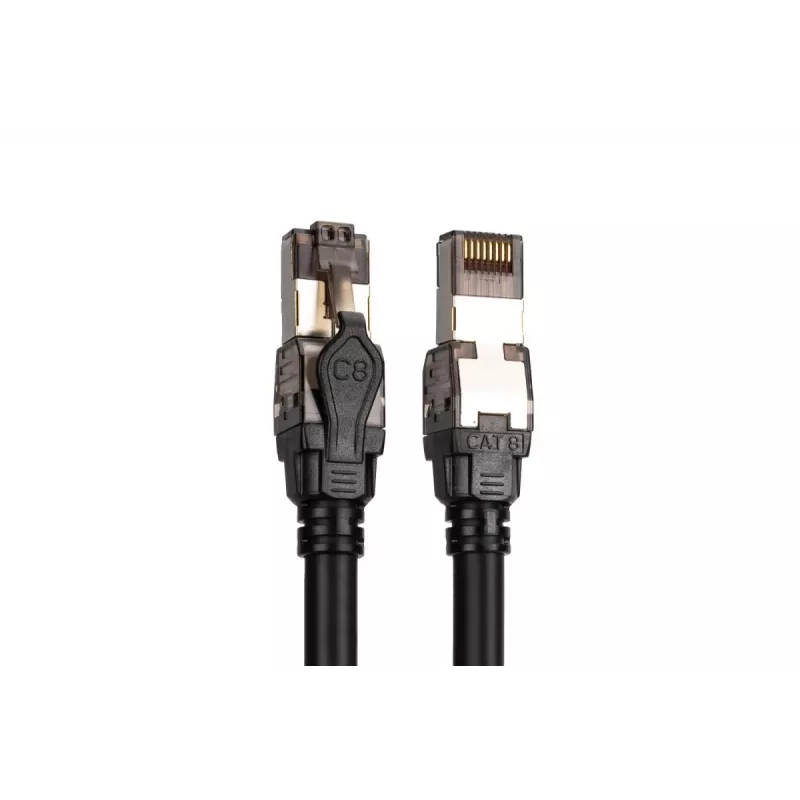

  • 2 x RJ45 plug connector (PCB)
  • RJ45 plug connector 3 μ nominal gold-plated over 60 μ nickel-primed contact pins
  • FO-PE (foamed polyethylene) insulation
  • Total diameter 8.0 mm ± 0.2 mm
  • Bending radius 15x OD
  • Wiring standard EIA/TIA 586B
  • Color code orange x white, green x white, blue x white, brown x white
  • Pin assignment 1:1
  • Contact resistance 750 mating cycles
  • Contact resistance 30 mΩ maximum
  • Unbalanced resistance 3% maximum
  • Insulation resistance 2500 VDC for 3 seconds
  • Uninsulated resistance 150 MΩ/km minimum
  • Operating temperature -20 °C to +60 °C
  • NVP 72%
  • Flame resistance IEC 60332-1
  • Smoke emission IEC 61034
  • Typical applications IEEE 802.3 Ethernet (10/100/1000BASE-T)
  • PoE according to IEEE 802.3af/at/bt (PoE+, PoE++ type 3 & 4)
  • Standards ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Specifiche
Altezza confezione
10 mm
Certificazione
IEC 60332-1 IEC 61034 SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Colore del prodotto
Black
Connettore 1
RJ-45
Connettore 1 maschio/femmina
Male
Connettore 2
RJ-45
Connettore 2 maschio/femmina
Male
Diametro esterno
8 mm
Forma del cavo
Round
Formato connettore 1
Straight
Formato connettore 2
Straight
Frequenza
2000 MHz
Larghezza confezione
340 mm
Lunghezza del cavo
5 m
Materiale del conduttore
Copper
Materiale della guaina
Low smoke zero halogen (LSZH)
Materiale schermatura connettore
Metal foil
Peso confezione
240 g
Placcatura dei contatti del connettore
Gold
Plug and Play
Yes
Profondità confezione
370 mm
Quantità per confezione
1 pc(s)
Raggio di curvatura (min.)
1.5 cm
Schermatura connettore
Yes
Schermatura del cavo
S/FTP (S-STP)
Sezione del conduttore (AWG)
24/7
Standard del cavo
Cat8.1
Temperatura di esercizio (T-T)
-20 - 60 °C
