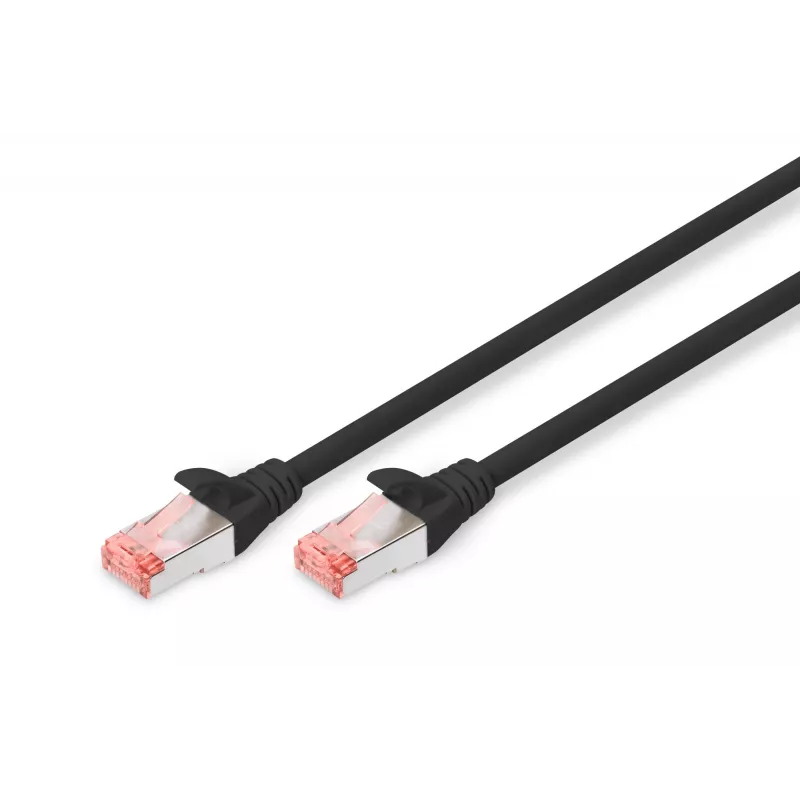

DIGITUS Cavo patch conduttore in rame - CAT6 - S/FTP - Snagless - 1 m - nero

DIGITUS Category 6 Class E patch cords deliver high-end network performance and compliance with current cabling standards. The cables are designed with an LSZH (Low Smoke Zero Halogen) sheath for improved fire behaviour and reduced smoke emissions, feature copper conductors and are PoE+ ready. The transparent red connector with metal shielding provides easy visual identification of Category 6 (250 MHz) cables.

Advantages

Manufactured and tested to ISO/IEC 11801 and DIN EN 50173 Category 6 specifications, these patch cords guarantee channel compliance and reliable performance up to 250 MHz, including NEXT characteristics. Each cord has a molded boot with kink protection, strain relief and a latch protector to prevent the locking tab from breaking. The transparent red, metal-shielded plug allows quick identification and ensures a secure connection.

Key specifications

• Category: 6 (Class E)
• Tested frequency: up to 250 MHz
• Conductor material: Copper (Cu)
• Sheath: LSZH (Low Smoke Zero Halogen)
• Connector: transparent red plug with metal shielding
• PoE support: PoE+
• Features: molded boot, kink protection, strain relief, latch protection

How to use

Connect one end of the patch cord to the device or patch panel port and the other end to a switch, router or outlet socket. Ensure connectors are fully inserted until the latch engages. Route the cable without sharp bends and avoid excessive tension to preserve the molded boot and kink protection. Verify network link and configuration after installation to confirm PoE+ and data transmission.

Recommendations

For optimal network performance, use DIGITUS Category 6 patch cords within a structured cabling channel that meets ISO/IEC 11801 or EN 50173 specifications and avoid running network cables parallel to strong electrical sources to minimize interference.
