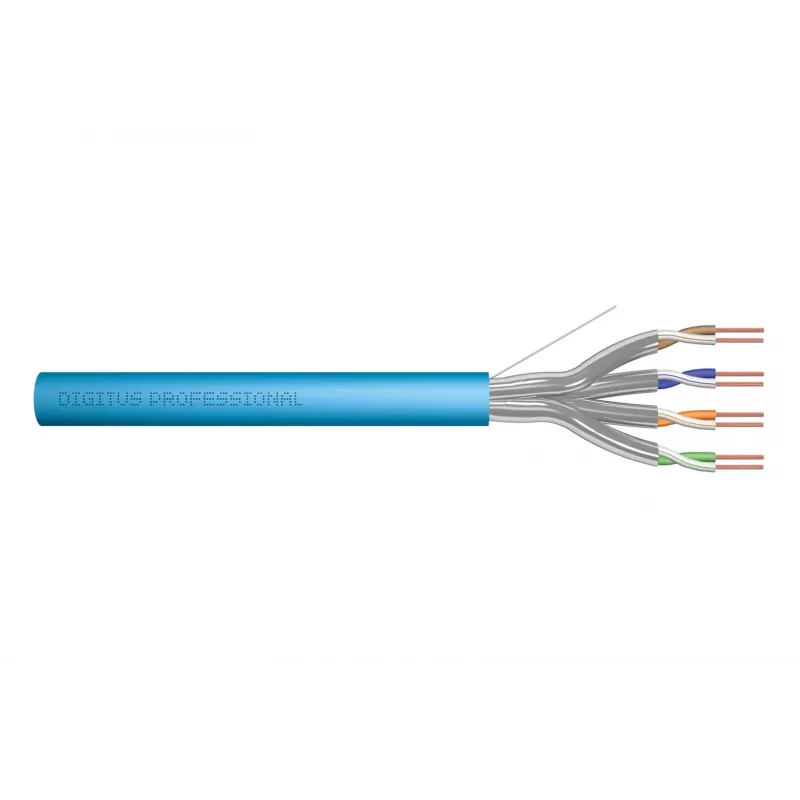

DIGITUS Cavo per installazione Cat.6A U/FTP B2ca LSOH 500m blu

Cat.6A installation cable engineered for high-performance structured cabling, delivering reliable 10 Gigabit Ethernet up to 500 MHz. This U/FTP cable features individually foil-shielded pairs to minimize alien crosstalk, ensuring signal integrity in dense network environments. The LSOH jacket and B2ca fire rating make it a safe choice for indoor installations where fire safety and low smoke emission are critical.

Advantages

The solid copper conductors (AWG 23/1) provide excellent conductivity and support for Power over Ethernet applications. The halogen-free jacket reduces toxic smoke in case of fire, complying with stringent European CPR regulations. The 500-meter reel allows for efficient installation with minimal waste.

Suitable for

• Data centers and server rooms requiring high-density cabling
• Office buildings and commercial premises with 10G network demands
• Educational and healthcare facilities with strict fire safety codes
• Structured cabling projects adhering to ISO/IEC 11801 and EN 50173

Key specifications

• Cable category: Cat.6A (Class EA)
• Shielding: U/FTP (foil shielded pairs)
• Conductor: Solid bare copper, AWG 23/1
• Jacket: LSOH (Low Smoke Zero Halogen)
• CPR fire rating: B2ca-s1a, d1, a1
• Length: 500 m on wooden spool
• Outer diameter: 7.3 mm
• Impedance: 100 Ohm
• Operating temperature: -20°C to +60°C
• Bending radius: 8 x OD during installation, 4 x OD in operation

Recommendations

For optimal performance, use with DIGITUS Cat.6A shielded connectors and patch panels. Ensure proper grounding of the foil shield.
