DIGITUS scatola FTTH per esterni, IP65 per 2x adattatore SC/SC o 2x LC/DC

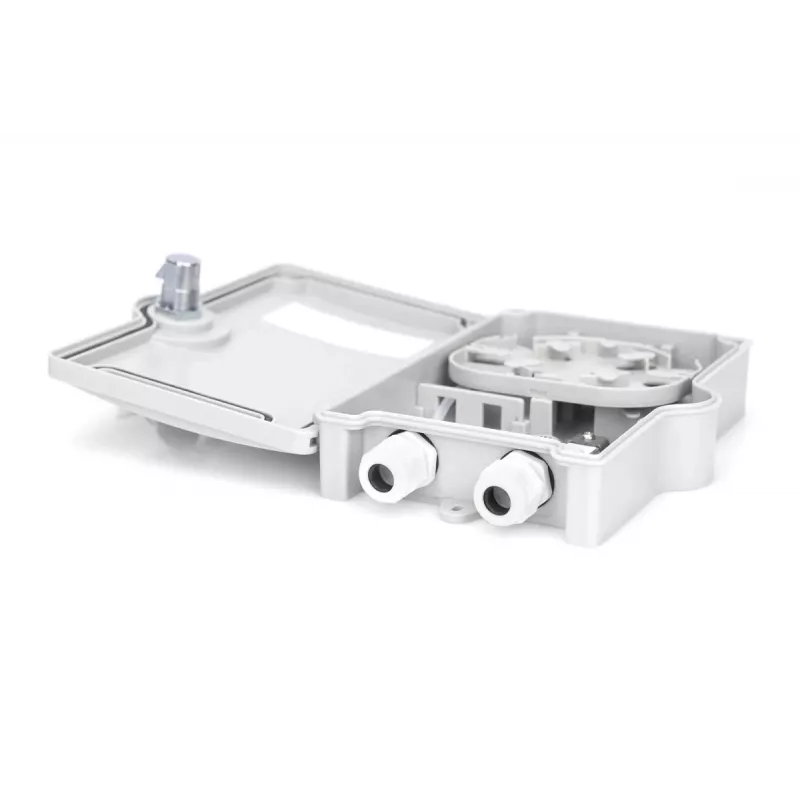

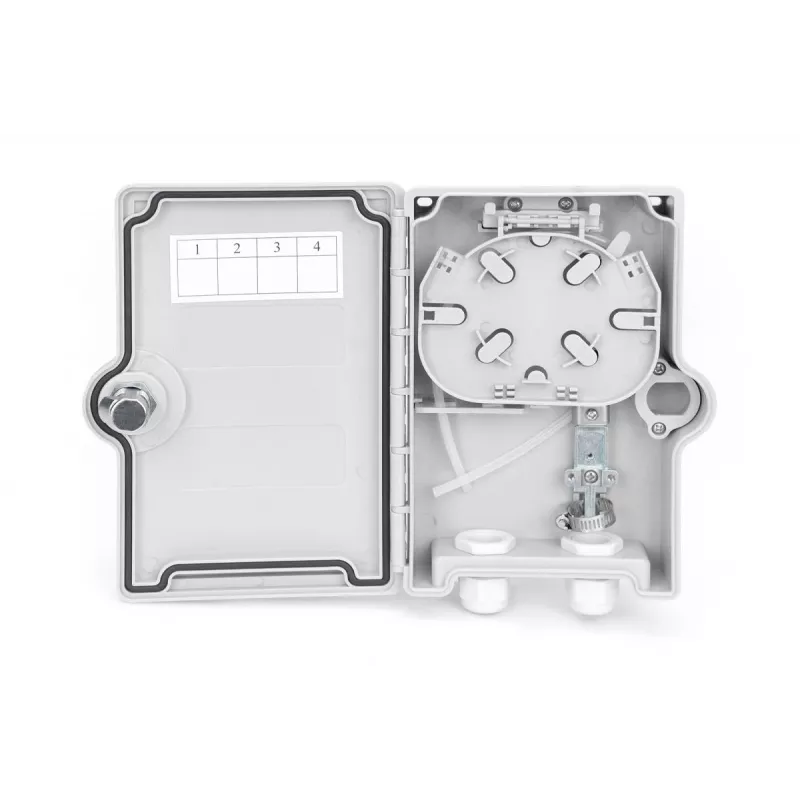

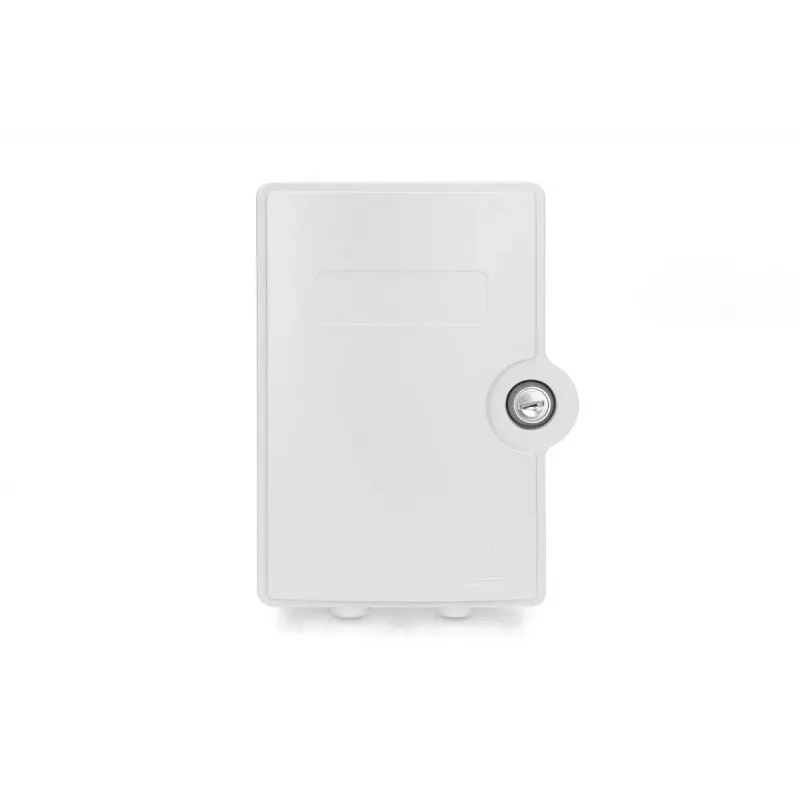

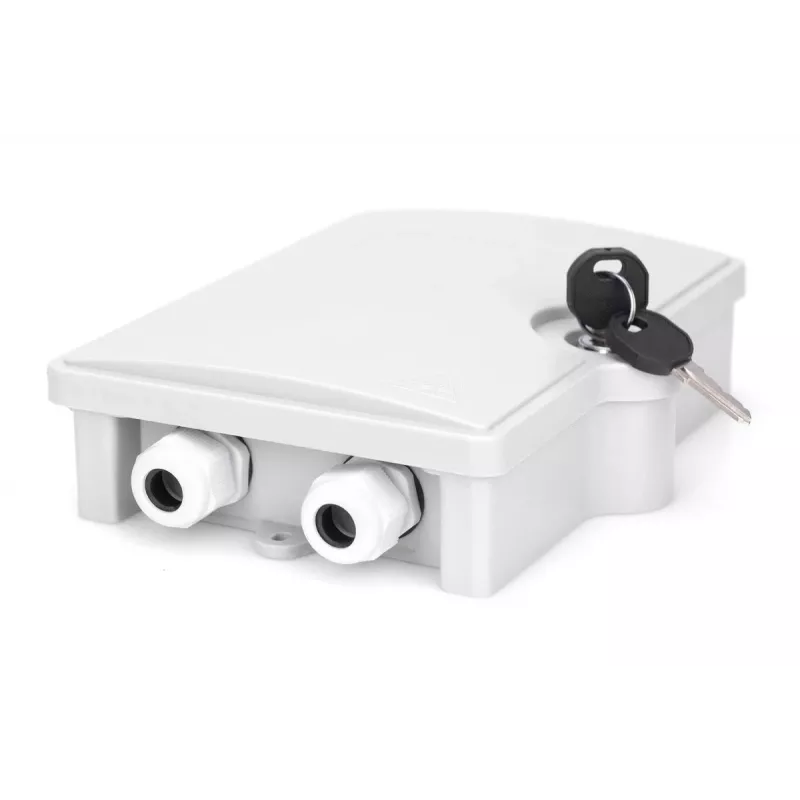

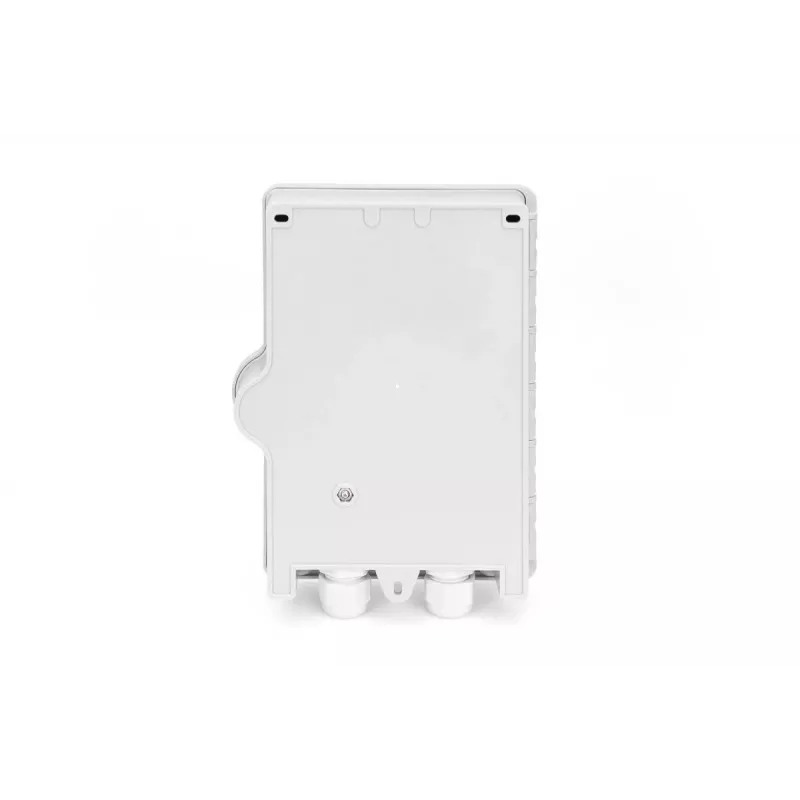

FTTH distribution box for outdoor installation with IP65 protection. Designed to accept either 2 SC simplex adapters or 2 LC duplex adapters and to accommodate up to 4 fiber splices. Compact enclosure with dimensions 215 x 150 x 50 mm suitable for wall or pole mounting in external fiber-optic networks.

Advantages

The outdoor-rated IP65 housing provides protection against dust and low-pressure water jets, ensuring reliable operation in external environments. Compatibility with both SC simplex and LC duplex adapters offers flexibility for different connector types. Space for up to four splices allows secure fiber management and easy service access.

Key specifications

• Protection rating: IP65
• Adapter capacity: 2 × SC simplex or 2 × LC duplex
• Splice capacity: up to 4 splices
• Dimensions: 215 × 150 × 50 mm
• Mounting: wall or pole (outdoor)

How to use

Mount the distribution box in the chosen outdoor location and secure it according to recommended mounting hardware. Route incoming and outgoing fiber cables through the appropriate entry points, terminate connectors on the adapter panel (SC or LC) as required, and perform up to four splices inside the splice tray. Close the enclosure, ensuring seals are properly seated to maintain IP65 protection.

Recommendations

Use suitable outdoor-rated cable glands and follow local installation standards. Verify seals after installation and perform regular inspections to ensure continued protection and fiber integrity.
