DIGITUS scheda di rete Gigabit Ethernet 2 porte, RJ45, PCI Express, chipset Intel I210-AT (DN-1013-2)

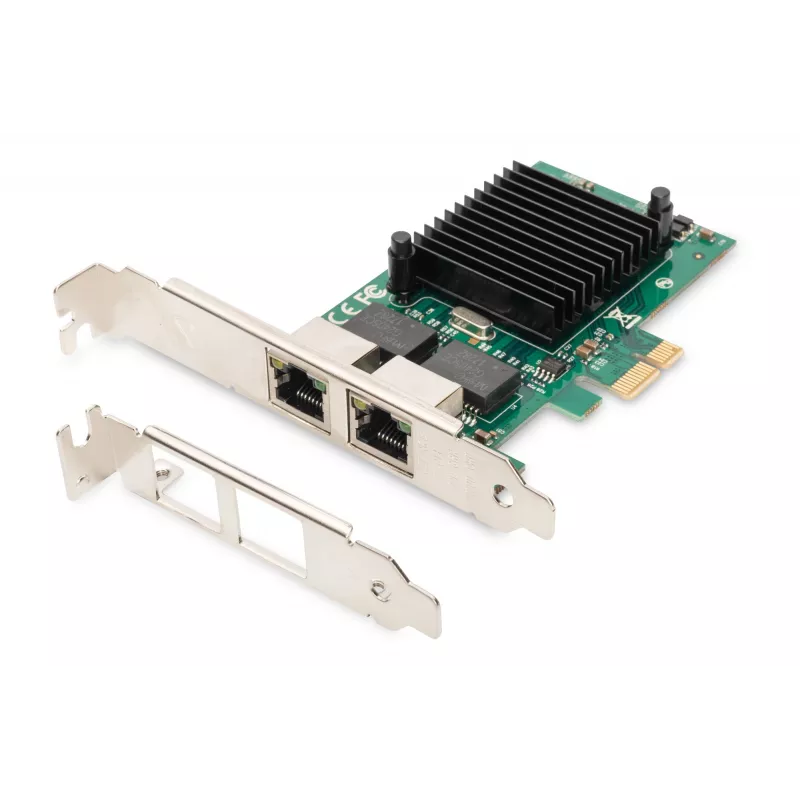

The DIGITUS DN-1013-2 is a high-performance 2-port Gigabit Ethernet network card designed for PCI Express x1 slots. Featuring the Intel I210-AT chipset, it delivers reliable and fast 10/100/1000 Mbps connectivity for desktop and server applications. The card includes both standard and low-profile brackets for flexible installation.

Advantages

Dual RJ45 ports double your network capacity without occupying additional slots. The Intel chipset ensures broad OS compatibility and advanced features like VLAN tagging, jumbo frames up to 9.5 KB, and Wake-on-LAN. Low power consumption and flow control support make it ideal for energy-efficient environments.

Suitable for

• Upgrading desktop PCs with additional Gigabit Ethernet ports
• Building or expanding small to medium business networks
• Server installations requiring reliable multi-port connectivity
• Virtualization environments with VMware ESX or Linux KVM

Key specifications

• Interface: PCI Express x1
• Ports: 2 x RJ45
• Data rate: 10/100/1000 Mbps
• Chipset: Intel I210-AT
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p
• Jumbo frame support: up to 9.5 KB
• VLAN support: IEEE 802.1Q
• Wake-on-LAN: Yes
• PXE Boot: Yes
• Flow control: IEEE 802.3x
• Checksum offloading: IP, TCP, UDP

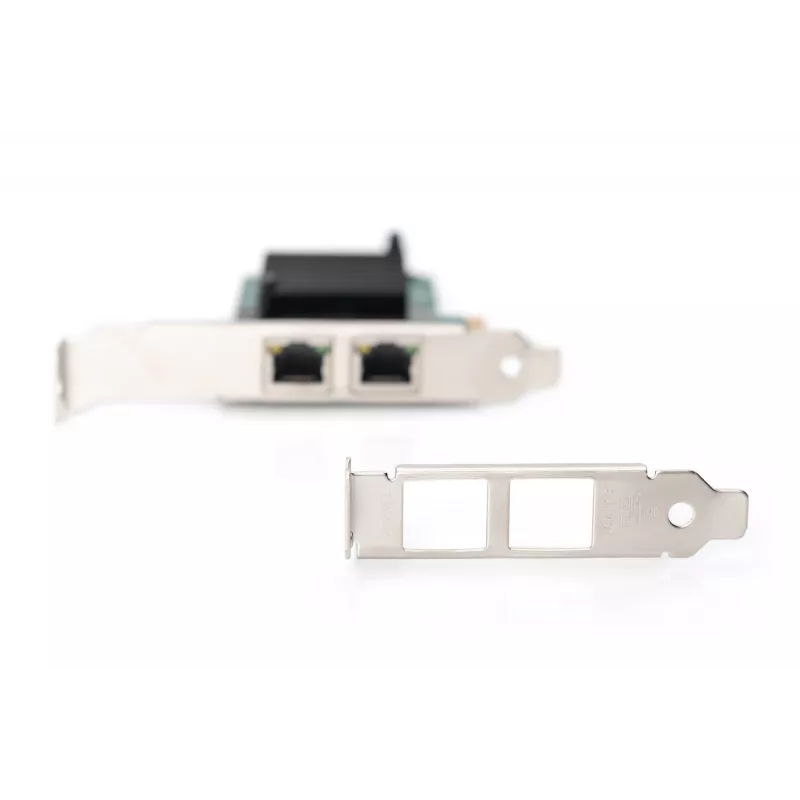

• Bracket: Standard and low-profile included
• LED indicators: Link/Activity per port
• Operating temperature: 0°C to 55°C

Recommendations

For optimal performance, ensure your motherboard has an available PCI Express x1 or larger slot. The card is compatible with Windows, Linux, FreeBSD, and VMware ESX. Use Category 5e or higher cabling for Gigabit speeds.
