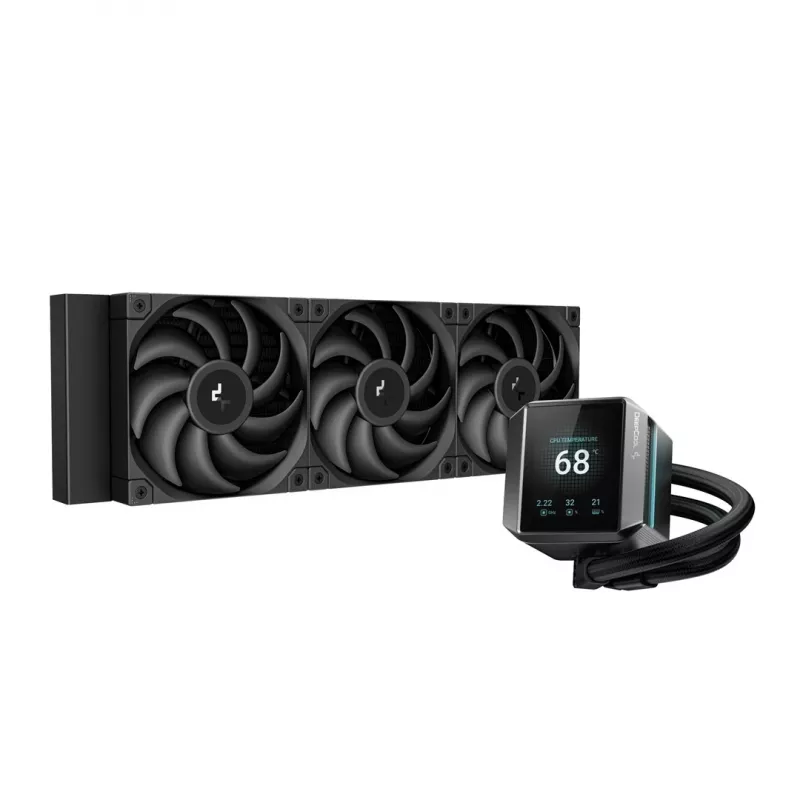

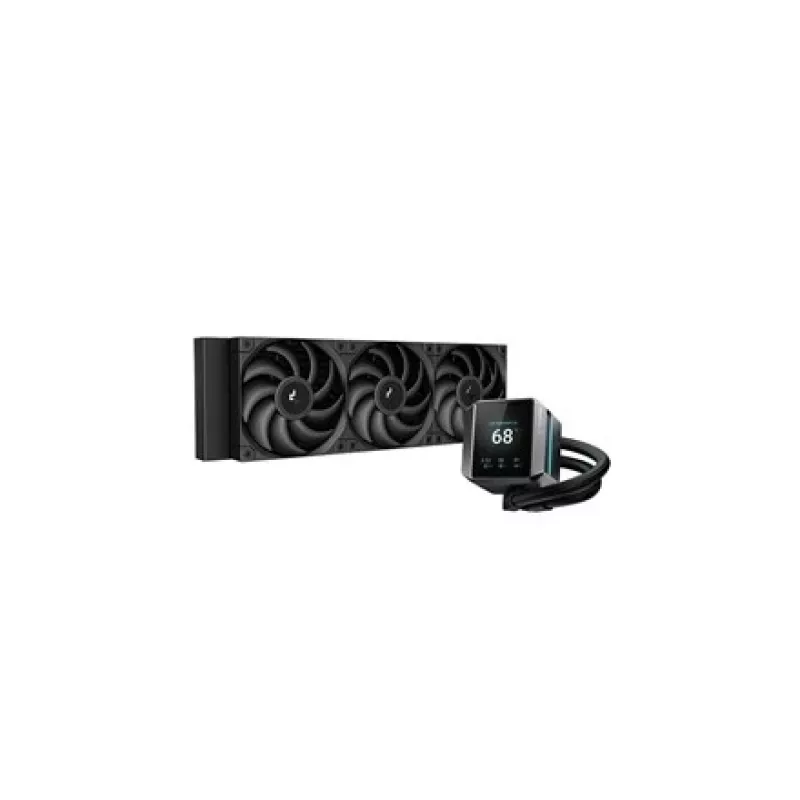

Dissipatore a liquido all-in-one DeepCool MYSTIQUE 360

The DeepCool MYSTIQUE 360 is an all-in-one liquid cooler equipped with a 2.8" TFT LCD that supports 640×480 resolution and 16.7M colors, a redesigned coldplate, an optimized 5th-generation pump and three high-performance 120 mm FT12 SE PWM fans. The unit features anti-leak technology and simplified mounting hardware for compatibility with modern Intel and AMD sockets. The black finish and customizable LCD make the MYSTIQUE 360 suitable for users who need reliable CPU cooling with visual customization.

Advantages

The 2.8" high-resolution LCD allows custom images and animated GIFs and auto-orients via built-in gyroscopic sensors. The 5th-generation pump uses a 3-phase, 6-slot, 4-pole motor that reaches up to 3400 RPM while operating under 21 dB(A). The redesigned coldplate has 0.1 mm intensive flow channels and an optimized layout over CPU hotspots for improved heat transfer. Included FT12 SE fans use FDB bearings and PBT construction for durable, high-pressure airflow. DeepCool's patented Anti-Leak Technology regulates internal pressure to reduce the risk of leaks and extend service life.

Suitable for

• High-performance gaming PCs requiring efficient CPU cooling
• Workstations and content-creation systems with modern Intel or AMD sockets
• Users who want a customizable LCD display on their cooler

Key specifications

• Type: All-in-one liquid cooler
• LCD: 2.8" TFT, 640×480, 16.7M colors, auto-orientation

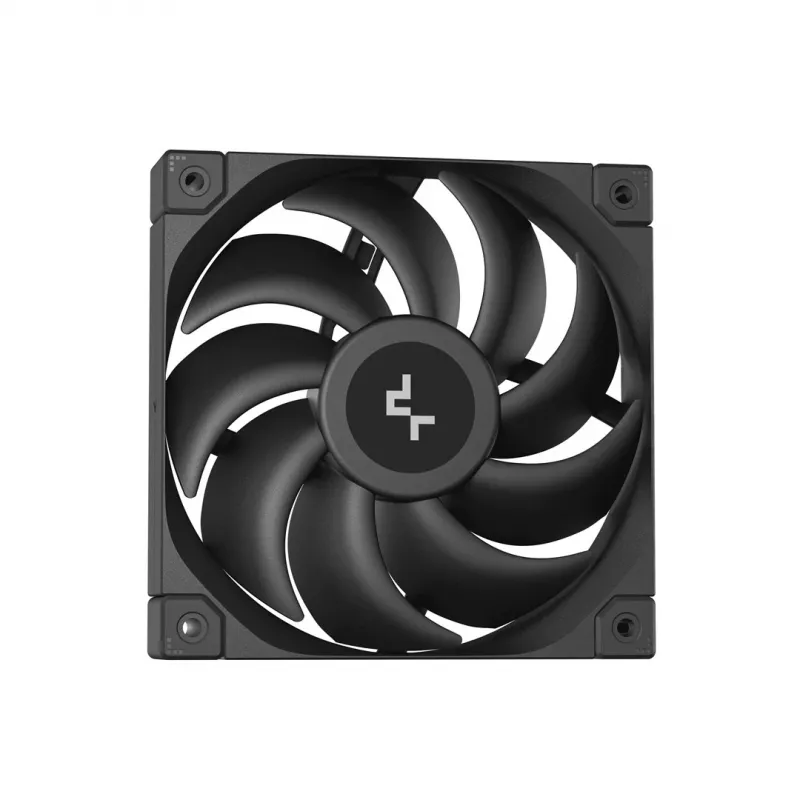

• Fans: 3 × 120 mm FT12 SE PWM, Fluid Dynamic Bearing (FDB)
• Pump: 5th-generation, up to 3400 RPM, 3-phase 6-slot 4-pole motor

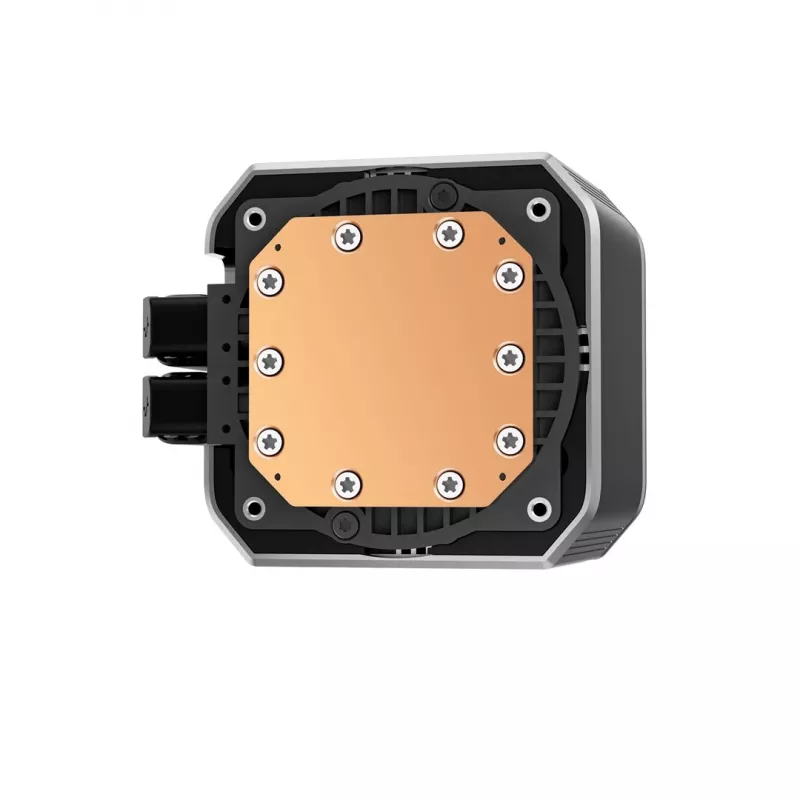

• Coldplate: redesigned with 0.1 mm intensive flow channels
• Anti-Leak Technology: patented internal pressure regulation
• Supported sockets: LGA 1150/1151/1155/1200/1700, AM4, AM5
• Fan diameter: 120 mm
• Product colour: Black
• Weight: 1.847 kg

How to use

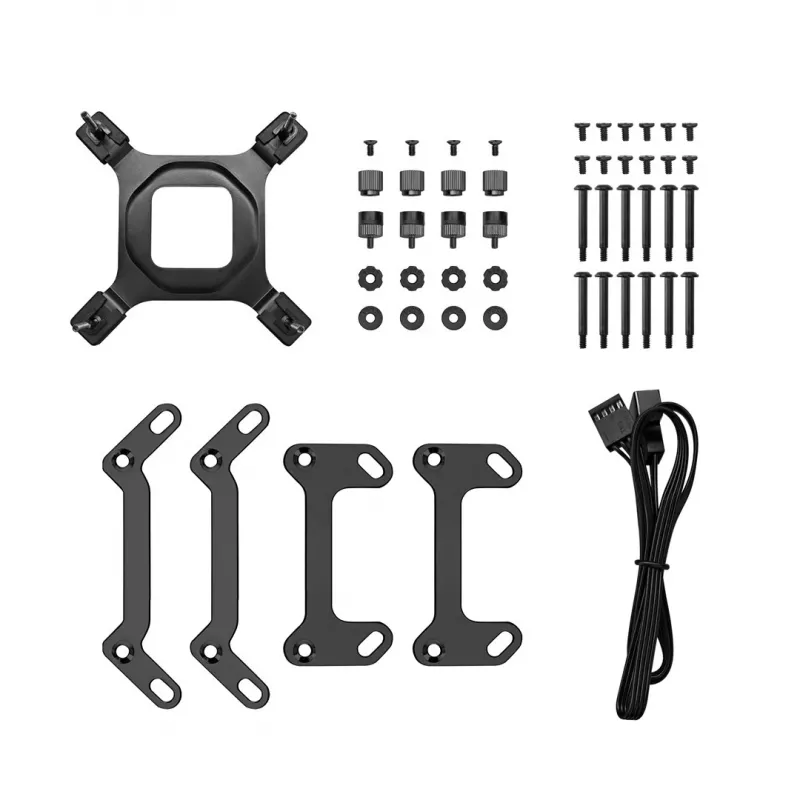

Install the MYSTIQUE 360 using the included mounting hardware following the platform-specific instructions for Intel or AMD sockets to ensure even contact and pressure on the CPU. Connect the pump and fans to the appropriate motherboard headers and, if available, the ARGB/RGB controller for synchronized lighting. Use the DeepCreative application to upload images or animated GIFs to the 2.8" LCD, monitor real-time system statistics and configure thermal color warnings or RGB behavior.

Recommendations

Place the radiator where airflow through the case is optimal and ensure clearance for the three 120 mm fans. Maintain regular case airflow and check mounting torque to avoid uneven pressure. Keep the DeepCreative software updated to receive feature and compatibility improvements.
