Dissipatore ad aria Thermaltake SWAFAN EX14 RGB Ventola di raffreddamento per PC

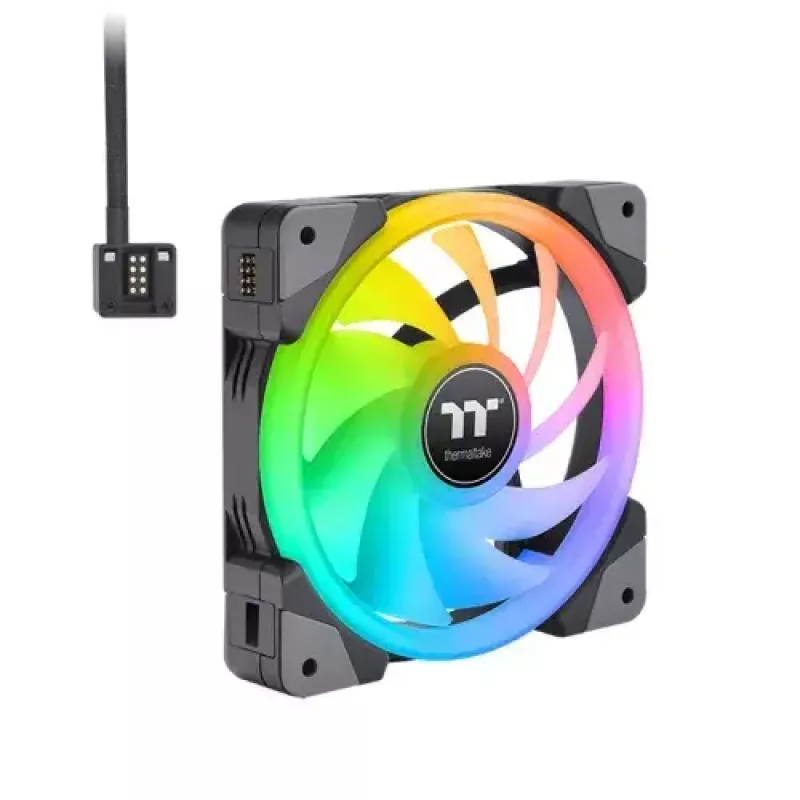

The Thermaltake SWAFAN EX14 RGB PC Cooling Fan is a 140 mm air cooler designed for chassis, radiator and air-cooler installations. The fan uses a hydraulic bearing and spins between 500 and 2000 RPM to deliver efficient airflow and static pressure (2.73–3.17 mmH2O). A magnetic quick-connect system allows up to three fans to be daisy-chained on a single 12 V cable, simplifying installation and cable routing while supporting dual LED rings for RGB lighting control.

Advantages

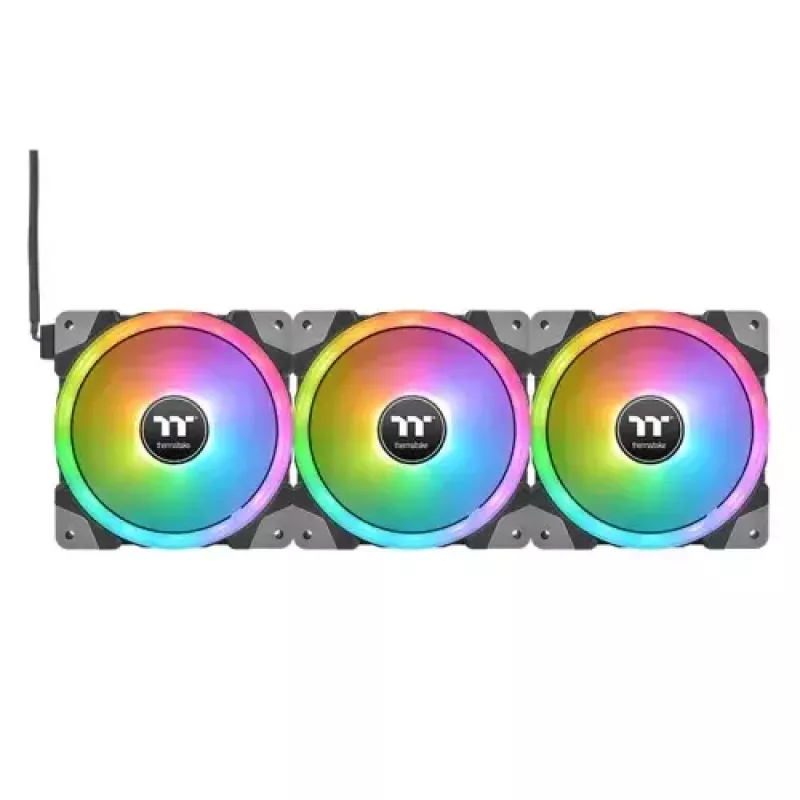

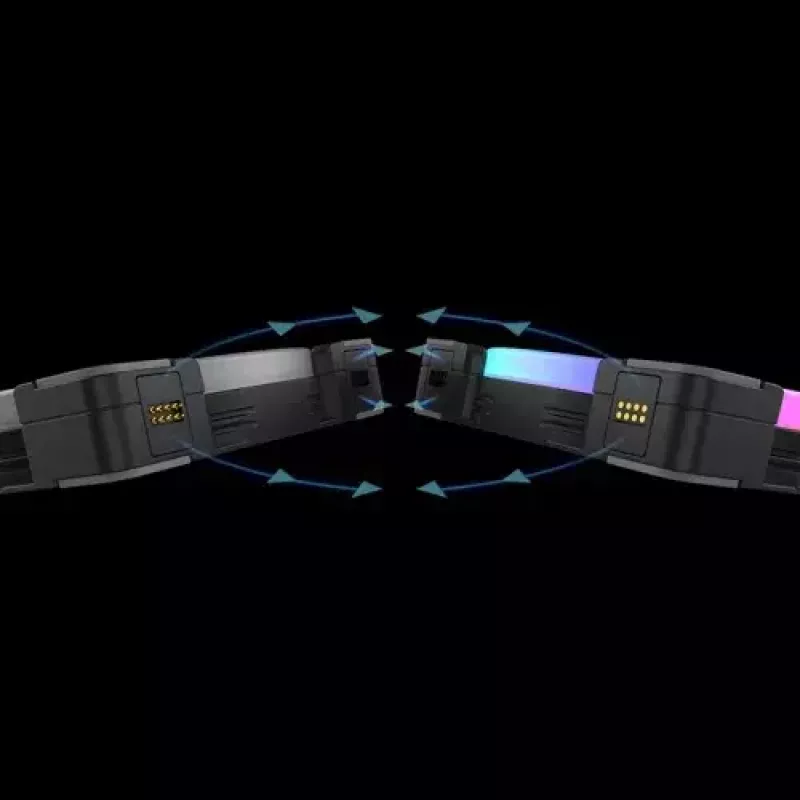

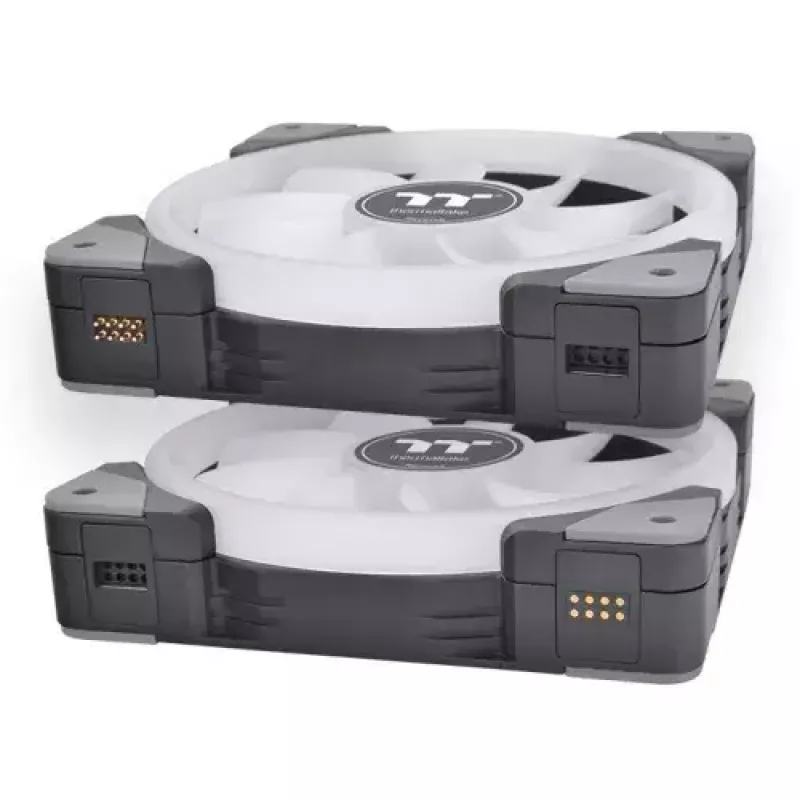

The magnetic force quick-connect design enables fast, tool-free connection and alignment of fan frames, reducing assembly time and improving cable management by powering up to three fans from one cable. The fan delivers high static pressure suitable for use on radiators and obstructed airflow environments and includes dual LED rings with 20 LEDs each for extensive RGB effects via TT RGB Plus 2.0. The hydraulic bearing provides improved durability and quieter operation.

Suitable for

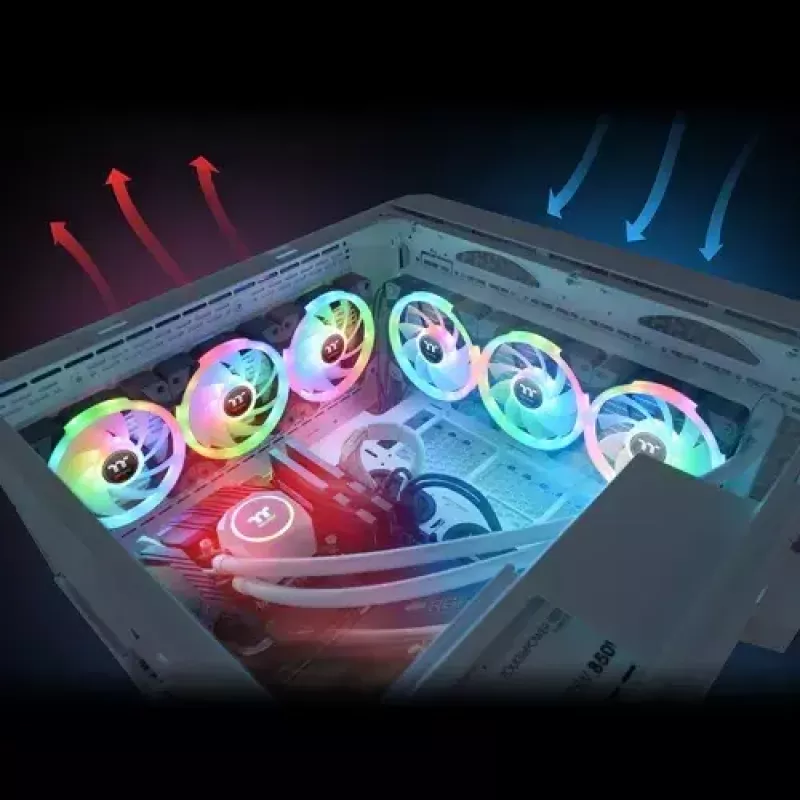

• Chassis cooling where tidy cable management is important
• Radiators and thick air coolers requiring higher static pressure
• Systems where synchronized RGB lighting is desired

Key specifications

• Type: Air cooler
• Fan diameter: 140 mm
• Speed range: 500–2000 RPM
• Static pressure: 2.73–3.17 mmH2O
• Bearing: Hydraulic
• Colour: Black
• MPN: CL-F144-PL14SW-A
• EAN: 4713227535601

How to use

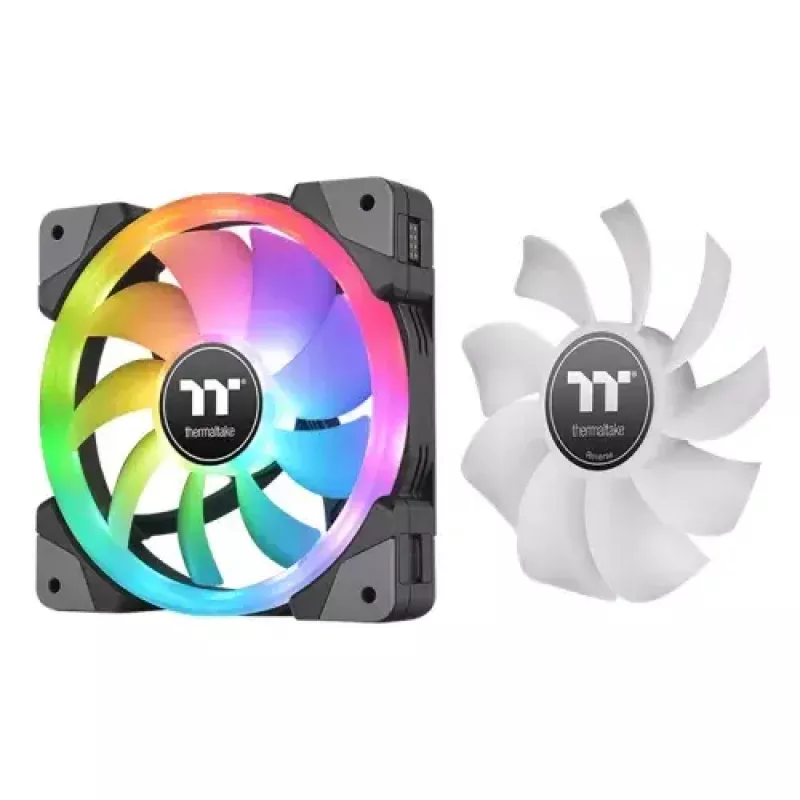

Place the SWAFAN EX14 in the desired mounting position on the chassis, radiator or cooler and align the magnetic connectors. The magnetic 12 V cable will draw adjacent fan frames together and supply power and RGB signal when connected. Multiple fans can be daisy-chained (up to three per cable) by attaching them side by side. For maintenance, the swappable fan blades can be removed for cleaning; blades may be rinsed with water if fully dried afterwards. Apply the included bearing lubricant if required after cleaning.

Recommendations

Use the TT RGB Plus 2.0 software to configure lighting and synchronize with other TT RGB PLUS compatible products. When installing on dense radiators or behind filters, verify fan orientation for optimal airflow and ensure the magnetic connectors are firmly engaged for reliable power and lighting control.
