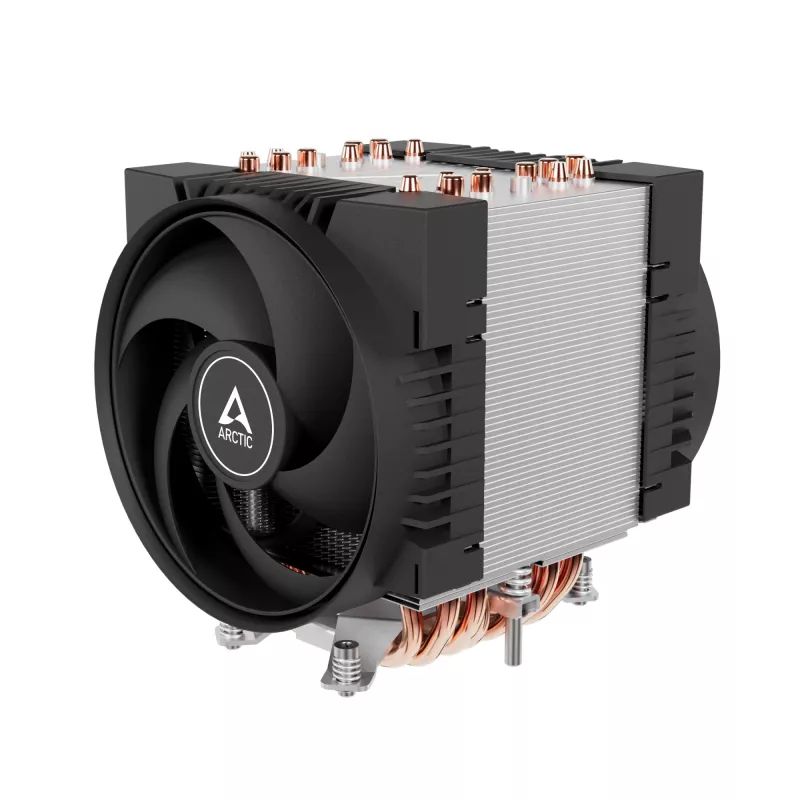

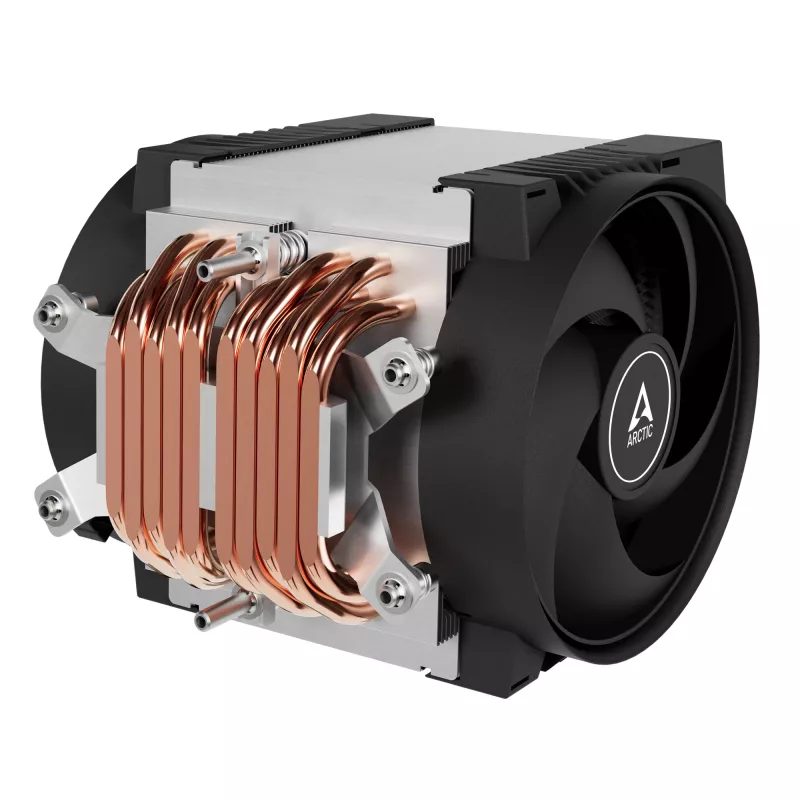

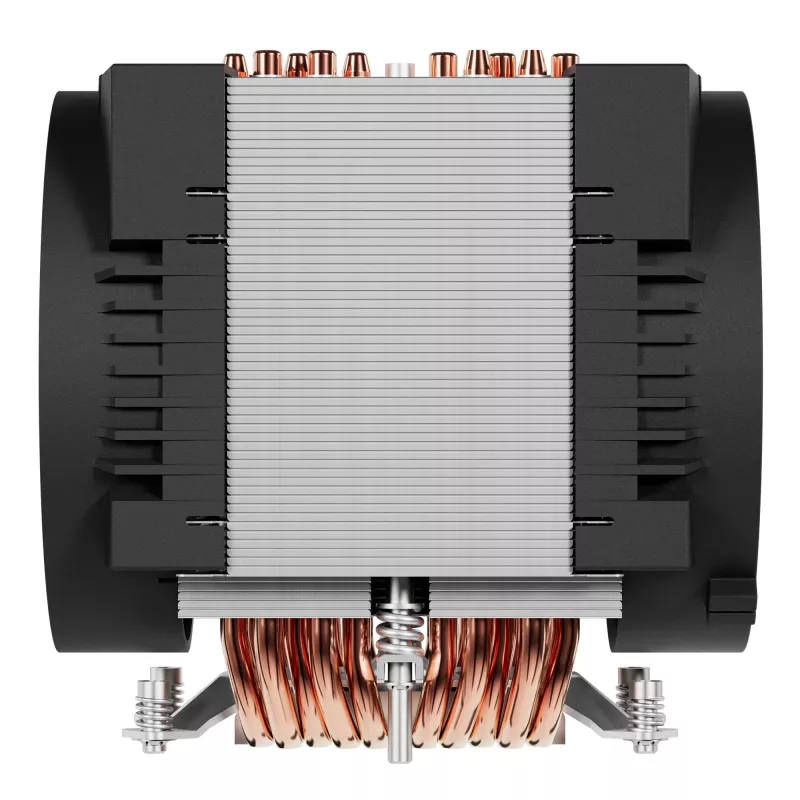

Arctic Freezer 4U-SP5 ACFRE00158A dissipatore per CPU per SP5

The Arctic Freezer 4U-SP5 is a 4U server CPU cooler designed specifically for AMD EPYC processors and supports the SP5 socket. It features a maximum power consumption of only 6.96 W and efficiently cools even the most powerful AMD processors with 128 cores and 360W TDP.

Key features

• Server cooler specifically designed for AMD SP5
• Supports AMD EPYC processors
• Maximum power consumption: 6.96 W
• Cooling capacity: up to 128 cores and 360W TDP
• Designed for continuous operation
• Both fans feature dual ball bearings for 24/7 operation
• RAM compatibility: 53 mm RAM module height
• Push-Pull configuration with PWM fans
• Includes MX-6 0.8g thermal paste
• New P-series fans for better results: higher static pressure, extended RPM range, lower power consumption, less vibration, longer service life
• PWM for synchronous fan control

Specifications

• Brand: Arctic
• MPN: ACFRE00158A
• Heat pipe type: Direct Touch 8x 6 mm
• Heatsink material: Aluminium
• Number of fins: 62
• Thermal paste: MX-6 (0.8g)
• Fans: 2x 120 mm PWM
• Fan speed: 300-3300 RPM
• Static pressure: 4.35 mmH2O
• Airflow: 81.04 cfm / 137.69 m³/h
• Connector: 4-Pin
• Cable length: 200 mm
• Bearing: Dual ball bearing
• Noise level: 45.3 dBA
• Voltage/current: 12V DC / 0.29A
• Starting voltage: 3.1V DC
• Dimensions: 124mm x 147mm x 145mm
• Weight: 1512g
• Colour: Black / Light grey
• Compatibility: AMD SP5
• Operating temperature: 0 - 40 °C
• Package type: Box
