DIVERSE prolunga solare 6mm², connettore maschio-femmina 0,5m, nero

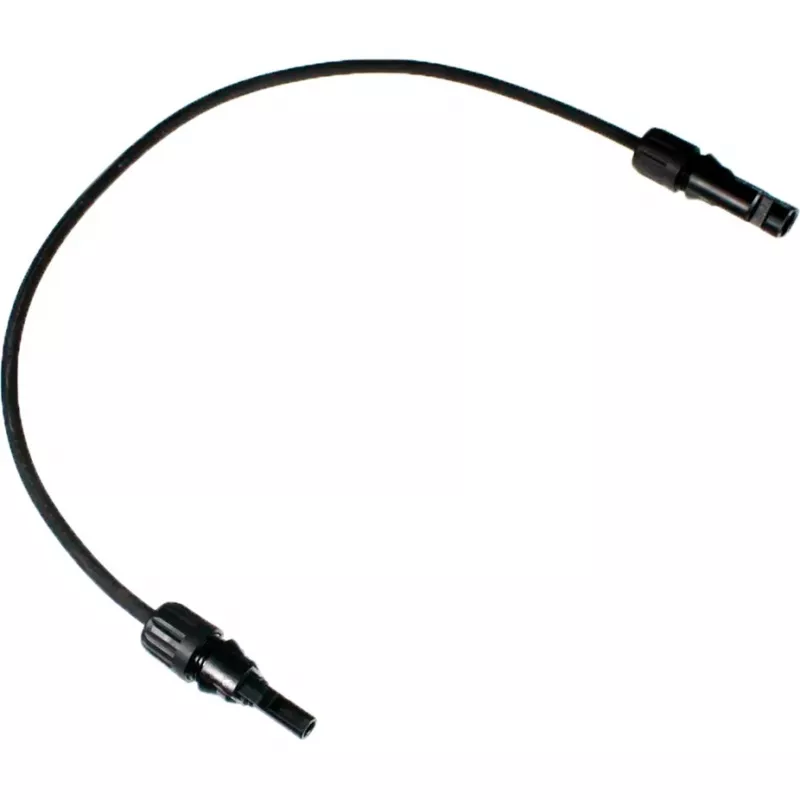

The DIVERSE Solar Extension Cable 6mm² is a high-quality, professional-grade cable designed for photovoltaic systems. With a length of 0.5 meters and MC4 connectors (male to female), it ensures reliable and efficient interconnection between solar panels or from panels to inverters. The cable features a 6mm² tinned copper conductor, XLPE insulation, and a UV-resistant, halogen-free jacket, making it durable for outdoor use. Rated for 1000V DC and 50A, it meets TÜV and CE standards, ensuring safety and performance.

Advantages

This extension cable offers excellent conductivity and low resistance thanks to its tinned copper conductor. The UV-resistant and halogen-free jacket provides long-lasting protection against environmental factors, while the IP67-rated connectors ensure a weatherproof connection. Its flame-retardant properties add an extra layer of safety.

Suitable for

• Extending the reach between solar panels in a photovoltaic array
• Connecting solar panels to combiner boxes or inverters
• Use in residential, commercial, or industrial solar installations

Key specifications

• Cable Type: Solar Extension Cable
• Conductor Cross-section: 6 mm²
• Cable Length: 0.5 m

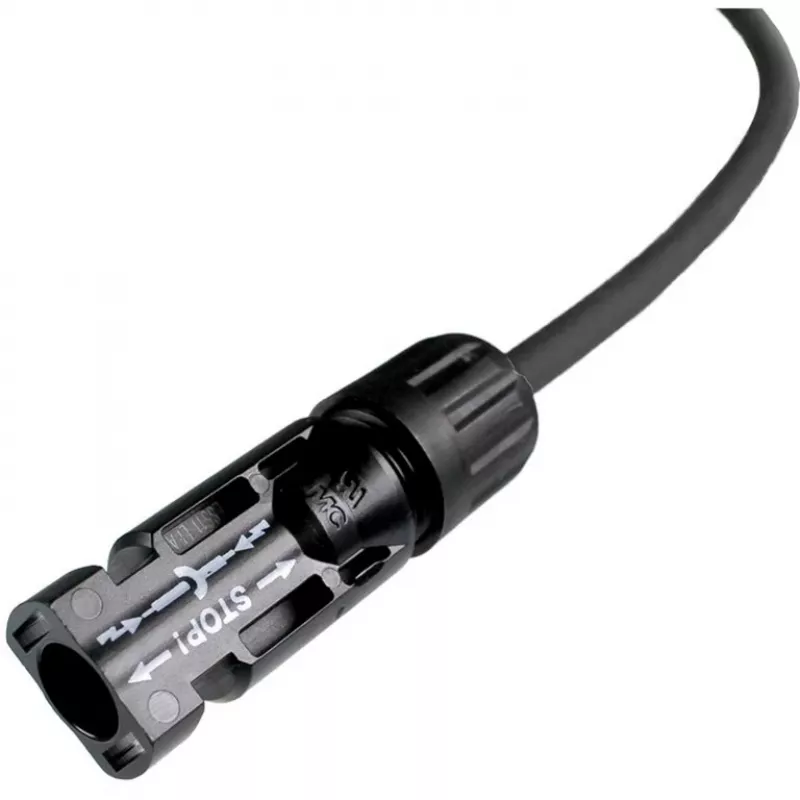

• Connector 1: MC4 Male
• Connector 2: MC4 Female
• Connector Material: PPO
• Contact Material: Tinned Copper
• Color: Black
• Rated Voltage: 1000 V DC
• Rated Current: 50 A
• Insulation Material: XLPE
• Jacket Material: UV-resistant, Halogen-free XLPE
• Temperature Range: -40°C to +90°C
• UV Resistance: Yes
• Weather Resistance: IP67 (connectors)
• Certifications: TÜV, CE
• Conductor Material: Tinned Copper
• Number of Cores: 1 (Single Core)
• Application: Photovoltaic Systems, Solar Panel Interconnection
• Fire Performance: Flame Retardant, Halogen-free

Recommendations

For optimal performance, ensure connectors are fully mated and protected from moisture. This cable is ideal for extending existing solar panel strings or creating custom-length connections in your PV system.
