Docking station universale i-tec 6x 4K/60Hz + Power Delivery 140W

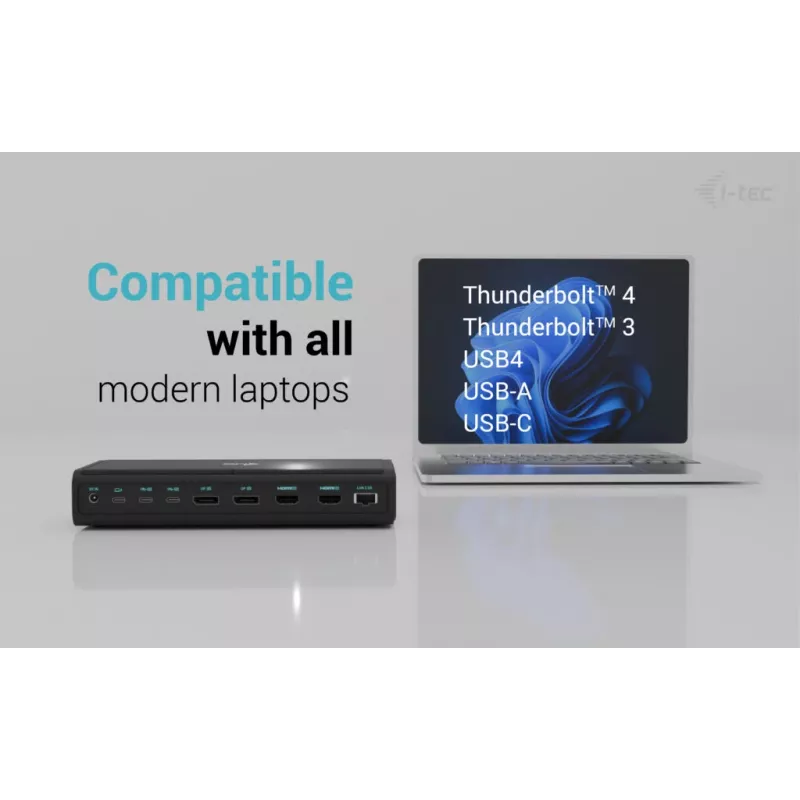

The docking station provides high-performance connectivity for workstations and laptops, supporting up to six external monitors at 4K/60Hz or two monitors simultaneously at 8K. It includes multiple video outputs, fast USB ports, a 2.5 Gbps Ethernet port and a USB-C fast charging port (up to 30 W) for smartphones and tablets. The dock works with most laptops regardless of brand, model or operating system and can be mounted behind a VESA-compatible monitor using a VESA mount.

Advantages

This dock supports a large number of external displays without compromising resolution or refresh rate, and offers flexible video output options (HDMI, DisplayPort, USB-C MFDP). It provides fast data transfer through USB-C 10 Gbps ports and USB-A 3.1 Gen 1 ports, a high-speed 2.5 Gbps LAN connection, and a dedicated USB-C charging port for mobile devices. The unit also supports laptop charging up to 140 W when used with compatible USB-C Power Delivery standards and includes an on/off button and VESA mount compatibility for discreet installation.

Key specifications

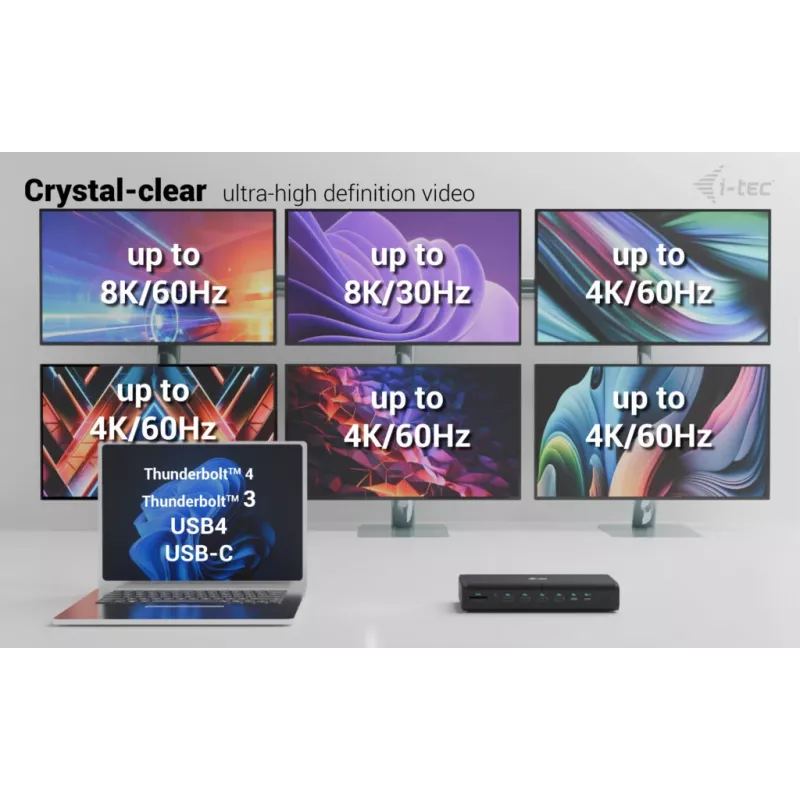

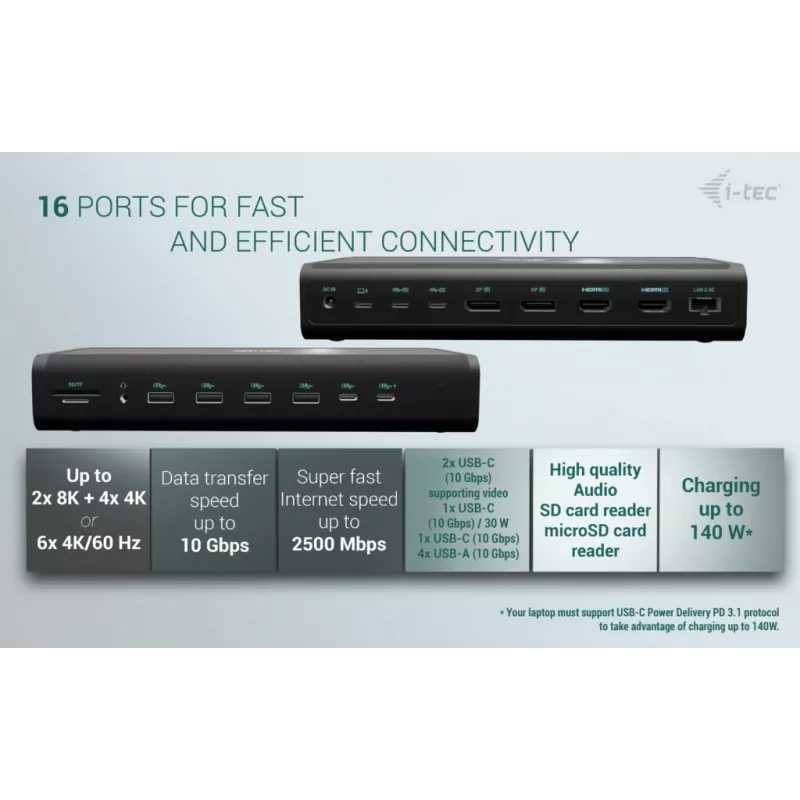

• Monitor support: up to 6 external monitors (2x 8K or 6x 4K/60Hz)

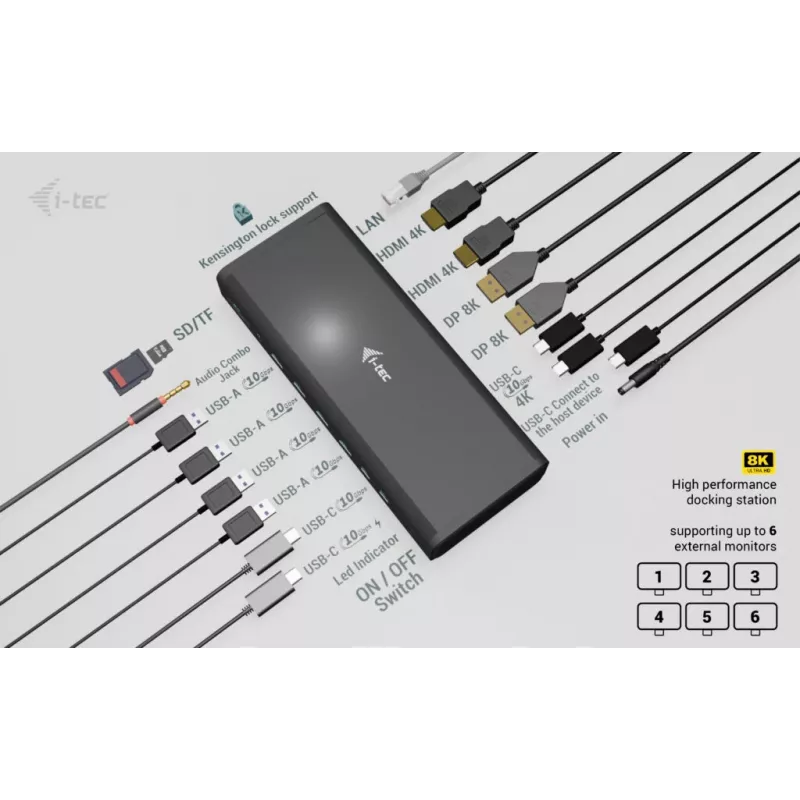

• Video ports: 2x HDMI, 2x DisplayPort, 2x USB-C MFDP (video or 10 Gbps data)

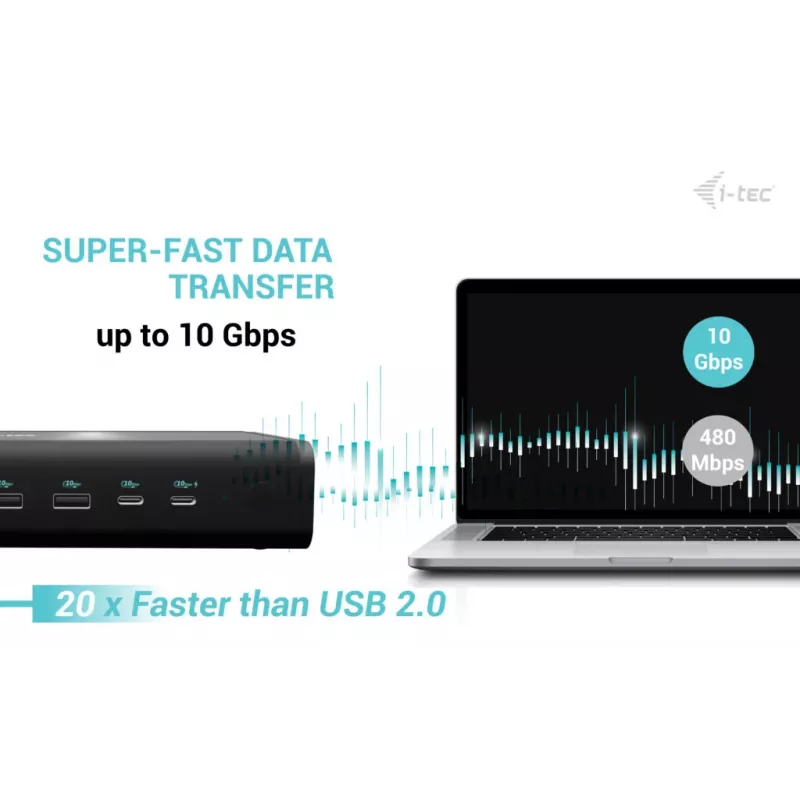

• USB ports: 2x USB-C (10 Gbps, one with up to 30 W charging), 4x USB-A 3.1 Gen 1
• LAN: 2.5 Gbps (10/100/1000/2500 Mbit)
• Audio: 3.5 mm audio/microphone jack
• Memory card: 1x SD / microSD slot

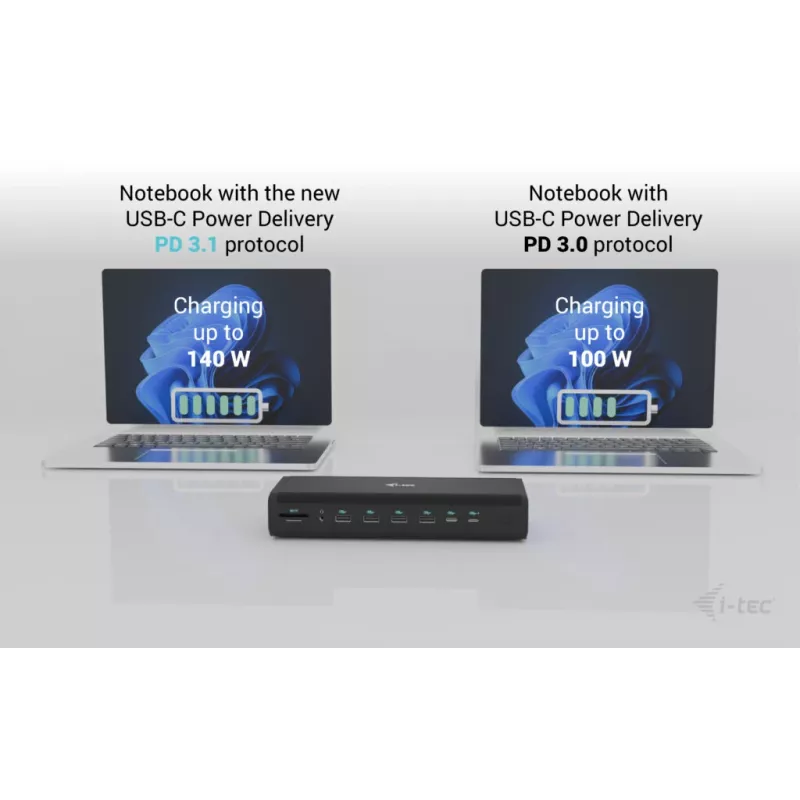

• Laptop charging: up to 140 W (PD 3.1) or up to 100 W (PD 3.0)

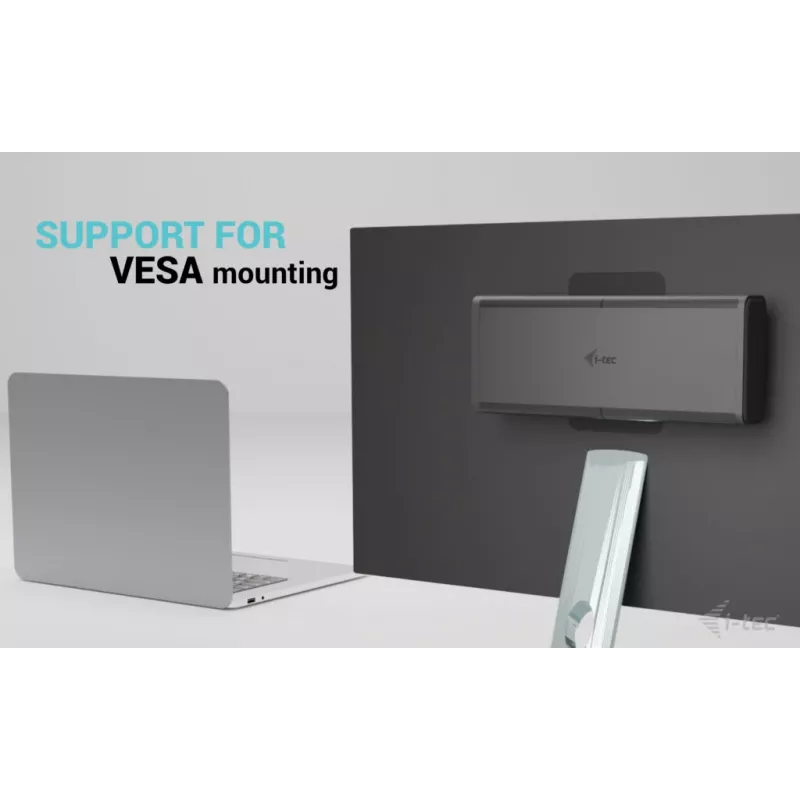

• Additional: docking station on/off button; supports installation behind a VESA-compatible monitor

How to use

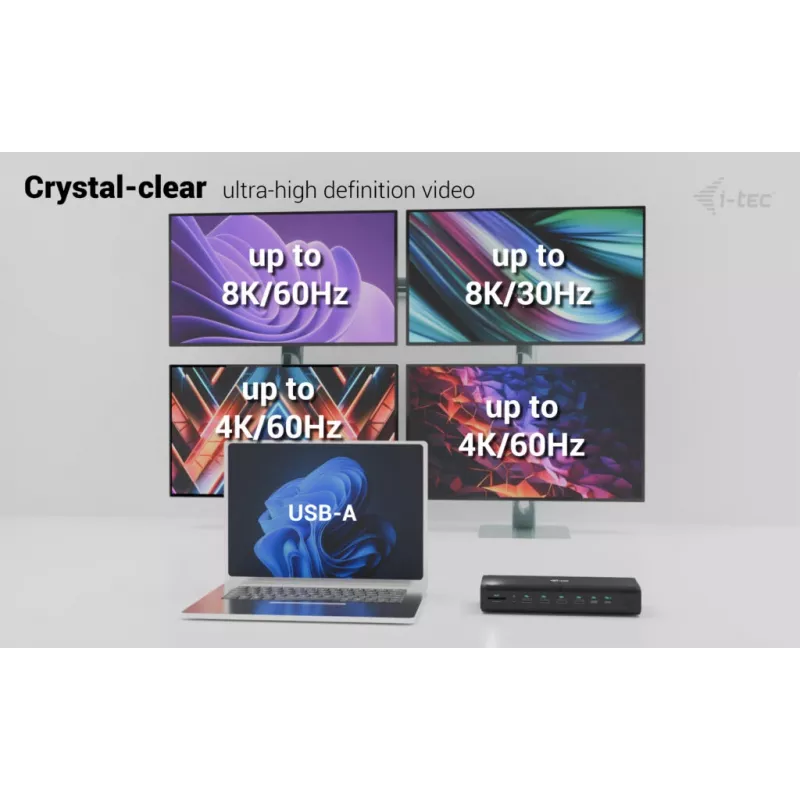

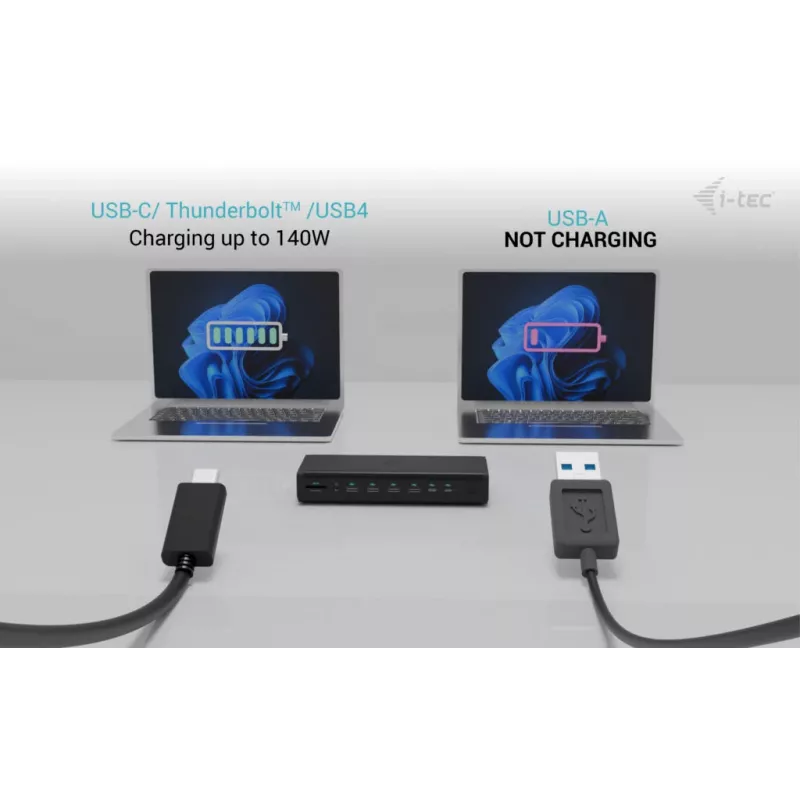

Connect the dock to your laptop using any available USB port. For full multi-monitor support and laptop charging, connect via a USB-C port that supports DisplayPort Alt Mode and Power Delivery; when using USB-A, display support is limited to four monitors and laptop/tablet charging will not be available. Attach monitors to the HDMI, DisplayPort or USB-C MFDP outputs as required, connect peripherals to the USB ports, insert SD/microSD cards as needed, and plug network cable into the 2.5 Gbps LAN port. If desired, mount the dock behind a VESA-compatible monitor using a VESA bracket and use the on/off button to control power to the dock.

Recommendations

For maximum performance use a laptop with USB-C PD 3.1 and USB-C ports that support DisplayPort Alt Mode. If your laptop only has USB-A, expect support for up to four external monitors and no laptop charging from the dock.
