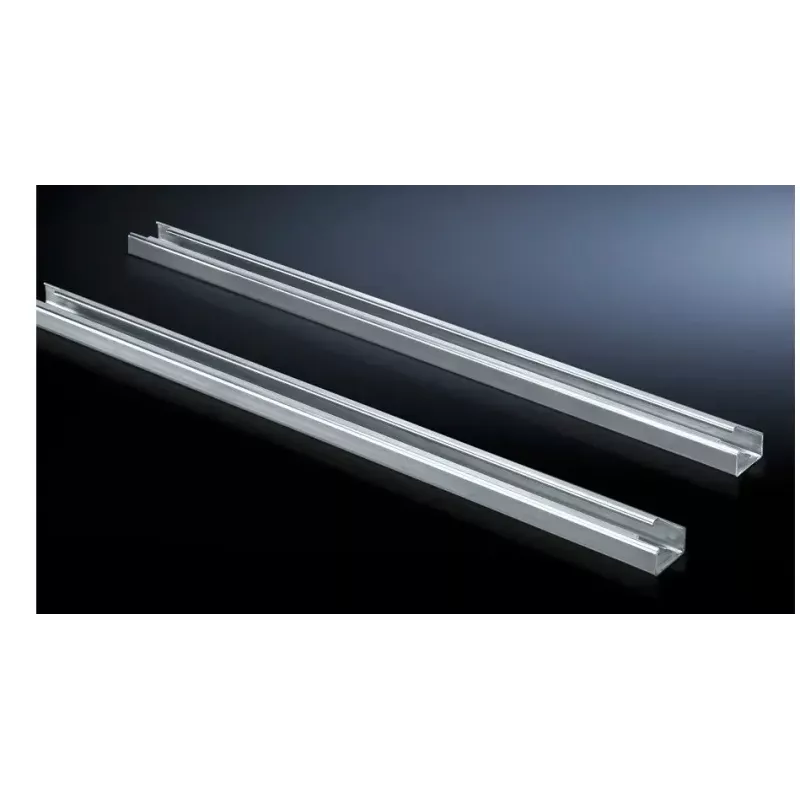

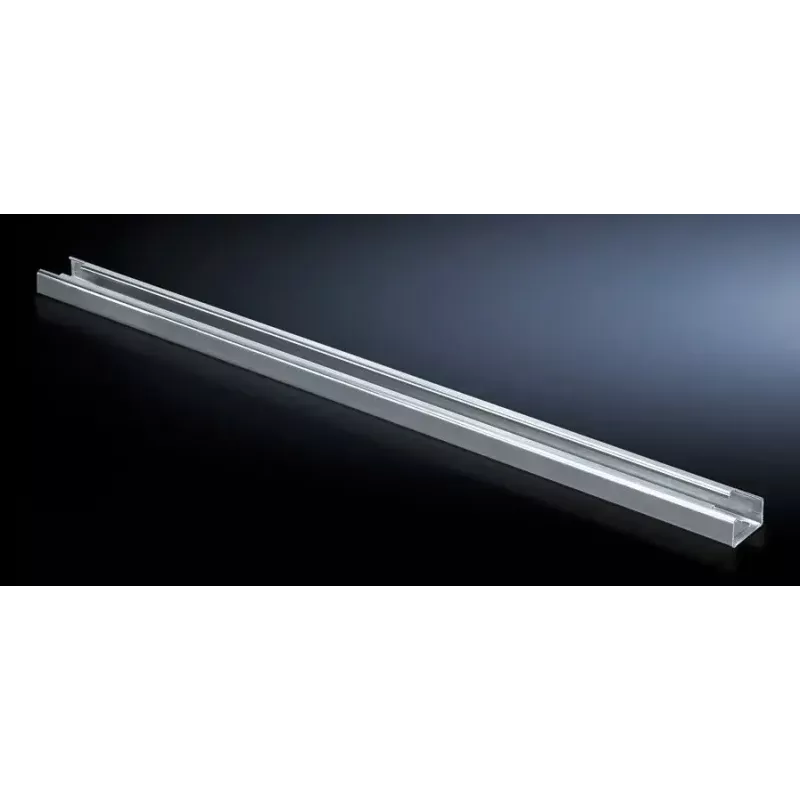

Supporto Rittal SV 9683.312 acciaio grigio 2 pezzi 5,56 kg

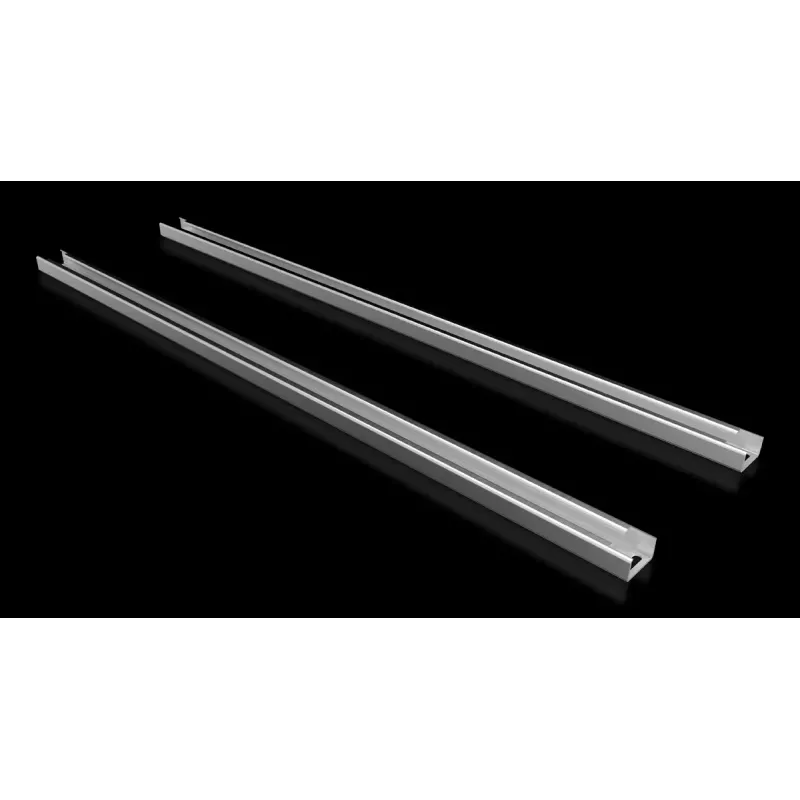

The Rittal SV 9683.312 support bracket is a steel mounting bracket with a grey finish, supplied as a pack of two and designed for use in electrical distribution enclosures. It is intended for the configuration and secure mounting of air circuit-breakers (ACB) and related components inside compartments, providing stable mechanical support for switchgear assemblies.

Advantages

Made from steel with a grey protective finish, the bracket offers robust mechanical strength and corrosion resistance appropriate for indoor electrical enclosures. Supplied as a pair, the two-piece set simplifies installation of ACBs and other heavy components by providing matched support points. The product corresponds to typical industrial mounting requirements and is compatible with standard switchgear arrangements.

Suitable for

Key specifications

How to use

Position the support brackets inside the enclosure at the required mounting points for the air circuit-breaker according to the cabinet layout and applicable standards. Secure each bracket with appropriate fasteners compatible with the enclosure and the breaker mounting holes. Verify alignment and mechanical stability before installing the ACB and make any necessary adjustments to ensure safe, load-bearing support.

Recommendations

Use corrosion-resistant fasteners sized for the enclosure and breaker; follow local electrical installation codes and the ACB manufacturer’s mounting instructions. Inspect mounting points periodically for loosening or corrosion.
