Docking station USB DeLOCK Dual DisplayPort 4K USB 3.2 LAN audio

This Delock USB docking station connects to a computer via USB-C or USB Type-A and expands connectivity with dual DisplayPort outputs, six USB 3.2 Gen 1 Type-A ports, audio in/out and a Gigabit Ethernet port. It supports Ultra HD 4K at 60 Hz and uses a DisplayLink graphics chipset to enable mirrored and extended displays on Windows and macOS without requiring DisplayPort Alternate Mode.

Advantages

The docking station delivers 4K 60 Hz output on one or both DisplayPort outputs, provides six high-speed USB 3.2 Gen 1 ports for peripherals, and includes a Gigabit LAN port for wired network connections. Integrated audio connectors allow microphone and speaker connections, and the DisplayLink chipset enables extended and mirrored desktop modes across supported operating systems.

Suitable for

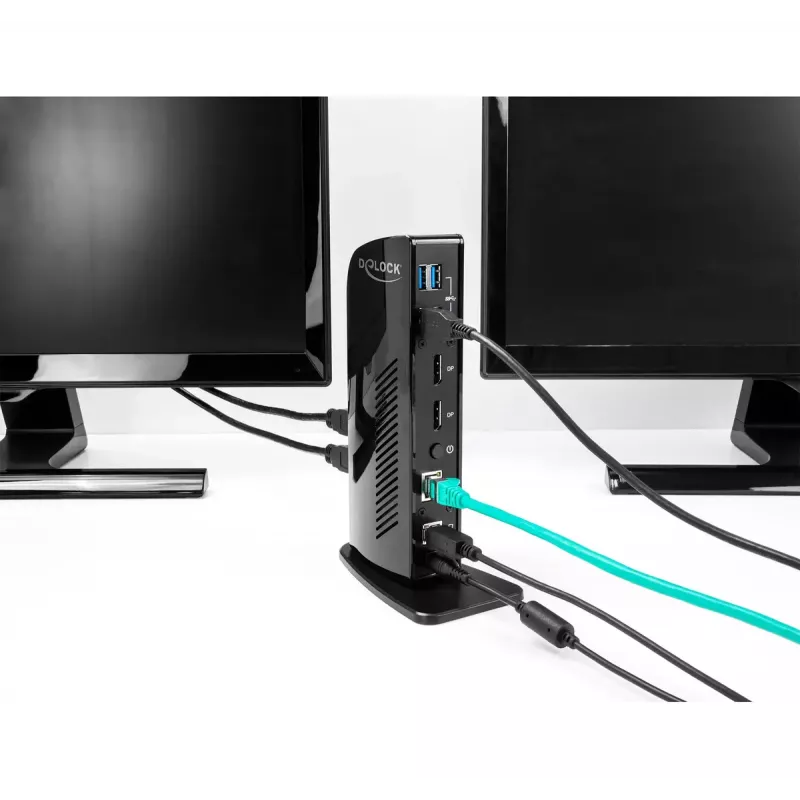

• Office workstations requiring multiple external monitors
• Home offices and remote work setups with wired network needs
• Users who need multiple USB peripherals (keyboard, mouse, storage)
• Mac and Windows systems needing extended or mirrored displays without DP Alt Mode

Key specifications

• Brand: DELOCK, model MPN 87728, EAN 4043619877287

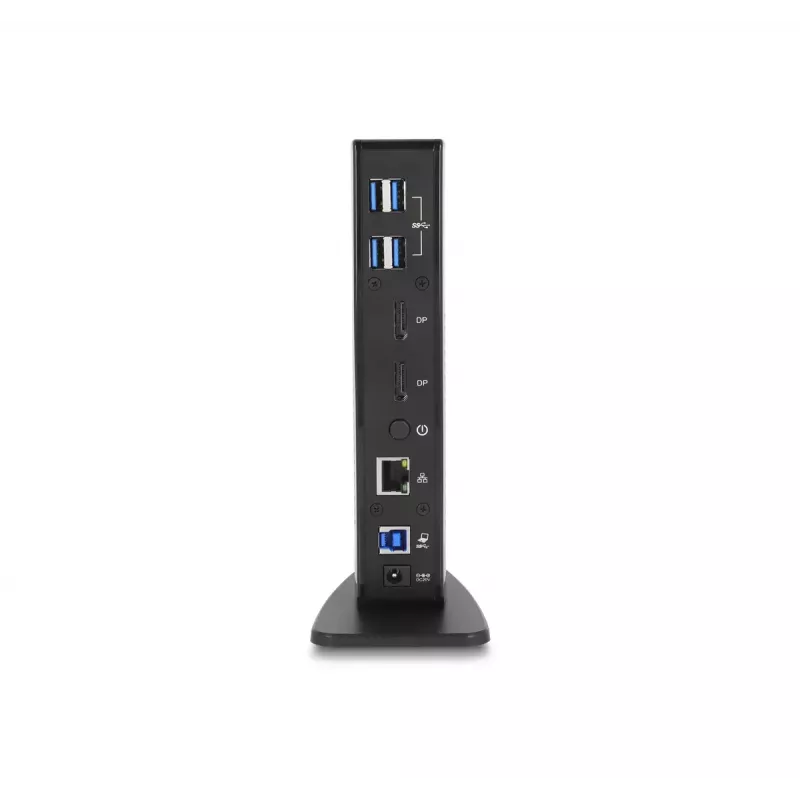

• Connectors: 2 × DisplayPort outputs, 6 × USB 3.2 Gen 1 Type-A ports, 1 × RJ-45 Gigabit Ethernet, audio in/out
• Display support: Up to 4K (3840 × 2160) at 60 Hz on a single monitor or on both DisplayPort outputs
• Compatibility: Windows and macOS via DisplayLink graphics chipset (no DP Alt Mode required)
• Colour: Black

How to use

Connect the docking station to your computer using either a USB-C or USB Type-A cable. Attach external monitors to the DisplayPort outputs, connect peripherals to the USB 3.2 Gen 1 ports, and plug in a network cable to the RJ-45 port for wired LAN. Install the DisplayLink drivers on Windows or macOS if required by your operating system to enable extended and mirrored display functionality.

Recommendations

For optimal 4K 60 Hz performance, use high-quality DisplayPort cables and ensure the latest DisplayLink drivers are installed. When using two monitors at 4K 60 Hz simultaneously, verify your host system and available bandwidth meet the requirements for dual 4K output.
