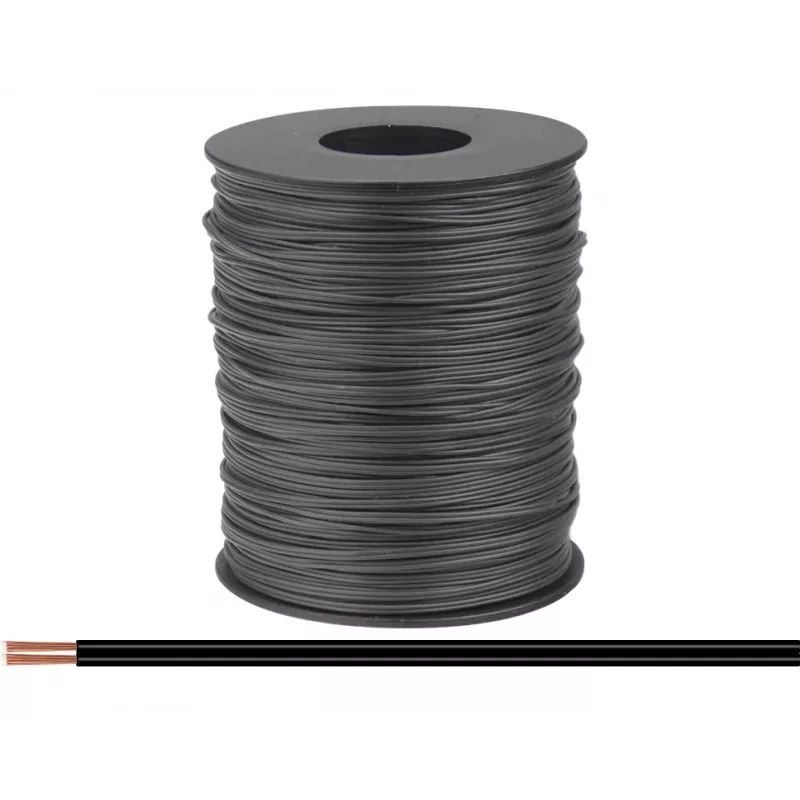

Donau Elektronik 114-11-100 filo flessibile 2 x 0,08 mm² nero 100 m

For low-voltage signal wiring and model building projects where flexible, fine-stranded conductors are required, this 2-core stranded wire from Donau Elektronik provides reliable connections in a compact black PVC jacket. The 0.08 mm² cross-section per core suits delicate electronics work without adding bulk.

Who is it for

Electronics hobbyists, model builders, and technicians who need a lightweight, flexible cable for signal-level circuits. It is ideal for sensor wiring, LED connections, and other low-current applications where space is limited and a neat black finish is preferred.

Main features

• 2 tinned copper conductors, each 0.08 mm², for corrosion resistance and easy soldering
• Black PVC insulation for durability and easy identification in dark enclosures
• 100 m reel provides ample length for multiple projects
• Rated for 300 V and temperatures from -20 °C to +80 °C
• Multi-stranded construction offers flexibility for routing in tight spaces

Specifications

• Wire type: stranded
• Number of cores: 2
• Conductor cross-section: 0.08 mm² per core
• Conductor material: tinned copper
• Insulation: PVC
• Cable colour: black
• Length: 100 m
• Rated voltage: 300 V
• Temperature range: -20 °C to +80 °C
• Conductor resistance: 245 Ohm/km at 20 °C
• Current carrying capacity: 0.5 A per core
• Overall diameter: 2.5 mm
• Packaging: reel

Tips

Strip the insulation carefully with a fine wire stripper to avoid nicking the thin strands. For best results, tin the ends before soldering to prevent fraying. Store the reel in a dry place to maintain insulation integrity.
