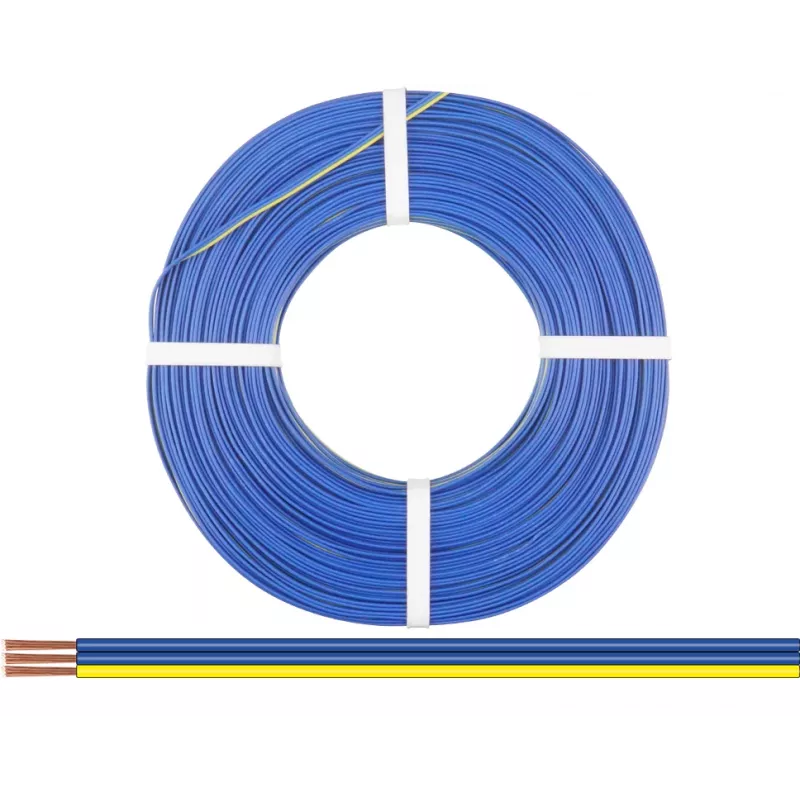

Donau Elektronik 318-223-25 Cavo flessibile 3 x 0,14 mm² blu, blu, giallo 25 m

For technicians wiring control panels, hobbyists building model railways, or engineers prototyping electronic circuits, this 25-metre spool of 3-core stranded wire delivers reliable, flexible connections in tight spaces. Each core has a 0.14 mm² cross-section, ideal for low-current signal and control applications. The PVC insulation is colour-coded blue, blue, and yellow for easy identification during installation.

Key specifications

• Conductor cross-section: 0.14 mm² per core
• Number of cores: 3
• Conductor material: Copper, stranded construction
• Insulation: PVC, colours blue, blue, yellow
• Cable length: 25 m on spool
• Nominal voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer diameter approx.: 3.5 mm
• Max. current rating approx.: 1.5 A
• RoHS compliant

Why choose it

The fine-stranded copper conductors offer excellent flexibility, making routing around corners and through narrow conduits effortless. PVC insulation provides good abrasion resistance and electrical insulation. The colour-coded cores simplify circuit tracing and reduce wiring errors, saving time during assembly and maintenance.

Ideal use cases

• Internal wiring of electrical and electronic equipment
• Control circuits and signal lines
• Model making and hobby projects
• Low-voltage lighting and sensor connections

Good to know

Supplied on a convenient spool for easy dispensing and storage. The wire is suitable for fixed installation in protected environments. Always verify current-carrying capacity against your application's requirements and local regulations.
