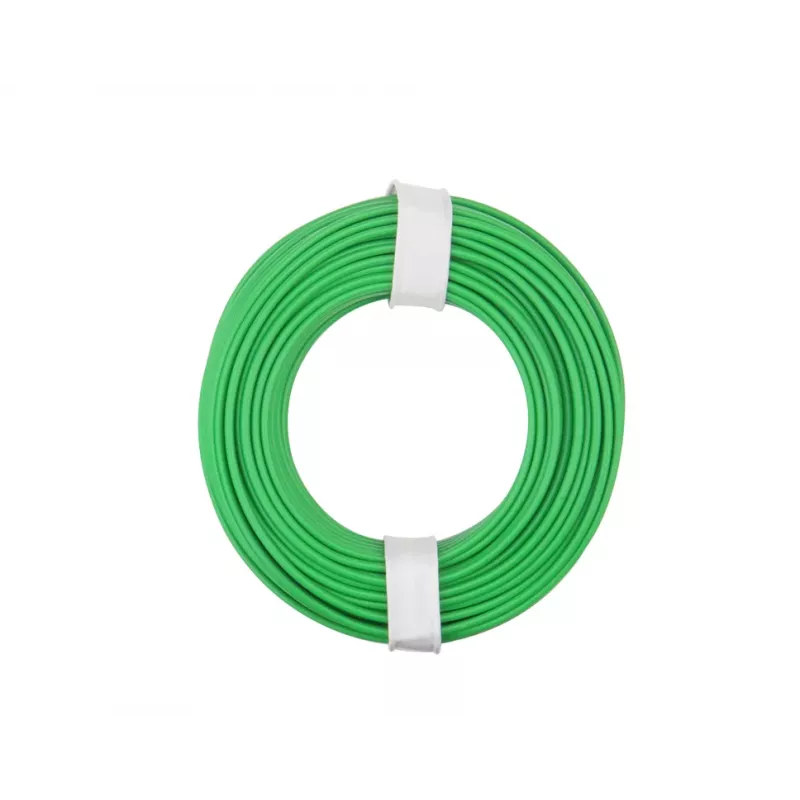

Donau Elektronik 175-014 Cavo LiY 1 x 0,75 mm² verde 10 m

Internal wiring in control cabinets and electronics projects demands a conductor that is flexible, reliable, and easy to route. The Donau Elektronik 175-014 LiY stranded hook-up wire meets these needs with a fine-stranded copper core and durable PVC insulation in green, supplied on a convenient 10 m reel.

Key specifications

• Wire type: LiY (stranded hook-up wire)
• Conductor: fine-stranded copper (Class 5, IEC 60228), 1 × 0.75 mm²
• Insulation: PVC, green
• Rated voltage: 300/500 V, test voltage 2000 V
• Temperature range: -5 °C to +70 °C
• Outer diameter: approx. 2.3 mm
• Length: 10 m on small reel
• Standards: VDE 0281, RoHS compliant, flame retardant to EN 60332-1-2

Why choose it

The fine-stranded copper conductor offers excellent flexibility, making it easy to install in tight spaces and route around corners without breaking. The PVC insulation provides reliable electrical isolation and mechanical protection, while the green colour allows for clear identification in complex wiring systems. With a 300/500 V rating and compliance with VDE and RoHS standards, this wire is a safe and dependable choice for professional and hobbyist applications alike.

Ideal use cases

• Internal wiring of control cabinets and switchgear
• Electronics prototyping and hobby projects
• Signal and low-voltage power connections
• Automation and instrumentation wiring

Good to know

The wire is supplied on a 10 m reel, allowing you to cut exactly the length you need without waste. The minimum bending radius is 4 times the outer diameter for fixed installation and 8 times for flexible use, ensuring long-term reliability. The green insulation is highly visible and commonly used for earthing or specific signal identification in industrial environments.
