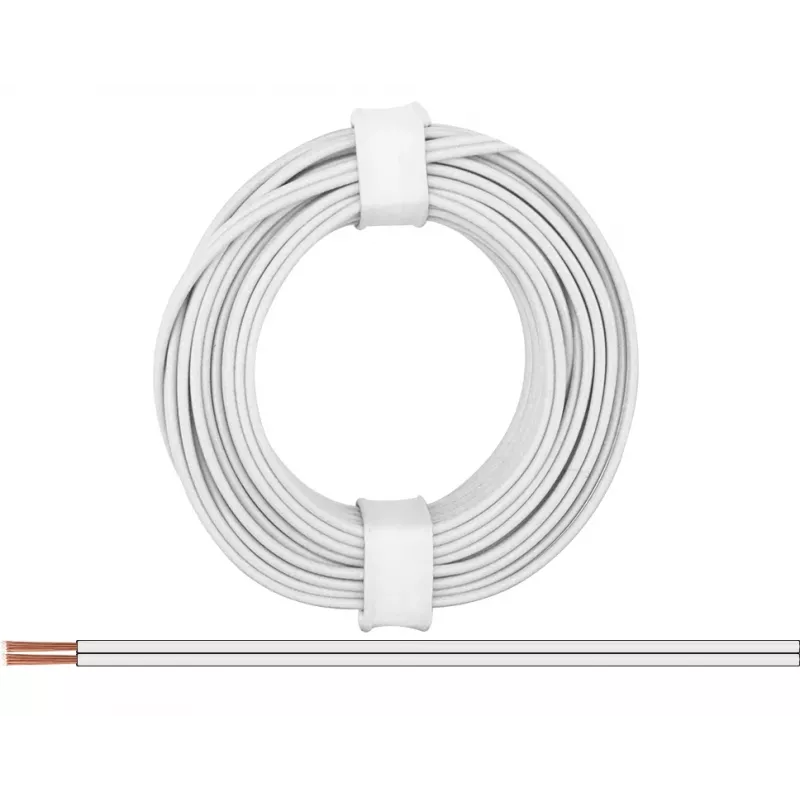

Donau Elektronik 218-55 Cavo flessibile 2 x 0,14 mm² bianco 5 m

With a conductor cross-section of just 0.14 mm² per core, this stranded wire delivers precise signal transmission in a compact, flexible form factor. The white PVC insulation ensures easy identification and clean routing in tight spaces, while the 5-metre length provides ample reach for most low-voltage projects.

Overview

The Donau Elektronik 218-55 is a two-core stranded wire engineered for signal and low-voltage applications. Each core consists of tinned copper strands (18 x 0.1 mm) for excellent conductivity and corrosion resistance. The PVC insulation offers reliable protection and flexibility, with a temperature range from -30°C to +80°C. The wire is RoHS compliant and supplied on a coil for convenient handling.

What stands out

• Tinned copper conductors resist oxidation and ensure long-term performance.
• Fine stranding (18 x 0.1 mm) provides high flexibility for routing in confined areas.
• White PVC jacket allows quick polarity identification and blends with light-coloured installations.
• Rated for 300 V nominal voltage and up to 1.5 A current, suitable for hobby electronics and model building.
• Compact outer diameter of approximately 2.5 mm saves space in cable ducts and enclosures.

Technical details

• Number of cores: 2
• Conductor cross-section: 0.14 mm² per core
• Conductor material: Tinned copper
• Stranding construction: 18 x 0.1 mm
• Insulation material: PVC
• Insulation colour: White
• Nominal voltage: 300 V
• Max current rating: approx. 1.5 A
• Temperature range: -30°C to +80°C
• Resistance per meter: approx. 0.13 Ohm/m
• Outer diameter: approx. 2.5 mm
• Length: 5 m
• Packaging: Coil
• Compliance: RoHS

Our verdict

An excellent choice for signal wiring, low-voltage control circuits, and hobby projects where flexibility and reliability matter. The tinned copper strands and PVC insulation ensure durable performance, and the 5-metre coil offers practical value for both prototyping and permanent installations.
