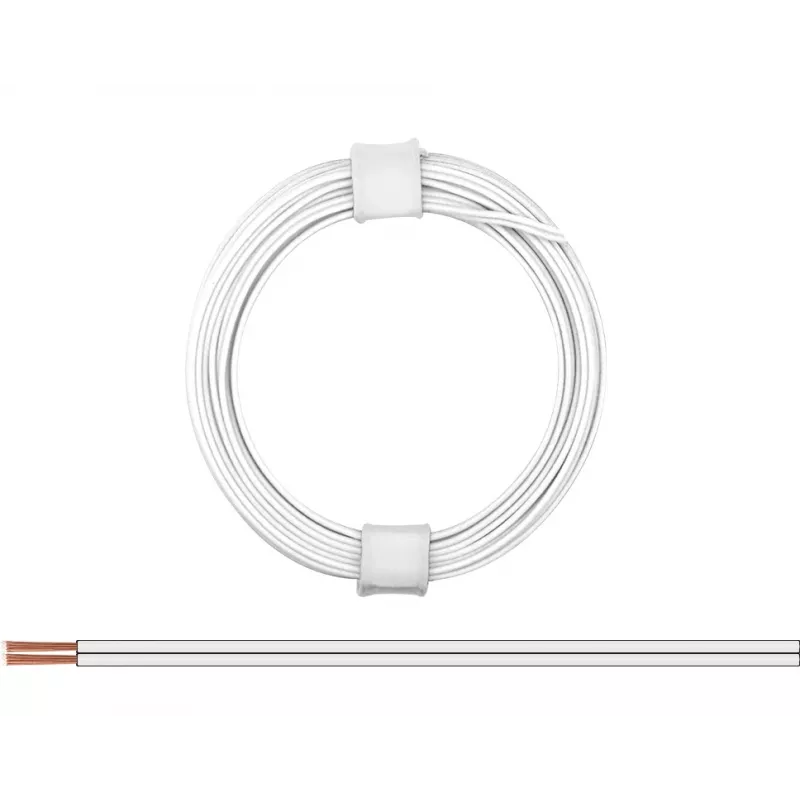

Donau Elektronik 114-55 treccia 2 x 0,08 mm² bianco 5 m

Low-current electronics demand wiring that is flexible, reliable, and easy to route. This 5-meter litz wire from Donau Elektronik delivers exactly that: two stranded copper conductors, each 0.08 mm², insulated in white PVC, ready for prototyping, model building, and internal device wiring.

Advantages

Stranded copper construction (7 x 0.12 mm per core) provides excellent flexibility for tight bends and repeated movement. The PVC insulation offers dependable protection against abrasion and light mechanical stress, while the white jacket keeps installations neat and identifiable. Rated for 300 V and temperatures from -20°C to +80°C, this wire is suitable for a wide range of low-power applications. RoHS compliance ensures it meets environmental standards.

Suitable for

• Prototyping and breadboarding of low-current circuits
• Model building and hobby electronics
• Internal wiring of small devices and enclosures
• Sensor and signal connections in DIY projects

Key specifications

• Conductor cross-section: 0.08 mm² per core
• Number of cores: 2
• Conductor material: Copper, stranded (7 x 0.12 mm)
• Insulation: PVC, white
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Approximate outer diameter: 2.0 mm
• Maximum current rating: 0.5 A
• Length: 5 m
• Packaging: Coil
• RoHS compliant

Recommendations

For reliable low-current connections in tight spaces, this litz wire is a practical choice. Keep a coil on hand for prototyping and repairs—it strips cleanly and solders easily.
