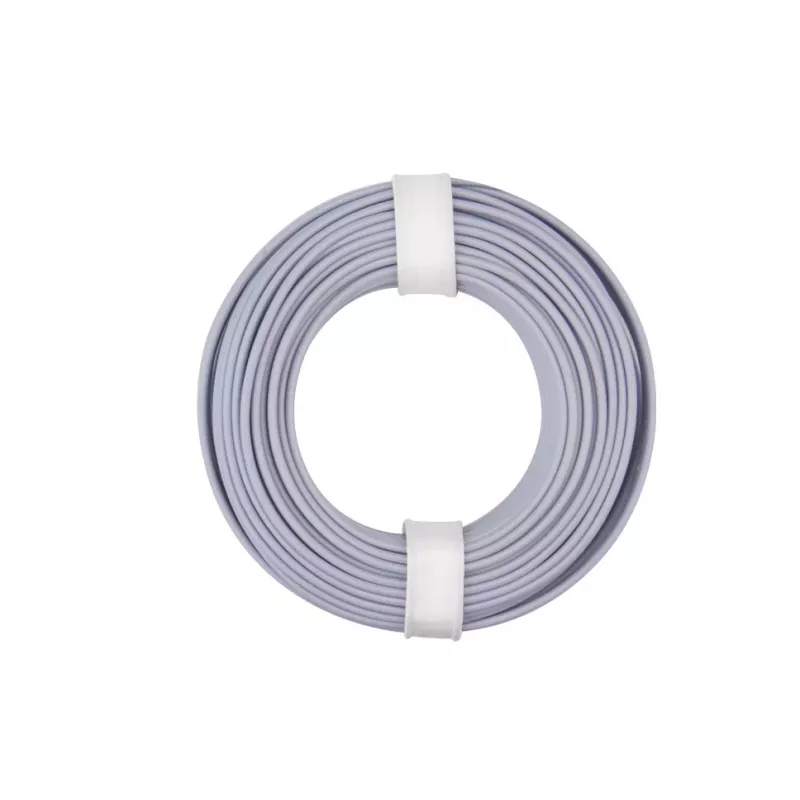

Donau Elektronik 175-019 Cavo unipolare LiY 1 x 0,75 mm² grigio 10 m

Single-core stranded hook-up wire with a 0.75 mm² bare copper conductor and grey PVC insulation. Ideal for flexible wiring in control cabinets, appliances, and electronic devices.

Advantages

Flexible stranded construction allows easy routing in tight spaces. PVC insulation provides good resistance to abrasion and chemicals. Rated for voltages up to 500 V and temperatures from -30°C to +70°C in fixed installations.

Suitable for

• Internal wiring of electrical equipment
• Control cabinet wiring
• Appliance and electronics assembly

Key specifications

• Conductor cross-section: 0.75 mm²
• Number of cores: 1
• Insulation colour: Grey
• Nominal voltage: 500 V
• Temperature range (fixed): -30°C to +70°C
• Outer diameter: 2.3 mm
• Conductor construction: 24 x 0.2 mm
• Conductor resistance: max. 26 Ohm/km at 20°C
• Current carrying capacity: approx. 7.5 A
• Length: 10 m

Recommendations

Choose this wire for reliable low-voltage signal and power connections where flexibility and space are considerations.
