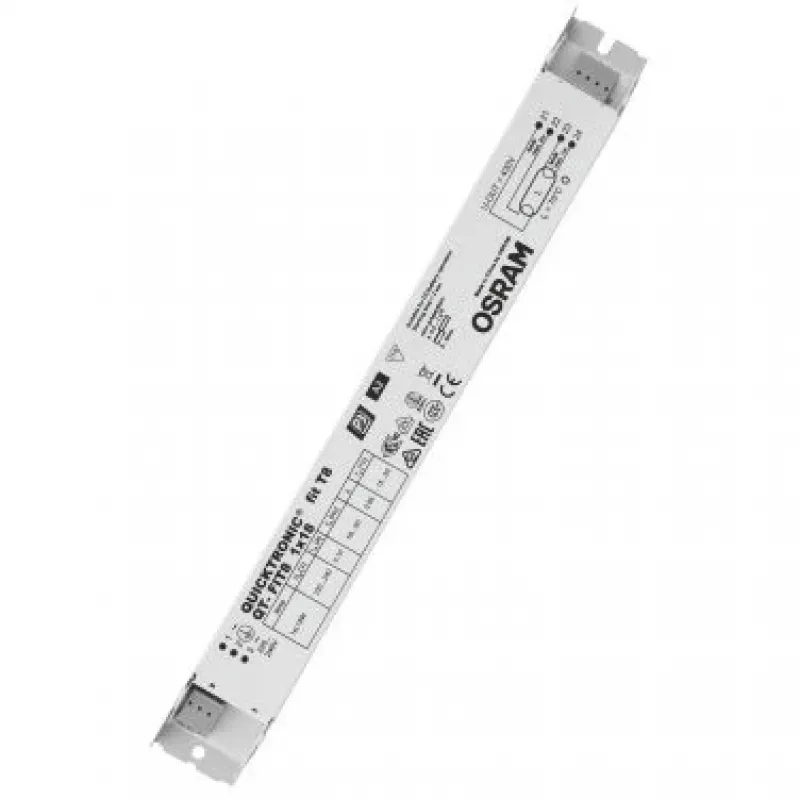

Driver LED alimentatore Osram QUICKTRONIC FIT 8, bianco, 360×30 mm, -15–50°C

Electronic control gear for fluorescent lamps designed for open-plan offices, corridors, storage rooms and public buildings. Suitable for strip lighting and for emergency lighting when operated on DC. Intended for use in luminaires of protection class I. The device provides long lamp life and stable operation even with frequent on/off switching.

Advantages

Long service life of lamps with automatic restart after lamp replacement and no adverse effect from frequent switching. Reliable lamp start with optimum filament preheating, which makes it suitable for motion-sensor applications. The system is VDE and VDE EMC certified and uses cut-off technology to achieve very high energy efficiency.

Key specifications

• Supply voltage: 220…240 V
• Line voltage: 198…264 V
• Line frequency: 50 Hz / 60 Hz
• Lamp start with optimum filament preheating
• Energy Efficiency Index (EEI): A2
• Automatic shutdown of defective lamps and at end of life (EoL T.2)
• Lamp operation compliant with EN 60929
• Safety compliant with EN 61347-2-3

How to use

Install the control gear according to luminaire manufacturer instructions and local electrical codes. Connect to the mains within the specified supply voltage range (220–240 V) and ensure line voltage and frequency compatibility. For emergency lighting use, operate on DC supply as required. Replace lamps as needed; the device will automatically restart after lamp replacement. If a lamp becomes defective or reaches end of life, the unit will shut down that channel automatically.
