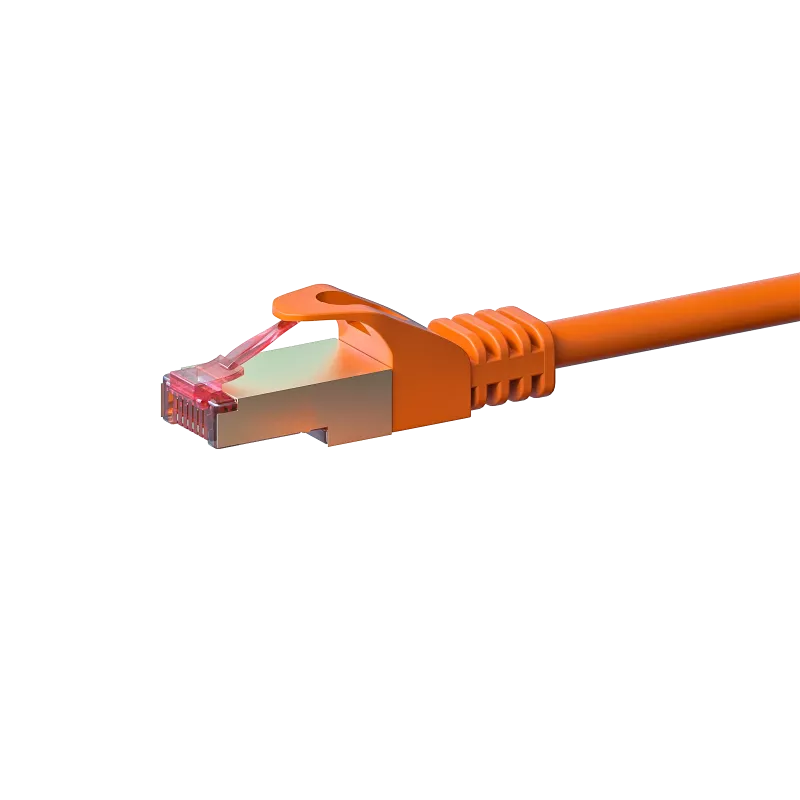

DSIT CAT 6 S/FTP LSOH cavo patch di rete 10m arancione

Experience 10 Gigabit Ethernet speeds with this 10-meter DSIT CAT 6 S/FTP patch cable, engineered with LSOH jacketing for safety and performance.

Overview

The DSIT DC-S66-100 is a high-performance CAT 6 network cable designed for demanding Ethernet applications. With a length of 10 meters, it provides flexibility in connecting devices across rooms or within server racks. The cable features S/FTP shielding, where each twisted pair is individually foil-shielded and the overall cable is braided, ensuring superior protection against electromagnetic interference (EMI) and crosstalk. This makes it ideal for environments with high signal noise, such as data centers and industrial settings.

The jacket is made from LSOH (Low Smoke Zero Halogen) material, which emits low smoke and no toxic halogens when exposed to fire. This enhances safety in confined spaces and complies with fire safety standards IEC 60332-1, IEC 61034, and IEC 60754. The cable supports data transfer rates up to 10 Gbps and a bandwidth of 250 MHz, meeting CAT 6 specifications. It is terminated with gold-plated RJ45 male connectors on both ends, ensuring reliable and corrosion-resistant connections.

What stands out

• 10 Gigabit Ethernet support for high-speed data transfer
• S/FTP shielding for maximum EMI and crosstalk protection
• LSOH jacket for low smoke and halogen-free fire safety
• Gold-plated connectors for optimal signal integrity
• 23 AWG stranded bare copper conductors for flexibility and performance
• Supports Power over Ethernet (PoE) applications

Technical details

• Cable Type: Ethernet Patch Cable
• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Length: 10 meters
• Connectors: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 250 MHz
• Conductor Material: Bare Copper
• Conductor Gauge: 23 AWG
• Cable Construction: Stranded
• Number of Pairs: 4
• Connector Plating: Gold
• Compliance: RoHS, CE

Our verdict

A robust and safe CAT 6 cable that delivers exceptional performance for high-speed networks, with the added benefit of halogen-free construction for peace of mind.
