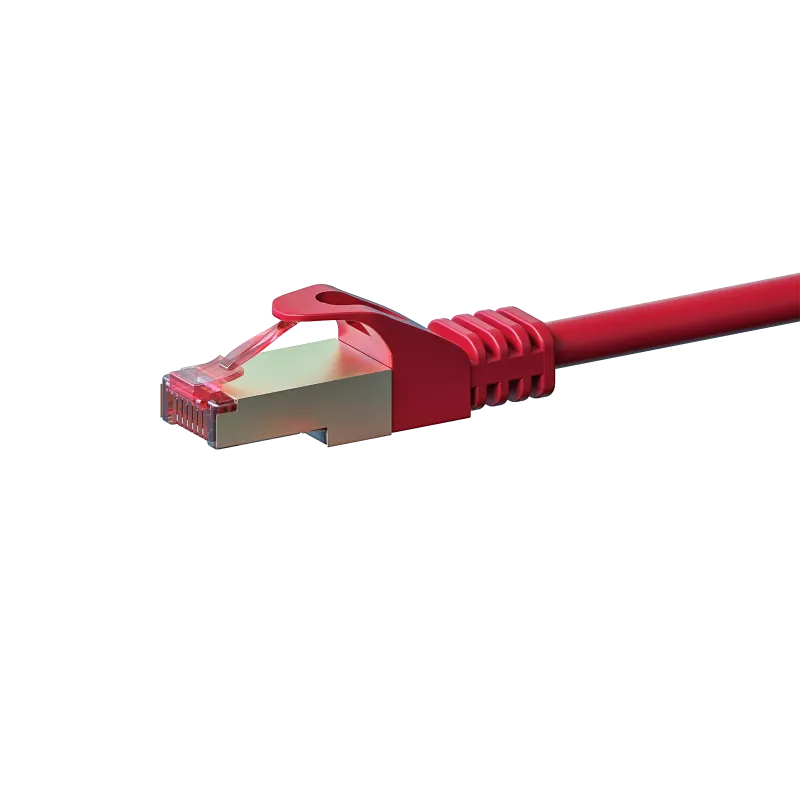

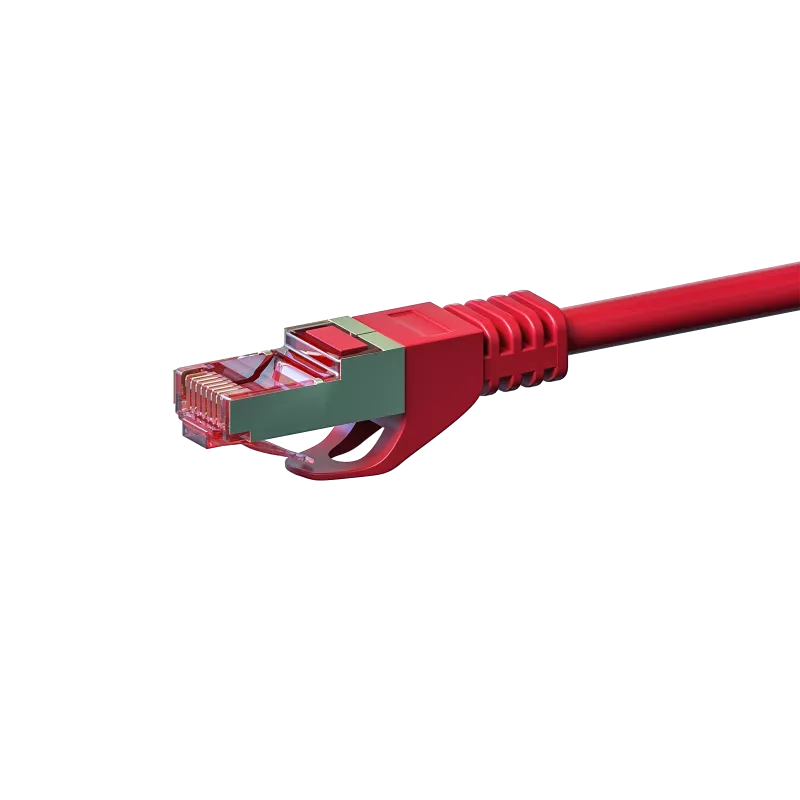

DSIT Cat 6 S/FTP LSOH cavo patch di rete, 5 m, rosso

Cat 6 network patch cable with S/FTP shielding and LSOH jacket, delivering reliable 10 Gigabit Ethernet performance over 5 meters in a red design.

Advantages

Each twisted pair is individually foil-shielded and the overall cable is braided, providing superior protection against electromagnetic interference and crosstalk. The low smoke zero halogen jacket enhances safety in fire conditions by emitting minimal smoke and no toxic halogens. Gold-plated RJ45 connectors ensure corrosion resistance and consistent signal integrity. Stranded bare copper conductors offer flexibility for easy routing in tight spaces while maintaining excellent conductivity.

Suitable for

• Connecting computers, laptops, and servers to network switches and routers
• High-speed data transfer in office and home networks
• 10GBASE-T Ethernet applications up to 55 meters
• Installations requiring low smoke and halogen-free cabling, such as public buildings and data centers
• Backward-compatible use with Cat5e and Cat5 devices

Key specifications

• Cable length: 5 meters
• Category: Cat 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 250 MHz
• Conductor: 100% bare copper, 26 AWG stranded
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1 compliant

Recommendations

For optimal performance, avoid sharp bends and keep the cable away from power lines. This cable is ideal for professional network installations where safety and high-speed performance are critical.
