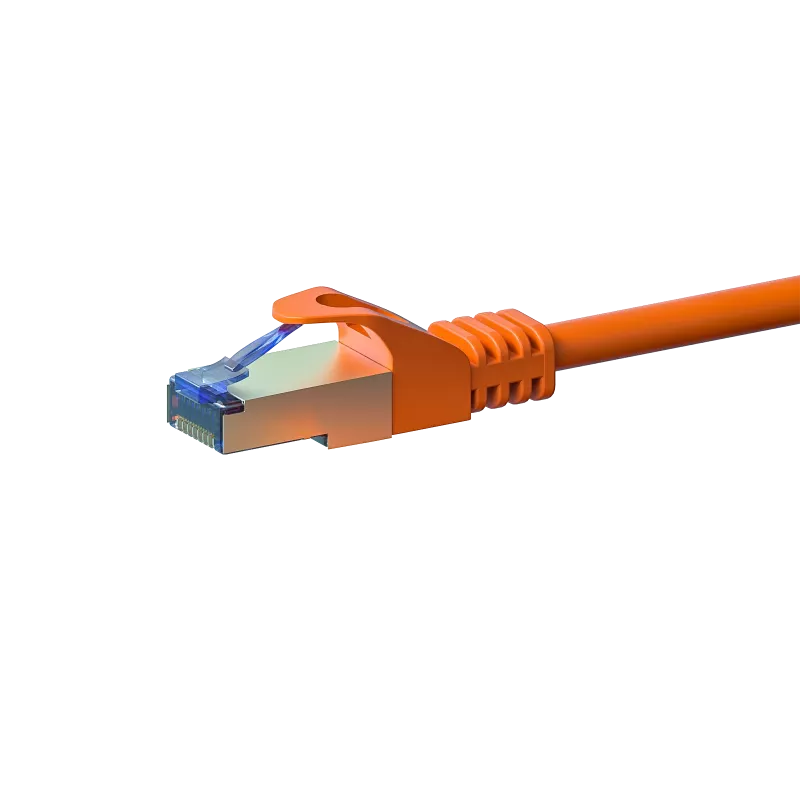

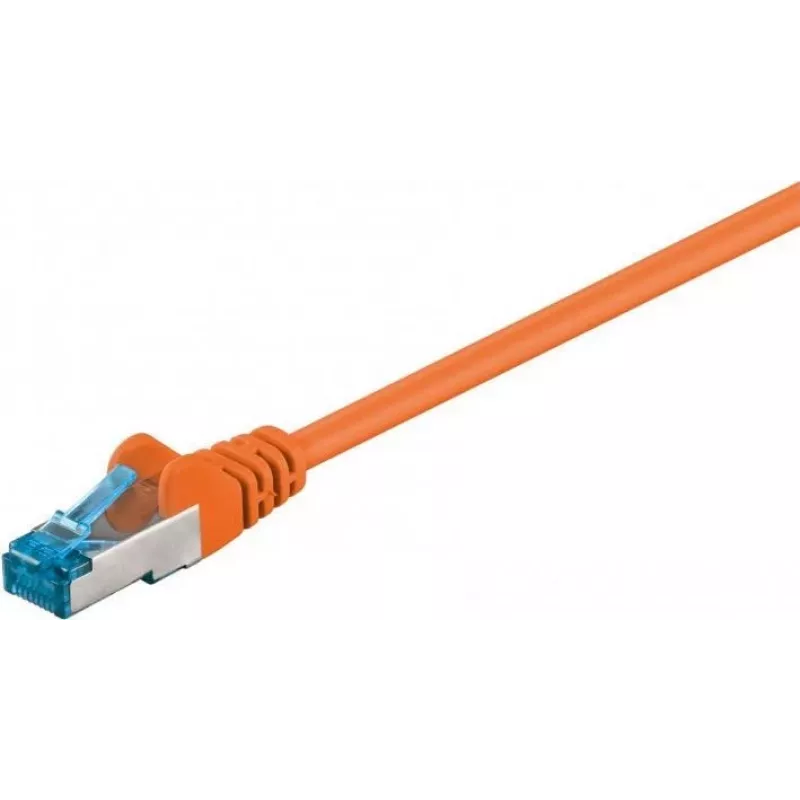

DSIT CAT 6a cavo di rete LSOH - S/FTP - 2 metri - arancione (DC-6A6-020)

This CAT 6a network patch cable delivers 10 Gigabit Ethernet performance over 2 meters with S/FTP shielding and LSOH jacket, making it ideal for high-density data centers, office networks, and home setups where speed, safety, and reliability are critical.

Advantages

The S/FTP construction—each twisted pair individually foiled plus an overall braided screen—provides superior protection against alien crosstalk and electromagnetic interference, ensuring stable 10GBASE-T transmission up to 500 MHz. Gold-plated RJ45 connectors resist corrosion and maintain optimal signal integrity over thousands of mating cycles. The LSOH (Low Smoke Zero Halogen) jacket emits minimal smoke and no toxic halogens in case of fire, enhancing safety in enclosed spaces. Stranded AWG 26/7 copper conductors offer flexibility for easy routing while supporting PoE++ up to 100W for powering devices like access points and IP cameras.

Suitable for

• Data centers requiring high-density 10G links
• Office networks with PoE devices (VoIP phones, WAPs)
• Home networks for gaming, 4K streaming, and NAS
• Industrial environments needing low-smoke cabling
• Patch panel to switch connections in racks

Key specifications

• Category: CAT 6a (Class Ea)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 2 meters
• Color: Orange
• Jacket: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Bandwidth: 500 MHz
• Data rate: 10 Gbps (10GBASE-T)
• Conductor: Stranded copper, AWG 26/7
• Wiring: TIA/EIA-568B
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, 4PPoE (up to 100W)
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For maximum performance, pair with shielded RJ45 jacks and grounded patch panels. Avoid sharp bends; maintain a minimum bend radius of 4x cable diameter. Test with a CAT 6a certifier to verify 500 MHz compliance.
