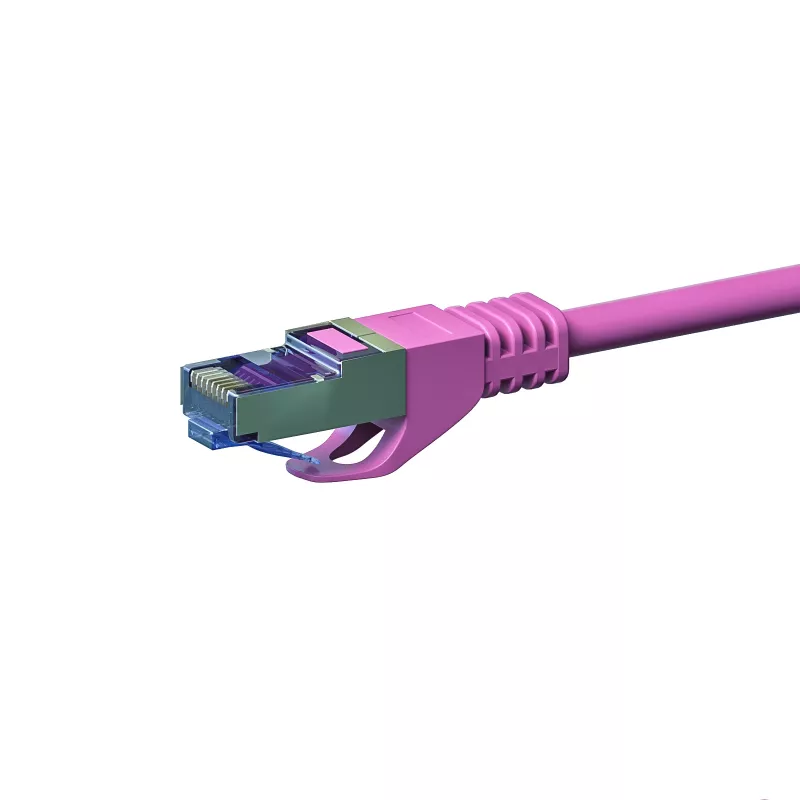

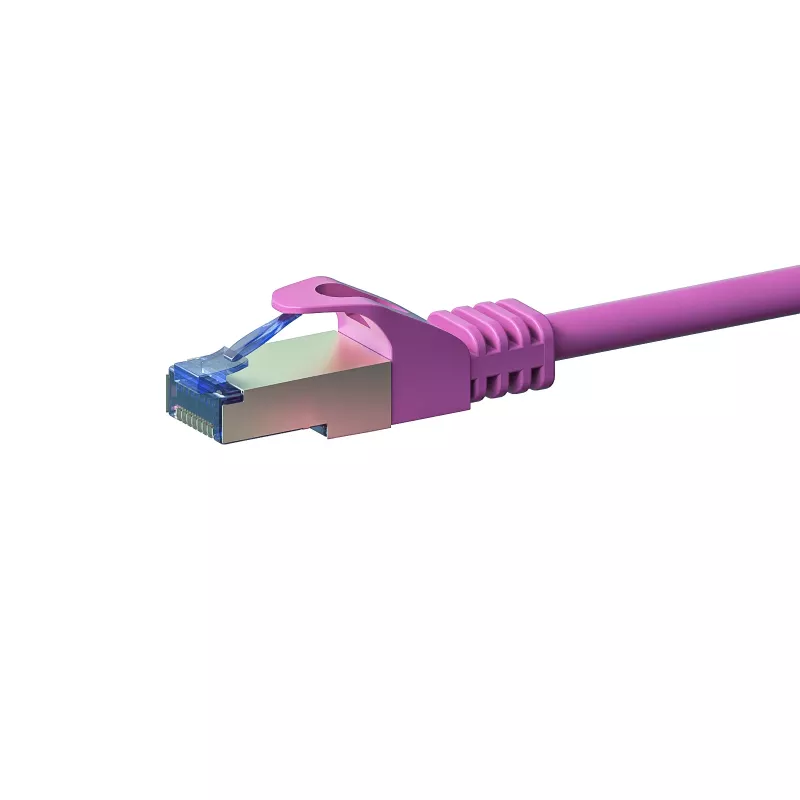

DSIT CAT 6a cavo di rete LSOH - S/FTP - 50 metri - rosa - cavo patch

For network administrators and installers who demand reliable high-speed connectivity in data centres, office buildings, or industrial environments, this DSIT CAT 6a patch cable delivers 10 Gigabit performance over a full 50-meter run. The pink LSOH jacket stands out for easy identification while meeting strict fire safety and low-smoke requirements, making it suitable for public and enclosed spaces.

Key specifications

• Category: CAT 6a (Class EA) with S/FTP shielding (PiMF) for superior noise immunity
• Length: 50 meters, ideal for long patch runs or structured cabling
• Data transfer rate: up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: up to 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ) for corrosion resistance
• Conductor: stranded copper, AWG 26/7, 4 twisted pairs
• Wiring standard: TIA/EIA 568B, impedance 100 Ohm
• Jacket: LSOH (Low Smoke Zero Halogen), pink colour
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2; fire safety per IEC 60332-1, IEC 61034, IEC 60754

Why choose it

This cable is built for high-density 10G networks where signal integrity is critical. The S/FTP construction with individually foiled pairs and an overall braid shield virtually eliminates alien crosstalk, ensuring stable performance even in bundles. The LSOH jacket emits low smoke and no halogen gases in case of fire, protecting people and equipment. The pink colour simplifies cable management and identification in complex installations.

Ideal use cases

• Data centre interconnects and server-to-switch links up to 50m
• High-speed workstation connections in offices or labs
• Structured cabling in public buildings, hospitals, or schools where fire safety is paramount
• Home or SMB networks requiring future-proof 10G readiness

Good to know

The cable is supplied in a 50-meter length and can be used as a long patch cord or cut to custom lengths for permanent installation. It is fully backward compatible with CAT 5e and CAT 6 networks. The gold-plated connectors ensure reliable contact over thousands of mating cycles. For best performance, avoid sharp bends and maintain the minimum bend radius as per installation guidelines.
