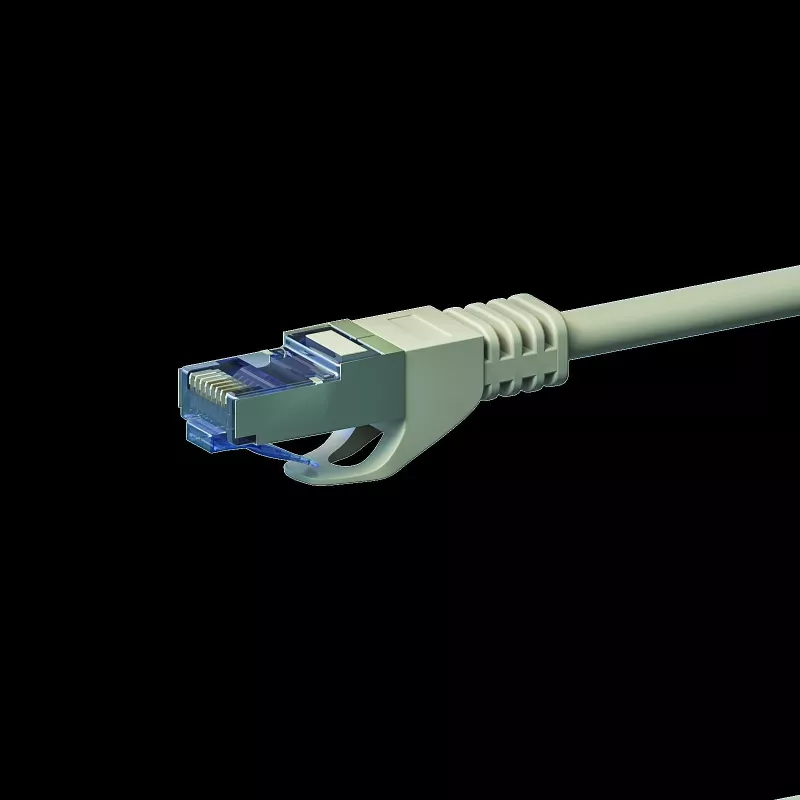

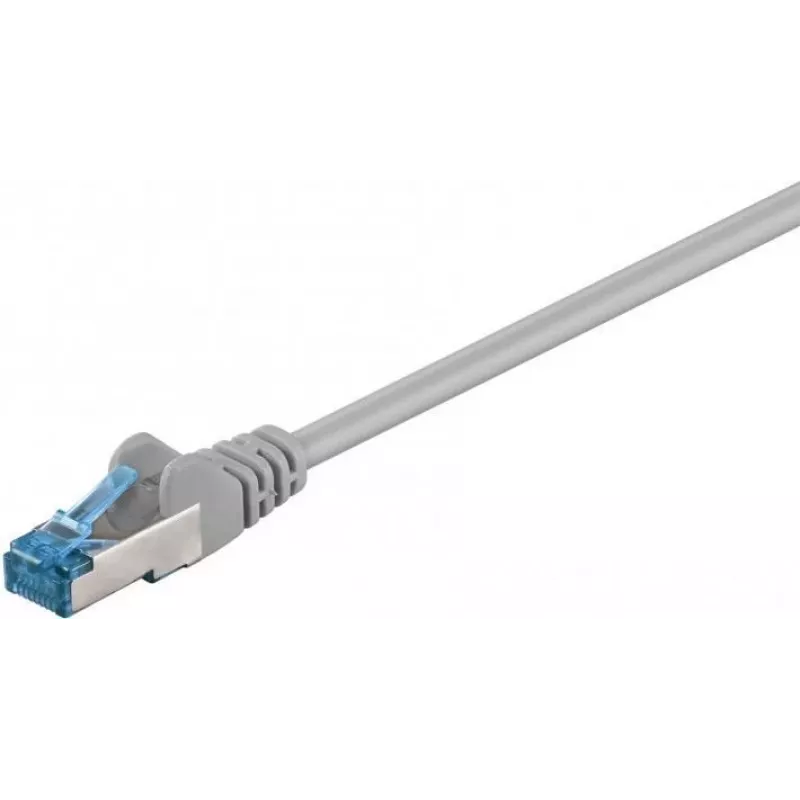

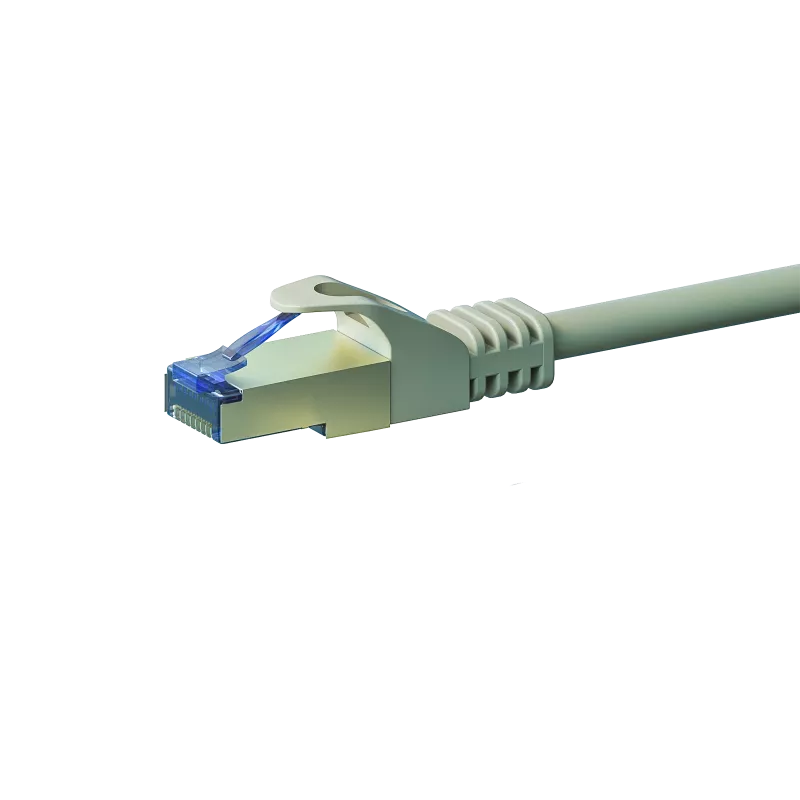

DSIT CAT 6a S/FTP LSOH cavo di rete, 7,5 m, grigio

Slow, unreliable network connections can cripple productivity in modern offices and data centers. This DSIT CAT 6a patch cable eliminates bottlenecks with 10 Gigabit Ethernet support and 500 MHz bandwidth, ensuring smooth data transfer for bandwidth-intensive applications. The S/FTP shielding and LSOH jacket make it a safe, high-performance choice for professional environments.

Who is it for

IT professionals, network administrators, and businesses that demand high-speed, interference-free connections. Ideal for data centers, server rooms, and office LANs where performance and safety are non-negotiable.

Main features

• CAT 6a performance: supports 10GBASE-T up to 500 MHz for future-proof networking.
• S/FTP shielding: each pair foiled plus overall braid screens against EMI/RFI crosstalk.
• LSOH jacket: low smoke zero halogen material reduces toxic fumes in fire situations.
• Bare copper stranded conductors (AWG 26/7) ensure flexibility and reliable signal integrity.
• Gold-plated RJ45 connectors with snagless boots for secure, long-lasting connections.
• Backward compatible with Cat6, Cat5e, and Cat5 networks.
• PoE compatible: safely delivers power to devices like IP cameras and access points.

Specifications

• Length: 7.5 m
• Colour: Grey
• Connector type: RJ45 male to RJ45 male
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Conductor: Bare copper, stranded 7-wire, AWG 26/7
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, IEC 60332-1, IEC 61034, IEC 60754

Tips

For optimal performance, avoid sharp bends and keep the cable away from power lines. Use cable management to maintain proper bend radius and prevent damage. This cable is ideal for structured cabling systems that require LSOH compliance.
