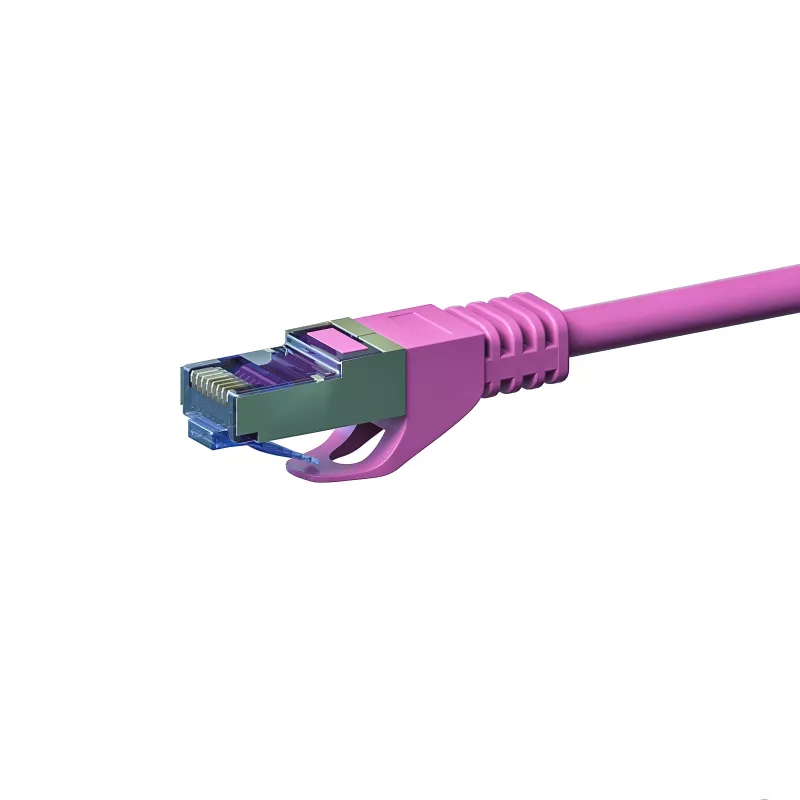

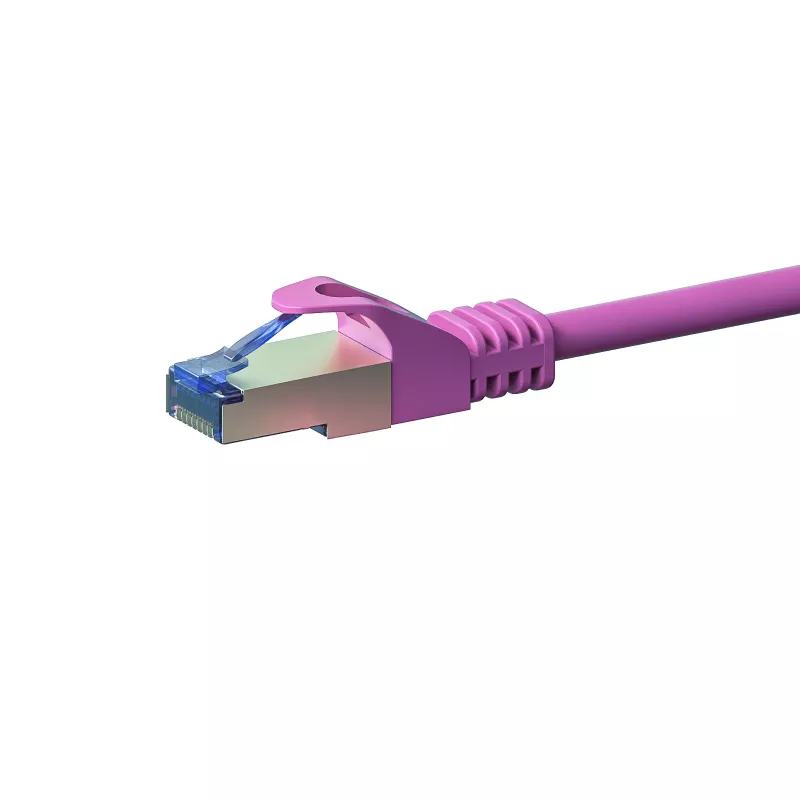

DSIT CAT 6a S/FTP LSOH cavo patch di rete, 30m, rosa, 10Gbps, 500MHz, RJ45

Experience flawless 10 Gigabit Ethernet performance with this 30-meter CAT 6a patch cable, engineered with S/FTP shielding and LSOH jacket for maximum signal integrity and safety. The pink jacket adds visibility while the stranded copper conductors ensure flexibility for easy installation in dense racks or tight spaces.

Overview

The DSIT CAT 6a network cable delivers reliable, high-speed connectivity for demanding LAN environments. With a bandwidth of 500 MHz and support for 10GBASE-T, it is ideal for data centers, server rooms, and high-performance workstations. The S/FTP construction—each pair foiled and overall braid screened—provides superior protection against EMI and crosstalk, ensuring error-free transmission over long distances.

What stands out

• 10 Gigabit Ethernet ready for future-proof networking
• 500 MHz bandwidth supports high-frequency applications
• S/FTP shielding minimizes alien crosstalk and interference
• LSOH jacket emits low smoke and zero halogen in case of fire
• Stranded 26/7 AWG copper conductors offer flexibility without performance loss
• Gold-plated RJ45 connectors resist corrosion and ensure reliable contacts

Technical details

• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Length: 30 meters
• Colour: Pink
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: 100% copper, AWG 26/7 stranded
• Outer diameter: approx. 6.2 mm
• Impedance: 100 Ohm
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Operating temperature: -20°C to 60°C
• Compliance: RoHS, CE; fire safety IEC 60332-1

Our verdict

A robust and reliable solution for high-speed networking, combining top-tier shielding, safety-rated materials, and generous length—perfect for professional installations where performance and compliance matter.
