DSIT CAT5e U/UTP cavo di rete con conduttore massiccio, 305m, grigio

For structured cabling projects that demand consistent performance over long runs, this DSIT CAT5e cable stands out with its solid copper conductors and 305-meter pull-box. Unlike stranded patch cables meant for short, flexible connections, the solid core maintains signal integrity across permanent links, making it the right choice for in-wall and riser installations where reliability is non-negotiable.

Highlights

• CAT5e performance supports Gigabit Ethernet (1000BASE-T) up to 100 MHz
• U/UTP construction: unshielded twisted pairs reduce crosstalk without added bulk
• Solid bare copper conductors (AWG 24) ensure stable attenuation over distance

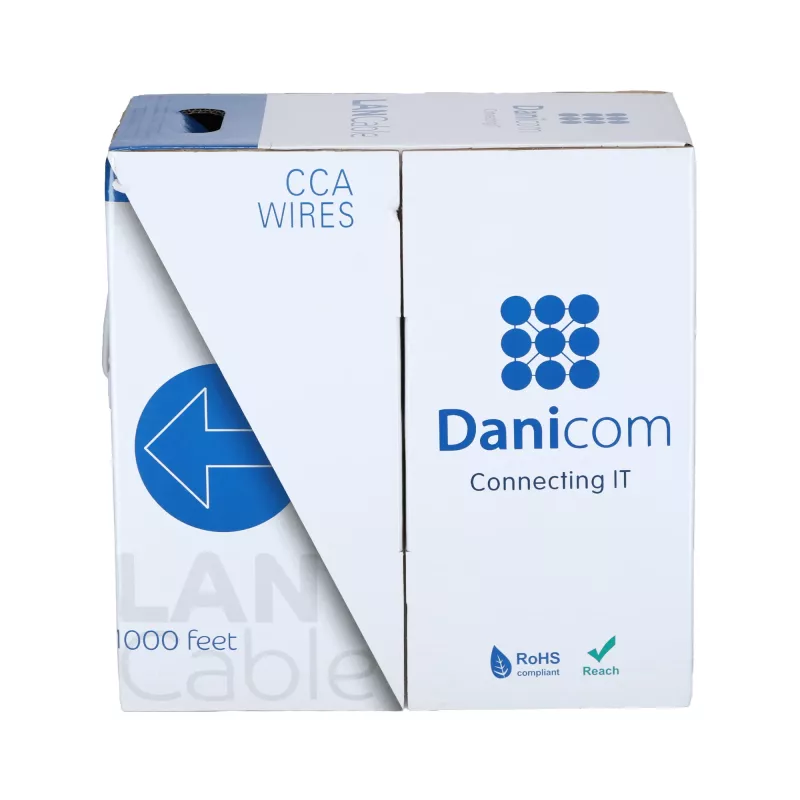

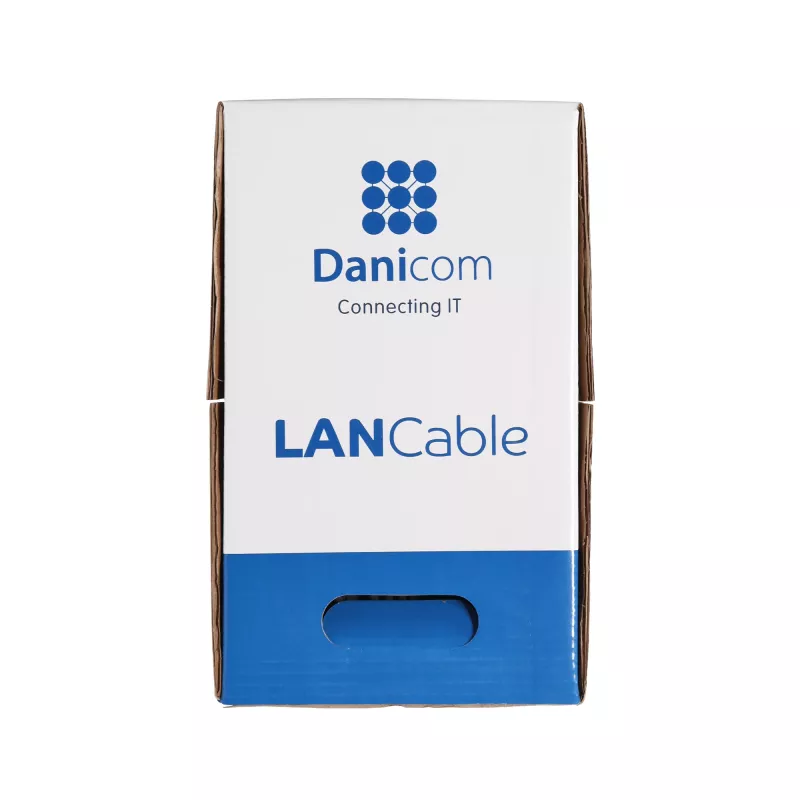

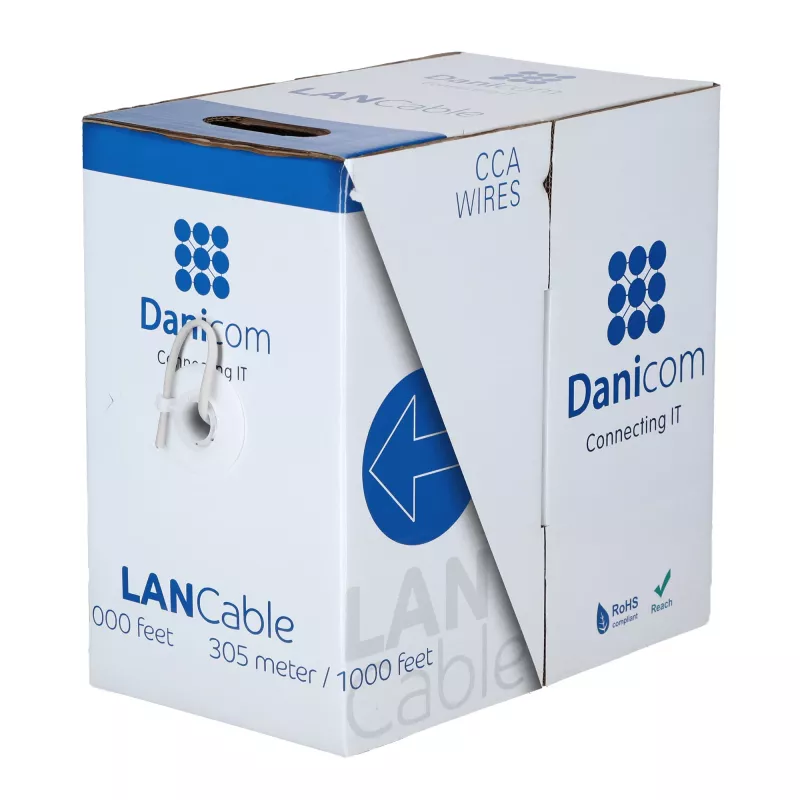

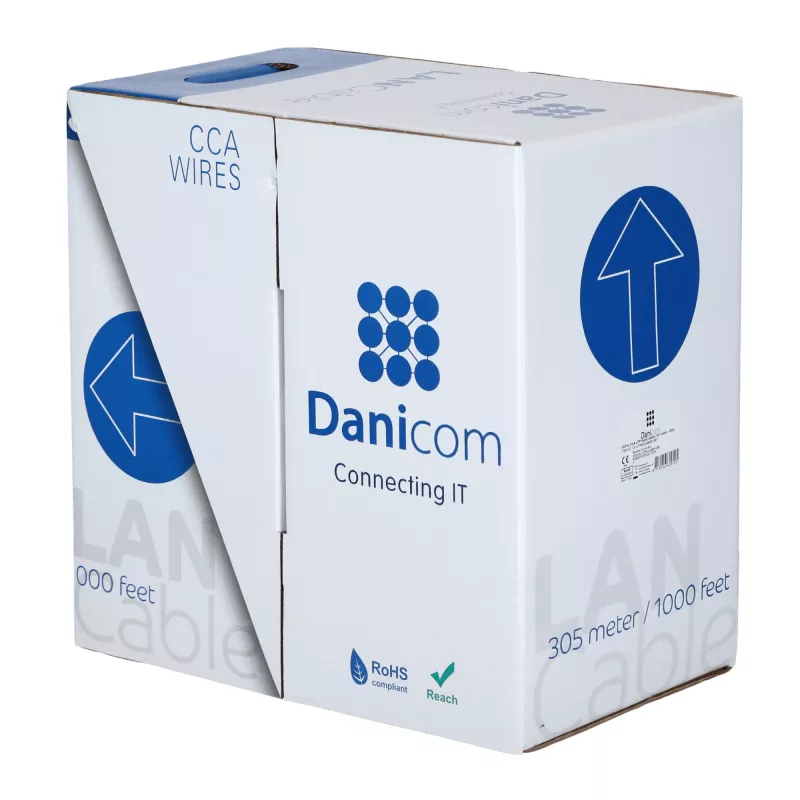

• 305 m (1000 ft) pull-box enables custom-length runs with minimal waste
• Grey PVC jacket is flame-retardant and suitable for indoor use

In daily use

Installers appreciate the smooth, consistent pull from the reel-in-box, which prevents kinks and tangles during long horizontal or vertical runs. The 5.5 mm outer diameter fits standard keystone jacks, patch panels, and RJ45 connectors, while the solid conductors punch down cleanly into IDC terminals. Whether wiring an office floor, a school, or a residential backbone, this cable delivers the headroom needed for VoIP, video streaming, and data-intensive applications.

Full specifications

• Category: CAT5e
• Shielding: U/UTP (unshielded)
• Conductor: Solid bare copper, AWG 24 (0.51 mm)
• Pairs: 4 twisted pairs
• Impedance: 100 ± 15 Ohm
• Maximum frequency: 100 MHz
• Maximum data rate: 1000 Mbps
• Outer diameter: 5.5 mm ± 0.2 mm
• Jacket material: PVC
• Colour: Grey
• Packaging: Reel-in-box / Pull-box

Final note

Built for permanent links, this solid-conductor cable is the dependable backbone your network deserves.
