DSIT DANICOM CAT6A UTP 305m cavo per esterni conduttore solido - PE (Fca)

Outdoor network installations often fail due to environmental stress—UV exposure, moisture, and temperature swings degrade ordinary cables, causing signal loss and downtime. The DSIT DANICOM CAT6A UTP Outdoor Cable solves this with a rugged polyethylene jacket and solid bare copper conductors, ensuring 10 Gigabit Ethernet performance up to 100 meters even in harsh conditions. This 305-meter reel is built for long-term reliability in building-to-building links, campus backbones, and outdoor surveillance systems, meeting European fire safety standards under EN 50575 (Fca).

Who is it for

Network installers, system integrators, and IT professionals who need dependable outdoor connectivity will find this cable essential. It’s ideal for enterprises deploying IP cameras, wireless access points, or inter-building LAN extensions. Contractors working on smart building or industrial IoT projects benefit from solid bare copper conductors that deliver superior signal strength and support Power over Ethernet (PoE) up to 72V DC. From logistics yards to school campuses, this cable provides the durability and performance required for long-term outdoor operation.

Main features

• CAT6A performance: supports 10GBASE-T with up to 500 MHz bandwidth for high-speed data transfer.
• UTP design: unshielded twisted pair construction reduces crosstalk and simplifies installation in outdoor settings.
• Outdoor-ready jacket: PE (polyethylene) resists UV radiation, moisture, and temperature extremes from -20°C to +60°C.
• Solid bare copper conductors: 23 AWG solid core ensures excellent conductivity and supports PoE applications.
• Fire safety compliance: meets EN 50575 Fca classification for low fire hazard in construction applications.

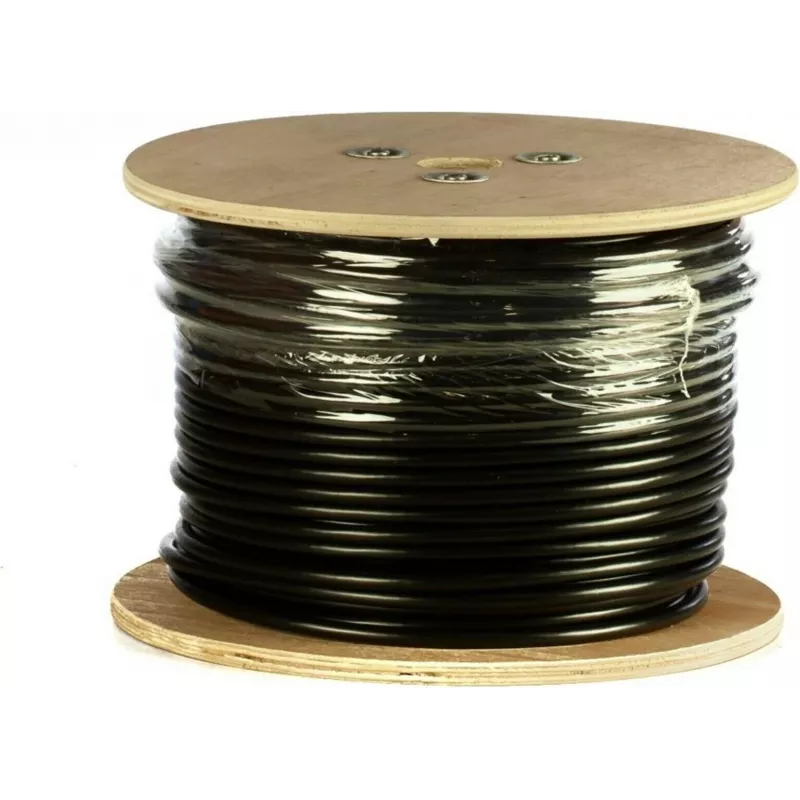

• Long reel length: 305 meters on a sturdy wooden drum, ideal for large-scale installations.

Specifications

• Cable category: CAT6A
• Shielding type: UTP (Unshielded Twisted Pair)
• Conductor type: Solid core
• Conductor material: Bare copper
• AWG size: 23 AWG
• Number of pairs: 4
• Jacket material: PE (Polyethylene)
• Outer diameter: 7.5 mm
• Insulation material: HDPE (High-Density Polyethylene)
• Cable colour: Black
• Cable length: 305 m
• Fire performance class: Fca (EN 50575)
• Maximum bandwidth: 500 MHz
• Supported data rate: 10 Gigabit Ethernet (10GBASE-T)
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C
• Voltage rating: 72V DC
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Packaging type: Wooden drum / reel

Tips

For best results, use proper outdoor-rated connectors and ensure cable is secured with UV-resistant ties. When pulling through conduits, maintain the recommended bend radius to avoid damaging the conductors. Always test the installation with a cable certifier to guarantee CAT6A performance.
