DSIT DANICOM CAT5E FTP 100m cavo di rete flessibile PVC (Fca) - DC-FTP5E-100-FCA

Cat5e FTP network installation cable delivers reliable Gigabit Ethernet connectivity over a 100-meter drum. The flexible PVC jacket allows easy routing through conduits and tight spaces, while foil shielding effectively reduces electromagnetic interference for stable performance in electrically noisy environments. Solid 24 AWG copper conductors ensure excellent signal integrity for demanding structured cabling projects.

Advantages

The DSIT DANICOM CAT5E FTP cable combines high performance with hassle-free installation. The flexible PVC jacket simplifies pulling through conduits and around corners, reducing installation time and effort. Solid 24 AWG copper conductors provide superior conductivity and long-term reliability, and the Euroclass Fca fire rating meets European safety standards for reaction to fire. RoHS compliance assures environmental responsibility, making it a safe choice for modern buildings.

Suitable for

• Gigabit Ethernet networks (1000BASE-T)
• Structured cabling in commercial buildings
• Indoor horizontal and vertical runs
• Power over Ethernet (PoE) applications up to 100W (with proper installation)
• High-density patch panel terminations

Key specifications

• Category: Cat5e (Category 5e)

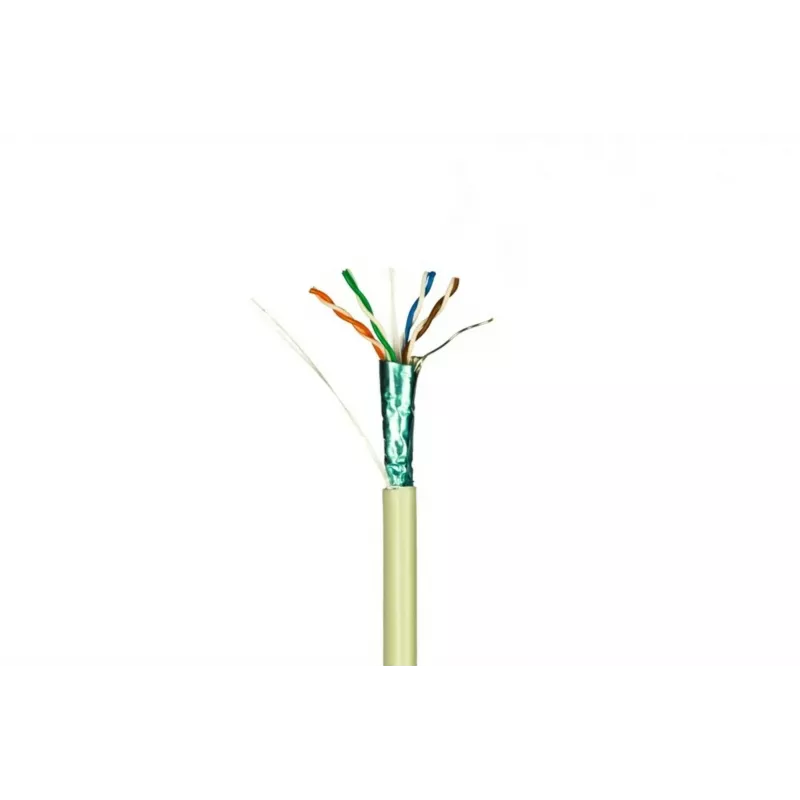

• Shielding: FTP (Foiled Twisted Pair)
• Length: 100 meters
• Jacket: PVC (Polyvinyl Chloride)
• Fire class: Fca (Euroclass)
• Conductor: Solid copper, 24 AWG
• Pairs: 4 twisted pairs
• Bandwidth: 100 MHz
• Data rate: up to 1000 Mbps
• Impedance: 100 Ohm
• Insulation: HDPE
• Compliance: RoHS

Recommendations

For optimal performance, ensure proper grounding of the foil shield and maintain bend radius recommendations during installation. Use with Cat5e-compatible connectors and patch panels to achieve full Gigabit speeds.
