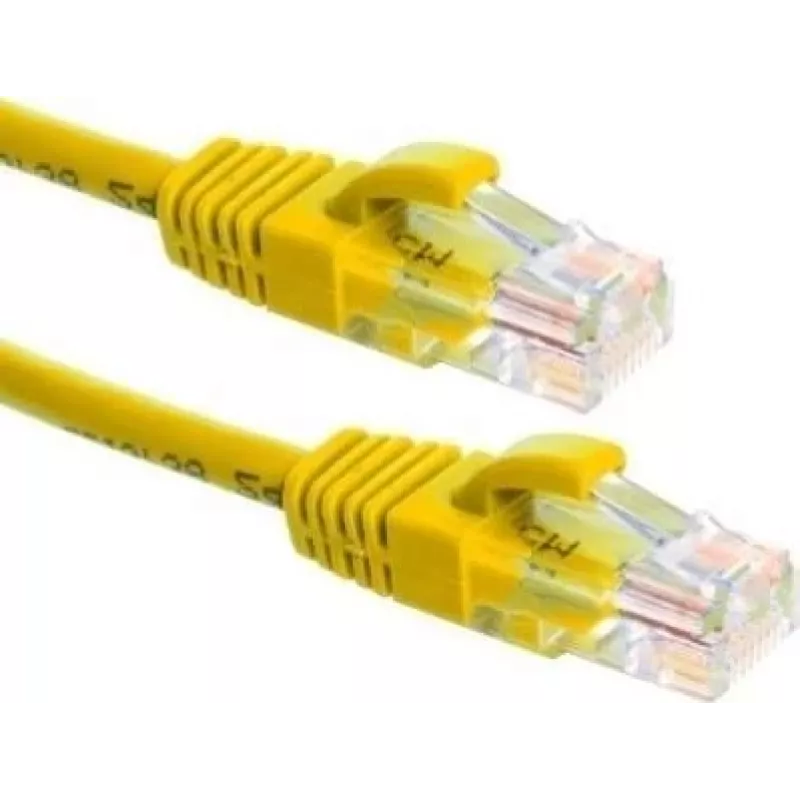

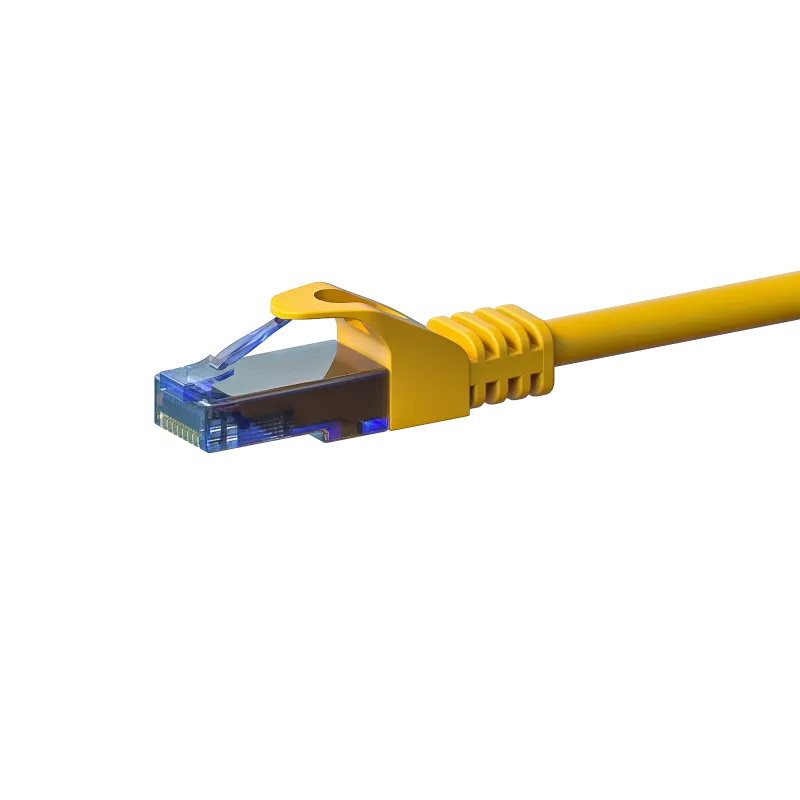

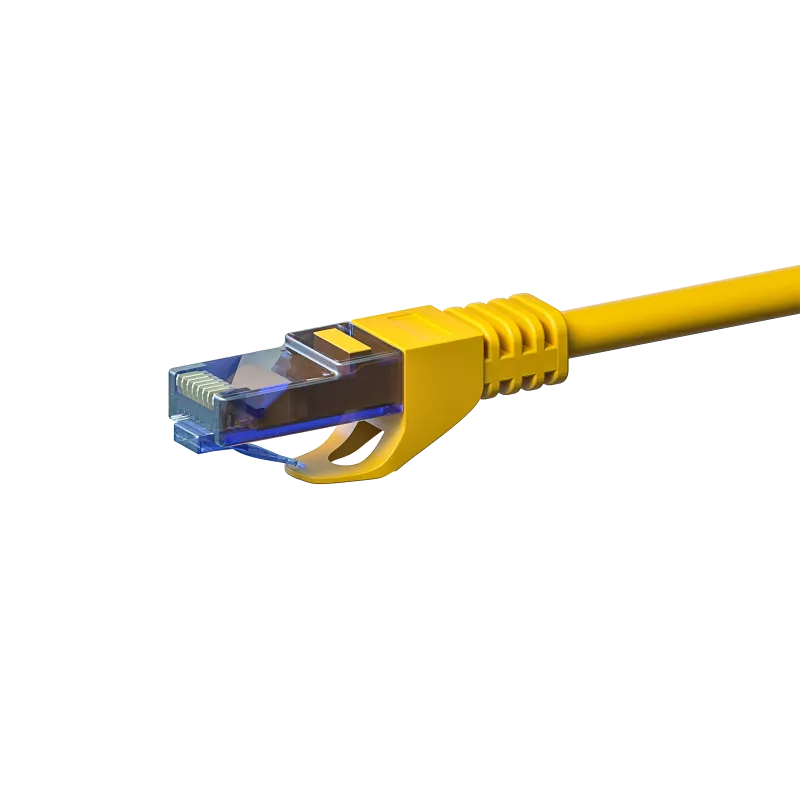

Cavo di installazione DSIT UTP Cat6a, 100% rame, giallo, 0,25 m, DC-U6A7-002

Network downtime and slow data transfer are often caused by substandard cabling. The DSIT UTP Cat6a installation cable with 100% copper conductors provides a reliable foundation for high-speed networks, ensuring consistent performance up to 10 Gigabit Ethernet. Its yellow jacket makes it easy to identify in dense cable runs, and the solid copper design supports both horizontal and backbone cabling in commercial or residential settings.

Who is it for

This cable is ideal for network installers, IT professionals, and system integrators who need a dependable Cat6a solution for structured cabling projects. It suits data centers, office LANs, and any environment where 10GBASE-T connectivity is required over short distances, such as patch panel to switch connections.

Main features

• Category 6a performance: supports data rates up to 10 Gbps and bandwidth up to 500 MHz.
• 100% solid copper conductors (23 AWG) for superior signal integrity and lower resistance compared to copper-clad aluminium.
• U/UTP unshielded design reduces crosstalk while remaining flexible and easy to terminate.
• Yellow PVC jacket provides high visibility and durability for indoor installations.
• Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards, ensuring interoperability.
• Short 0.25 m length is perfect for high-density patching and equipment connections.

Specifications

• Cable type: UTP (Unshielded Twisted Pair)
• Category: Cat6a
• Conductor material: 100% copper
• Conductor type: solid
• Conductor gauge: 23 AWG
• Number of pairs: 4 twisted pairs
• Shielding: U/UTP (Unshielded/Unshielded Twisted Pair)
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Jacket colour: yellow
• Jacket material: PVC
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Tips

Use this cable for short patch connections where high performance and easy identification are needed. The solid copper conductors are ideal for permanent links, but avoid frequent bending or flexing after installation to maintain signal integrity.
