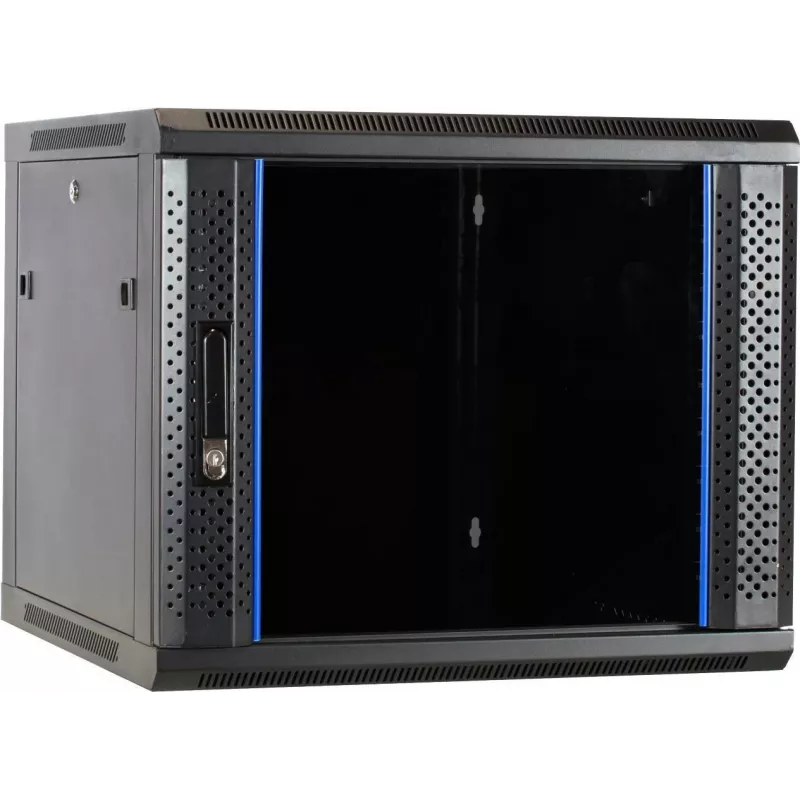

DSIT DS6609 armadio server da parete 9U con porta in vetro, 600x600x501 mm, nero

Network administrators and IT technicians in small offices, retail backrooms, and branch locations need a secure, space-saving enclosure for their 19-inch equipment. The DSIT DS6609 is a 9U wall-mount cabinet that keeps switches, patch panels, and small servers organized, protected, and easily accessible—without consuming valuable floor space.

Key specifications

• 9U rack capacity, 19-inch standard
• External dimensions: 600 mm width × 600 mm depth × 501 mm height

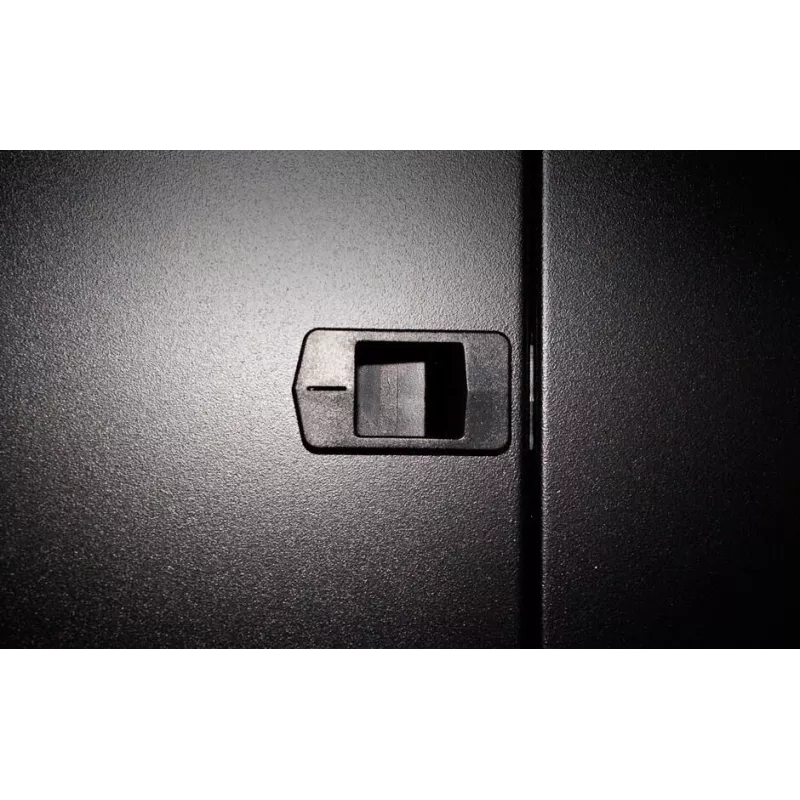

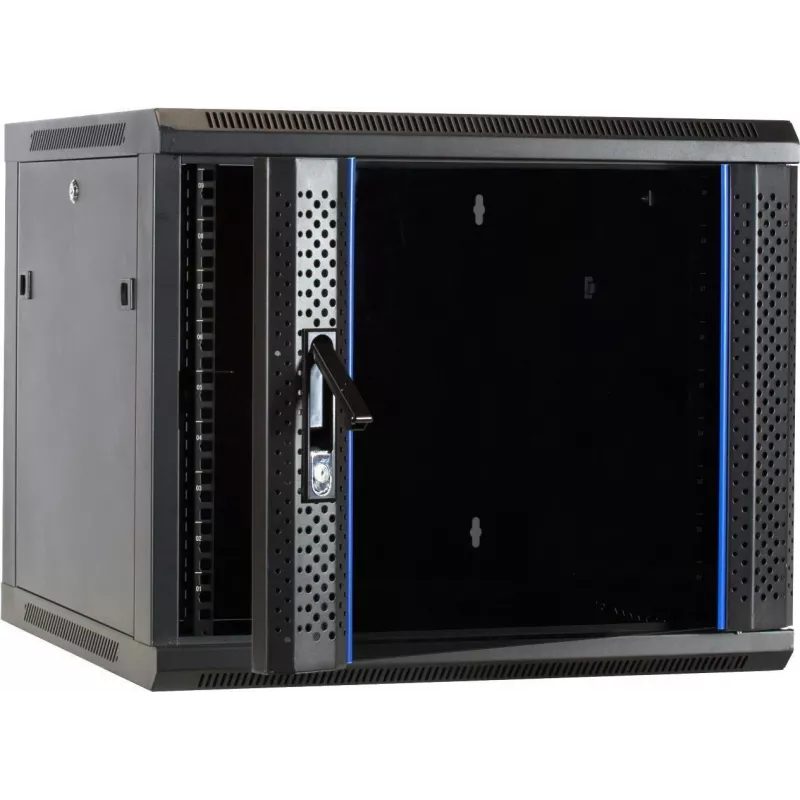

• Tempered glass front door with key lock
• Removable, lockable side panels
• Solid rear panel
• SPCC cold-rolled steel frame with powder-coated finish (black, RAL 9005)
• Adjustable 19-inch mounting rails (front and rear)
• Maximum load capacity: 60 kg
• IP20 protection rating
• Top and bottom cable entry with brush strips
• Passive ventilation; top panel prepared for optional fans
• Pre-assembled; includes 2 keys and mounting hardware
• Compliant with RoHS and CE

Why choose it

The DS6609 combines robust steel construction with a sleek glass door, offering both physical security and clear visibility of equipment status LEDs. Its wall-mount design frees up floor space, while the removable side panels and adjustable rails simplify installation and maintenance. The included brush strips keep cable runs tidy and dust out.

Ideal use cases

• Small business network closets
• Retail point-of-sale back offices
• Branch office IT installations
• Security system enclosures
• Educational facilities with limited space

Good to know

The cabinet arrives fully assembled, so you can mount it quickly with the included hardware. The tempered glass door allows you to monitor equipment LEDs at a glance, while the lockable panels deter unauthorized access. For active cooling, you can install fans in the prepared top panel.
