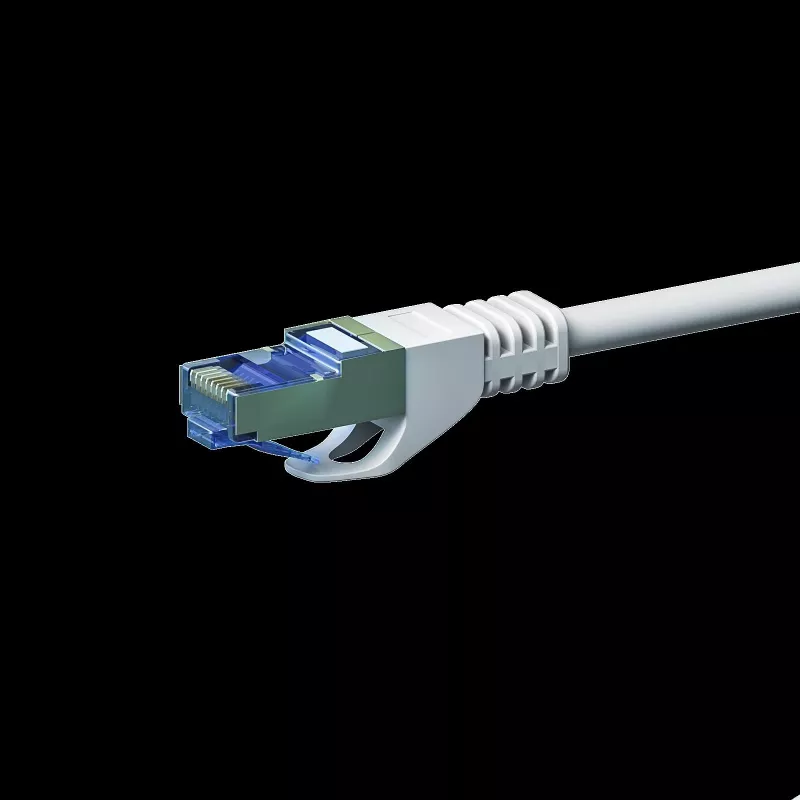

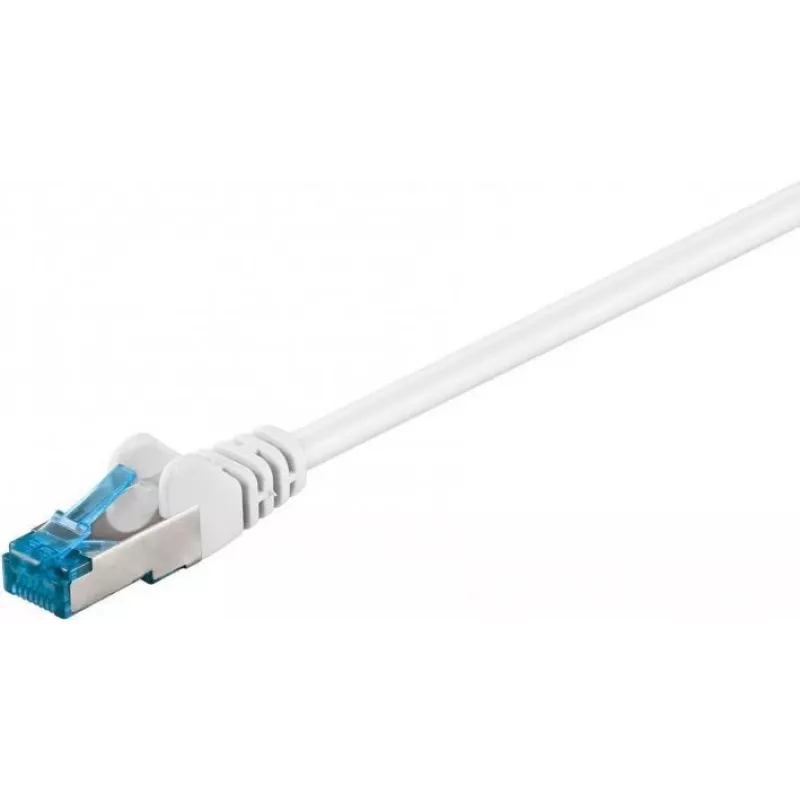

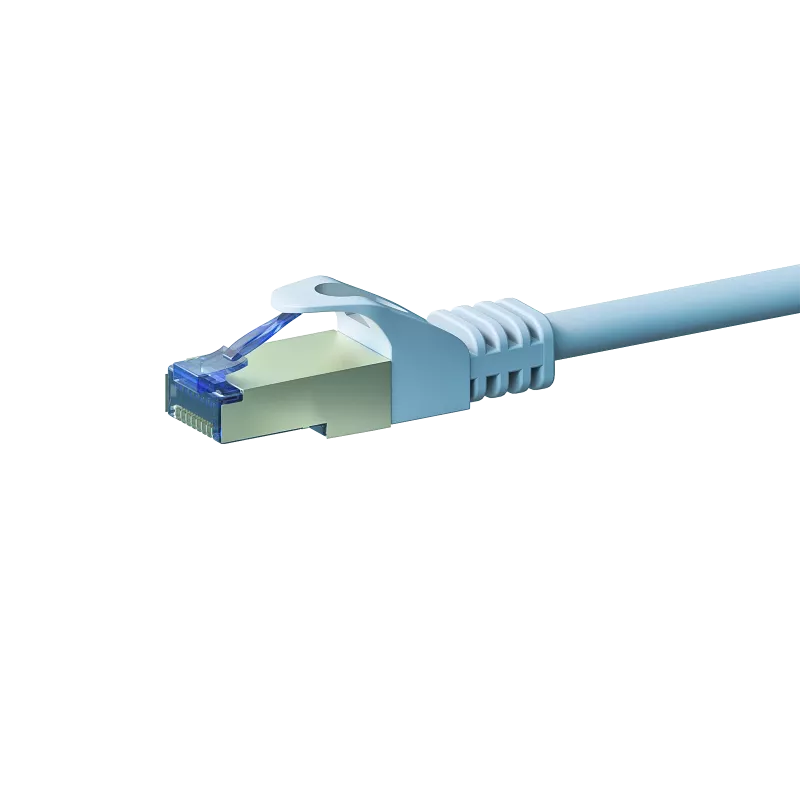

DSIT Cavo di rete CAT 6a LSOH - S/FTP - 1,5 m - bianco (DC-6A2-015)

This CAT 6a patch cable delivers 10 Gigabit Ethernet performance with S/FTP shielding and LSOH jacket, ensuring high-speed, interference-free connectivity in a compact 1.5-meter length. Its white, halogen-free design makes it ideal for safety-conscious environments where low smoke and zero halogen emissions are required.

Advantages

Experience reliable 10GBase-T transmission up to 500 MHz bandwidth, thanks to individual foil shielding and overall braid. The LSOH jacket reduces toxic smoke and corrosive gases in case of fire, enhancing safety in offices, data centers, and public buildings. Gold-plated contacts resist corrosion and maintain signal integrity over thousands of insertions.

Suitable for

• High-density data center patching and server connections
• Office LAN deployments requiring low-smoke, halogen-free cabling
• PoE applications up to 10G speeds
• Backward-compatible use with Cat 6, Cat 5e, and Cat 5 networks

Key specifications

• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Length: 1.5 meters
• Colour: White
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Data rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor: Copper, AWG 26/7 stranded
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flame retardancy: IEC 60332-1
• Outer diameter: Approx. 6.2 mm
• Operating temperature: -20°C to 60°C

Recommendations

For mission-critical networks where performance and safety are paramount, this DSIT CAT 6a cable provides the shielding and halogen-free construction essential for modern high-speed infrastructures.
