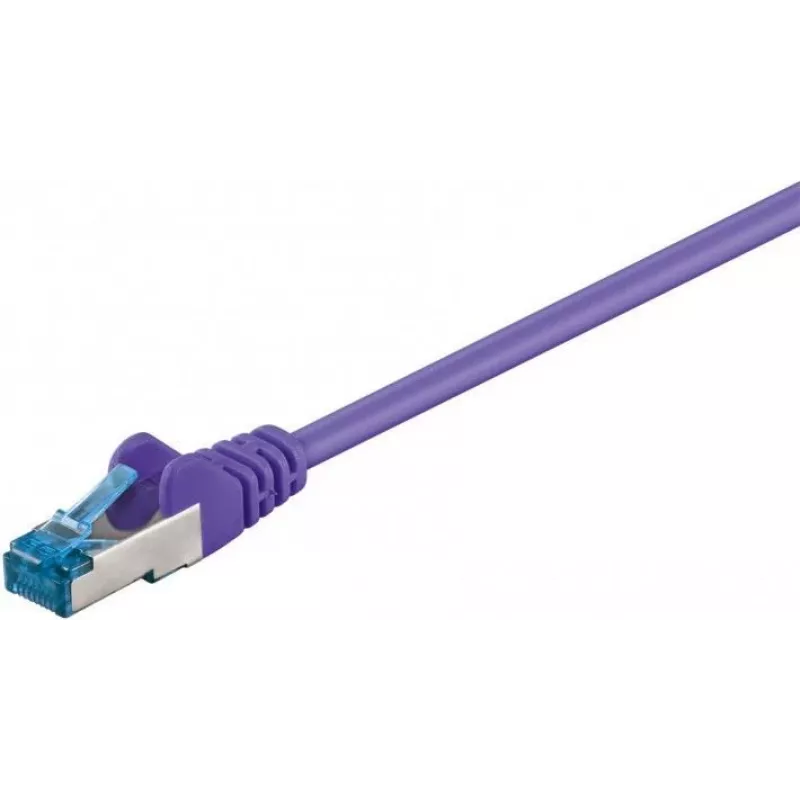

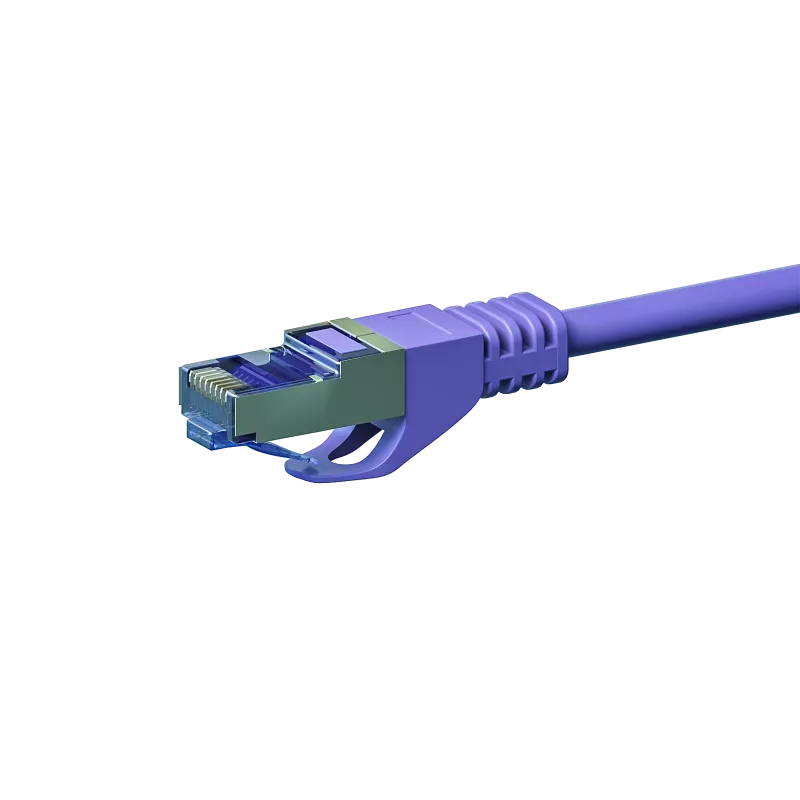

DSIT Cavo di rete CAT 6a LSOH - S/FTP - 1,50 m - viola (DC-6A8-015)

In high-density server rooms where every millisecond counts, this DSIT CAT 6a patch cable keeps 10 Gigabit links rock-solid. Its S/FTP shielding rejects alien crosstalk from adjacent bundles, while the LSOH jacket meets strict fire-safety codes for enclosed spaces. Connect switches, patch panels, or workstations with confidence.

Key specifications

• Category: CAT 6a (Class Ea)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Length: 1.5 meters
• Colour: Violet
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Stranded copper, AWG 26/7
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Outer diameter: Approx. 7.5 mm
• Halogen-free: Yes
• Flame retardant: Yes

Why choose it

Engineered for future-proof performance, this cable delivers stable 10GBASE-T throughput even in electrically noisy environments. The S/FTP construction provides superior protection against EMI and crosstalk, while the LSOH jacket emits low smoke and zero halogens in case of fire—critical for public buildings and data centers. The violet colour simplifies port identification and cable management.

Ideal use cases

• Data center patching between switches and patch panels
• High-density office workstation connections
• 10 Gigabit Ethernet backbone links
• Installations requiring low-smoke, halogen-free cabling
• Colour-coded network segmentation

Good to know

The stranded copper conductors offer flexibility for tight bends, while gold-plated contacts resist corrosion for long-term reliability. TIA/EIA 568B wiring ensures compatibility with standard network equipment. With a slim 7.5 mm outer diameter, it fits easily into high-density cable managers.
