DSIT cavo di rete CAT 6a LSOH - S/FTP - 20 metri - verde (DC-6A3-200)

For high-density data environments where performance and safety cannot be compromised, this DSIT CAT 6a patch cable delivers a shielded S/FTP construction with a low-smoke zero-halogen jacket. Unlike standard PVC cables, the LSOH sheath drastically reduces toxic fumes and smoke in the event of fire, making it a responsible choice for offices, schools, hospitals, and public buildings. At 20 meters, it bridges the gap between patch panels, switches, and workstations without signal degradation, supporting 10 Gigabit Ethernet up to 500 MHz.

Highlights

• CAT 6a performance: 10GBASE-T ready, 500 MHz bandwidth
• S/FTP shielding: each pair foiled plus overall braid for superior EMI/RFI rejection
• LSOH jacket: low smoke, zero halogen, IEC 60332-1 fire safety
• 100% copper stranded conductors (AWG 26/7) for flexibility and reliable PoE

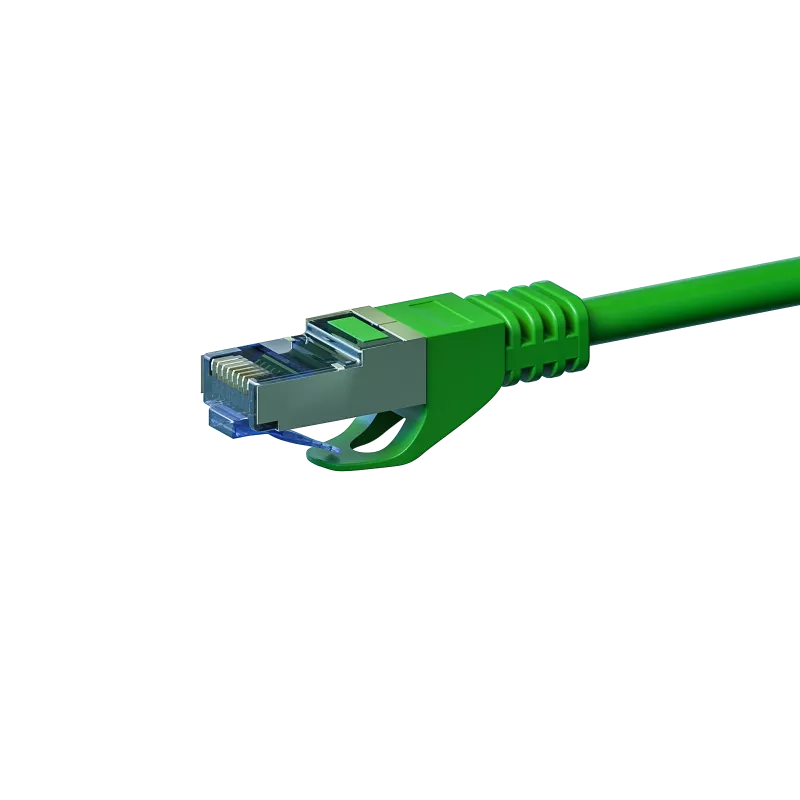

• Gold-plated RJ45 connectors with molded strain relief
• 20-meter length ideal for structured cabling runs

In daily use

The cable’s stranded copper core remains flexible even in tight spaces behind desks or inside cable trays. The green LSOH jacket is easy to identify in crowded racks, and the snagless boot protects the locking tab during frequent moves. It is backward compatible with Cat6, Cat5e, and Cat5 networks, so it works with existing infrastructure while future-proofing for faster speeds. Whether connecting a server to a switch or extending a workstation drop, this cable maintains signal integrity over the full 20-meter length.

Full specifications

• Brand: DSIT
• Model: DC-6A3-200
• MPN: DC-6A3-200
• EAN: 8719956622342
• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Length: 20 meters
• Colour: Green
• Connector type: RJ45 male to RJ45 male
• Conductor material: 100% copper, stranded
• Conductor gauge: AWG 26/7
• Shielding: S/FTP (overall braid + per-pair foil)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA-568B
• Connector plating: Gold-plated contacts
• Fire safety: IEC 60332-1
• Halogen-free: Yes
• RoHS compliant: Yes
• Compatibility: Cat6, Cat5e, Cat5

Final note

This DSIT CAT 6a LSOH cable combines high-speed performance with enhanced fire safety, making it an excellent choice for any modern network installation where both reliability and compliance matter.
