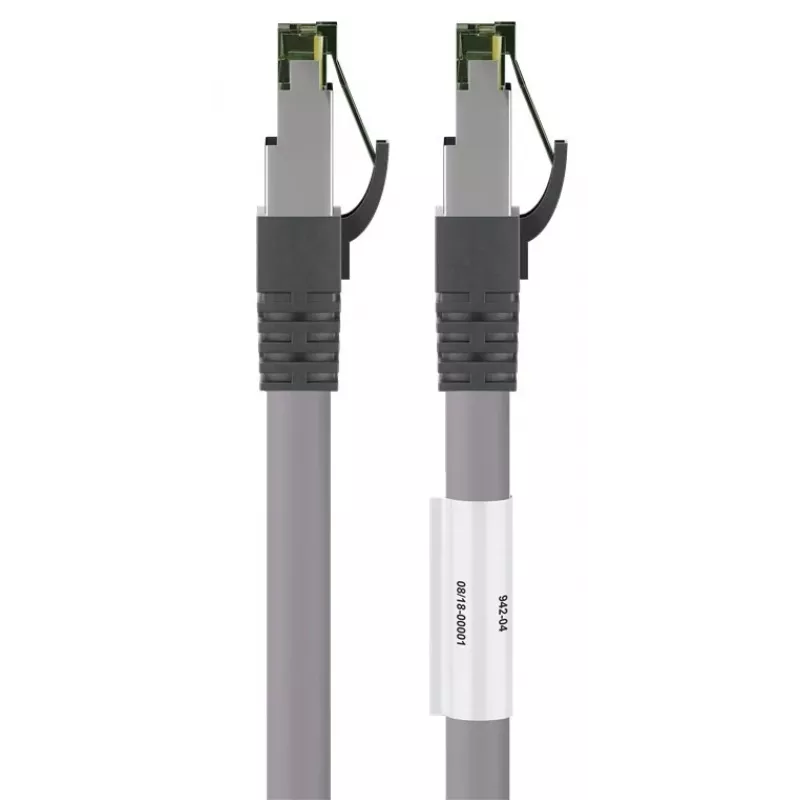

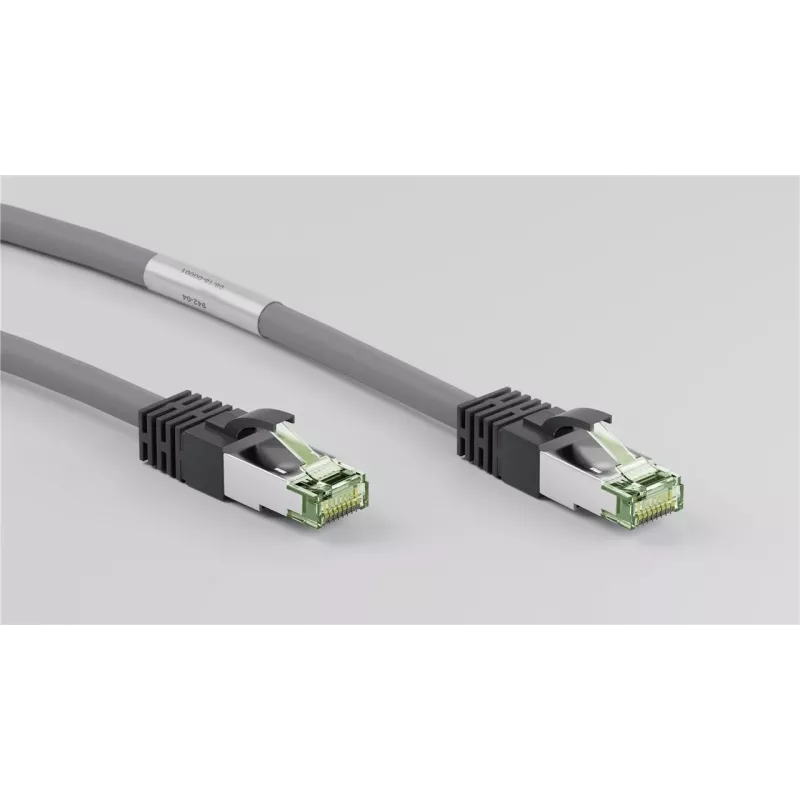

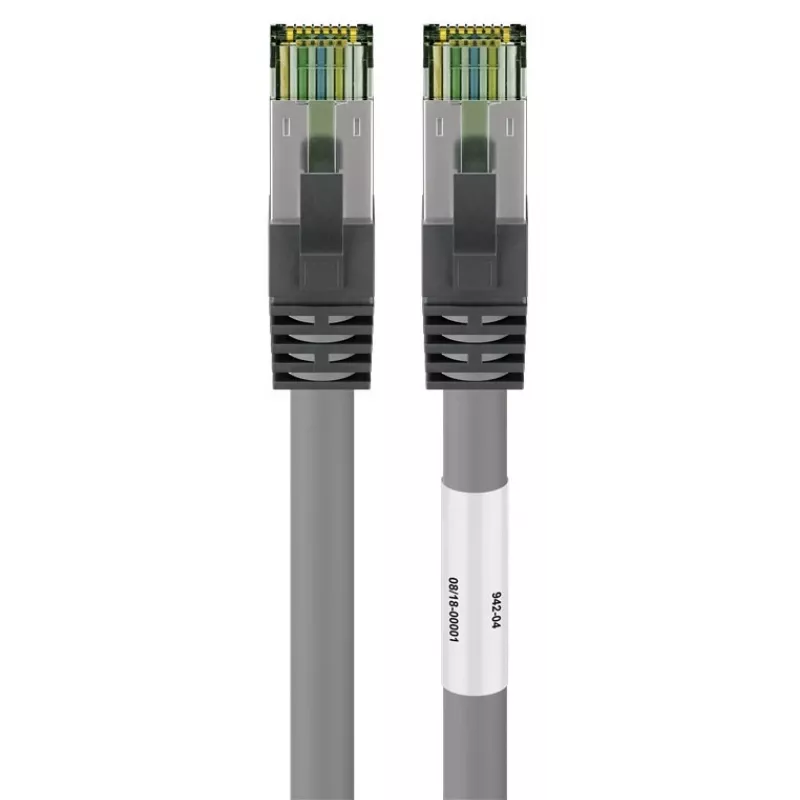

DSIT cavo di rete RJ45 S/FTP PiMF CAT 8 grigio 1m

In a high-density data center, a network engineer connects a 40Gbps switch to a server using this DSIT CAT 8 patch cable. The S/FTP shielding with PiMF construction ensures that the 2000 MHz bandwidth is fully utilized without interference, delivering flawless performance for the most demanding applications.

Key specifications

• Cable type: Network patch cable, CAT 8 (Category 8)
• Shielding: S/FTP (Screened Foiled Twisted Pair), PiMF (Pairs in Metal Foil)
• Connectors: RJ45 (8P8C) with gold-plated contacts
• Length: 1 meter
• Conductor: Pure copper, 23 AWG, stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Data transfer rate: Up to 40 Gbit/s (40GBASE-T)
• Bandwidth: Up to 2000 MHz
• PoE support: PoE, PoE+, 4PPoE (PoE++)
• Backward compatible with CAT6a, CAT6, CAT5e, CAT5
• Operating temperature: -20°C to 60°C

Why choose it

This cable delivers future-proof performance for high-speed networks. The S/FTP shielding with PiMF provides superior protection against alien crosstalk and EMI, ensuring reliable 40Gbps transmission. The LSZH jacket enhances safety in case of fire, making it suitable for public and industrial environments. Gold-plated contacts resist corrosion and maintain signal integrity over time.

Ideal use cases

• Data centers and server rooms requiring 40Gbps connectivity
• Industrial Ethernet applications with high electromagnetic interference
• High-performance workstations and network-attached storage
• PoE++ devices such as high-power access points and cameras

Good to know

This cable is a raw cable, meaning it is not pre-assembled with connectors; it is intended for custom termination by professionals. It is backward compatible with lower categories, so it can be used in existing networks while providing headroom for future upgrades. The stranded conductor offers flexibility for easier routing in tight spaces.
