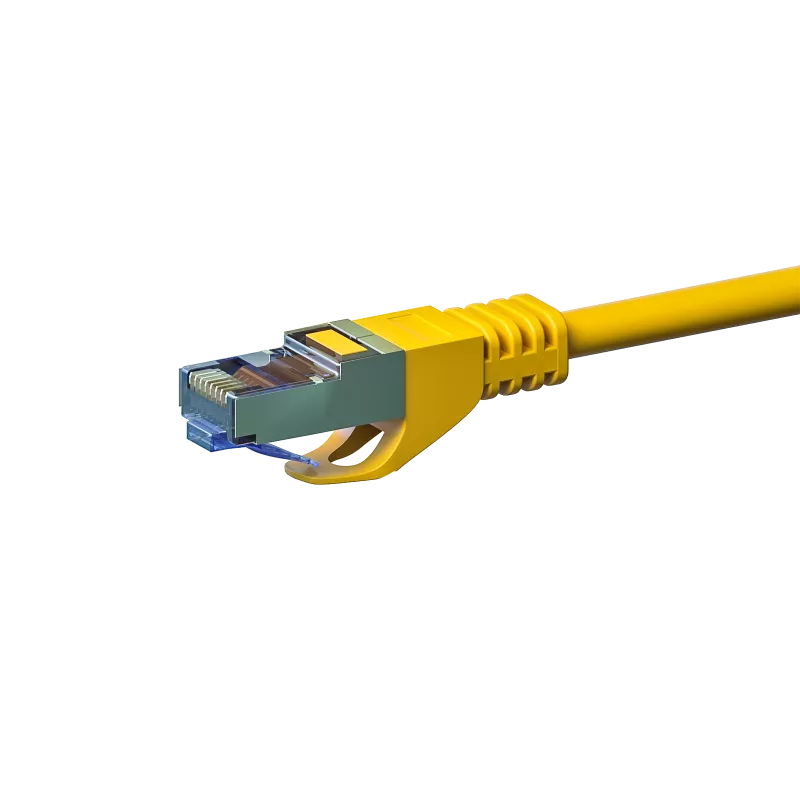

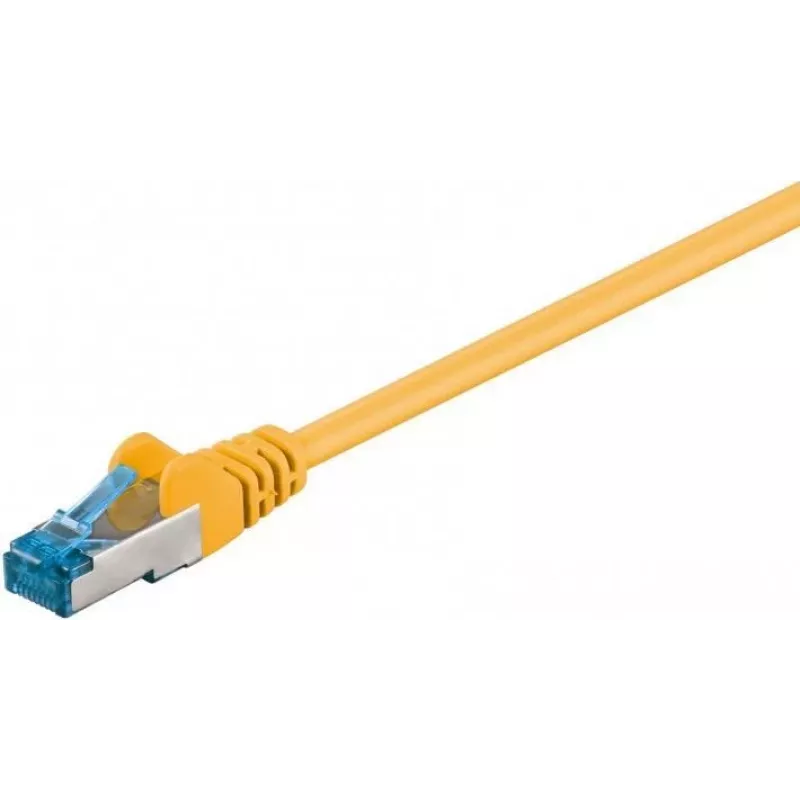

DSIT cavo patch di rete CAT 6a S/FTP LSOH, 1m, giallo, 10Gbps, 500MHz, RJ45 (DC-6A7-010)

Engineered for 10 Gigabit Ethernet with a 500 MHz bandwidth, this DSIT CAT 6a patch cable delivers high-speed, reliable connectivity in a compact 1-metre length. The S/FTP shielding—each pair foiled plus an overall braid—provides superior protection against EMI and crosstalk, while the LSOH jacket ensures low smoke and zero halogen emissions for enhanced safety in dense installations. Finished in yellow for easy identification, it’s a professional-grade solution for data networks, PoE, and PoE+ applications.

Overview

The DSIT CAT 6a Network Patch Cable (model DC-6A7-010) is a premium 1-metre cable built to support 10GBASE-T Ethernet up to 500 MHz. It features S/FTP construction: individually foiled twisted pairs wrapped in an overall braided shield, providing excellent immunity to electromagnetic interference and alien crosstalk. The LSOH (Low Smoke Zero Halogen) jacket meets stringent fire safety standards, making it ideal for offices, data centres, and public buildings. With stranded copper conductors (AWG 26/7) and gold-plated RJ45 connectors, this cable offers flexibility, durability, and reliable performance. It is fully backward compatible with Cat 6, Cat 5e, and Cat 5 networks.

What stands out

• Supports 10 Gigabit Ethernet (10GBASE-T) with 500 MHz bandwidth
• S/FTP shielding (foiled pairs + overall braid) for maximum noise immunity
• LSOH jacket: low smoke, zero halogen, flame retardant
• Stranded copper conductors (AWG 26/7) for flexibility and long life
• Yellow colour for easy identification and cable management
• Backward compatible with Cat 6, Cat 5e, and Cat 5
• Compliant with TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Supports Power over Ethernet (PoE, PoE+)

Technical details

• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Length: 1 metre
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Impedance: 100 Ohm
• Applications: Data networking, PoE, PoE+
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173

Our verdict

For high-density environments where performance and safety are paramount, this DSIT CAT 6a cable is an excellent choice. Its S/FTP shielding and LSOH jacket provide both signal integrity and fire safety, while the 1-metre length is perfect for patch panels and short equipment runs. The yellow colour adds practical visibility. A reliable, standards-compliant cable that delivers on its 10G promise.
