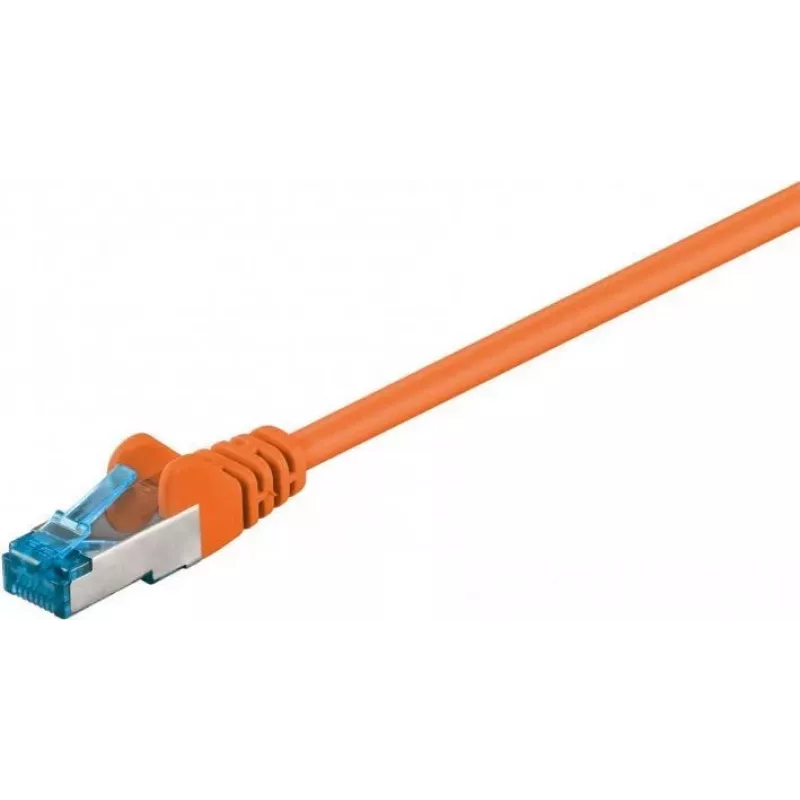

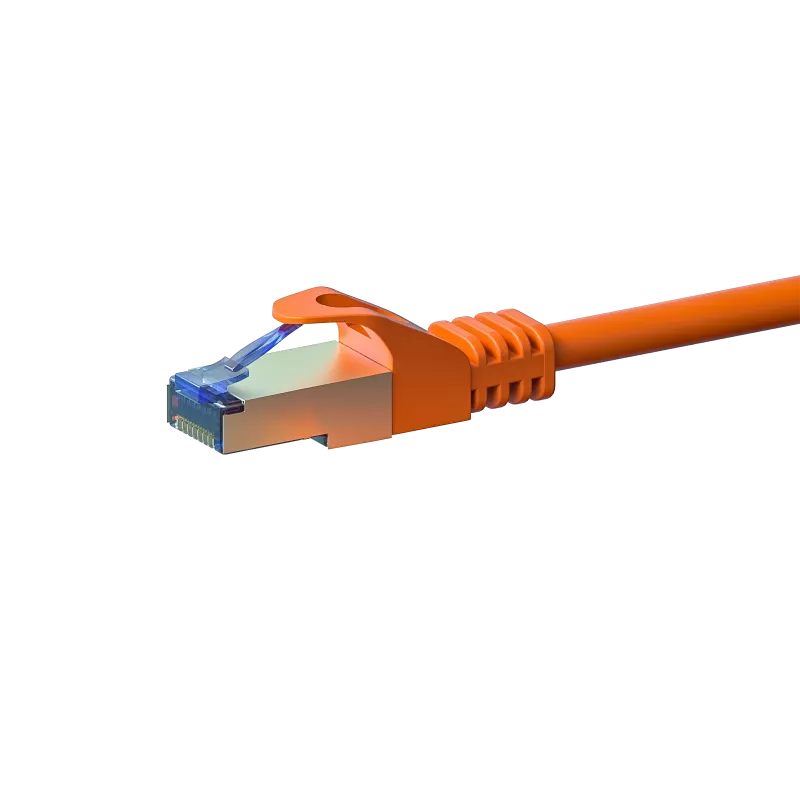

DSIT cavo patch di rete CAT 6a S/FTP LSOH, 3 m, arancione, 10Gbps, RJ45

For installations where fire safety and signal integrity are non-negotiable, this DSIT CAT 6a patch cable combines a low-smoke zero-halogen jacket with full S/FTP shielding to deliver 10 Gigabit performance over 3 meters. The orange LSOH sheath is engineered to emit minimal smoke and toxic fumes in the event of fire, making it suitable for public buildings, offices, and industrial environments. Each of the four twisted pairs is individually foil-shielded, and an overall braided screen rejects electromagnetic interference, ensuring reliable data transmission even in cable-dense racks.

Highlights

• CAT 6a performance with up to 500 MHz bandwidth and 10GBASE-T support
• S/FTP construction: per-pair foil plus overall braid for superior noise immunity
• LSOH (Low Smoke Zero Halogen) jacket meets IEC 60332-1, IEC 61034, and IEC 60754
• Gold-plated RJ45 connectors resist corrosion and maintain contact integrity
• Stranded copper conductors provide flexibility for frequent patching and routing
• Wired to TIA/EIA 568B for universal compatibility with network equipment

In daily use

At 3 meters, this cable bridges the gap between patch panels, switches, servers, and wall outlets without excess slack. The stranded copper core bends easily around corners and through cable managers, while the robust LSOH jacket withstands abrasion and repeated handling. The orange color stands out in crowded racks, simplifying identification and troubleshooting. Whether connecting a workstation to a wall port or linking a high-density switch, this cable maintains stable 10G links with minimal crosstalk and attenuation.

Full specifications

• Category: CAT 6a (Category 6a)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Length: 3 meters
• Color: Orange
• Jacket Material: LSOH (Low Smoke Zero Halogen)
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Material: Copper
• Cable Construction: Stranded
• Wiring Standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Application: Local Area Network (LAN)
• Fire Safety Standard: IEC 60332-1, IEC 61034, IEC 60754 (LSOH)
• Connector Plating: Gold-plated
• Number of Pairs: 4 Twisted Pairs

Final note

Engineered for high-density, safety-critical environments, the DSIT DC-6A6-030 delivers dependable 10G performance with a jacket that prioritizes human safety and environmental responsibility.
