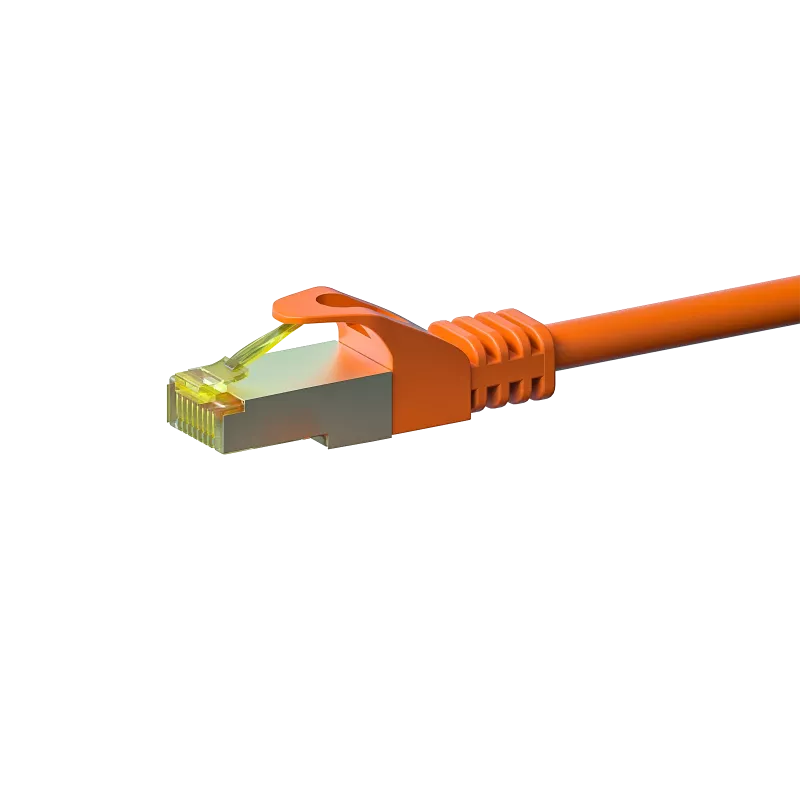

DSIT Cavo patch di rete Cat.7 S/FTP PiMF RJ45, 30m, arancione

High-speed networks demand cables that can keep up with 10-Gigabit data rates without interference or packet loss. The DSIT Cat.7 S/FTP PiMF RJ45 Network Patch Cable delivers exactly that: a 30-metre, orange, double-shielded copper link engineered for demanding LAN, data centre, and server room environments. With S/FTP construction and individual pair shielding (PiMF), it virtually eliminates crosstalk and electromagnetic interference, ensuring stable, error-free transmission at up to 600 MHz.

Who is it for

This cable is ideal for IT professionals, network administrators, and system integrators who need reliable, high-performance connectivity for 10GBASE-T Ethernet, Power over Ethernet (PoE, PoE+, UPoE), and bandwidth-intensive applications. It is equally suited for structured cabling in offices, server racks, patch panels, and industrial settings where signal integrity is critical.

Main features

• Cat.7 performance with 600 MHz bandwidth and 10 Gbps data transfer rate
• S/FTP shielding: braided screen plus foil around each twisted pair (PiMF) for maximum noise immunity
• Solid bare copper conductors, 23 AWG, for low attenuation and excellent conductivity
• Gold-plated RJ45 male connectors on both ends for corrosion resistance and reliable mating
• Durable orange PVC jacket for easy identification and protection in high-traffic areas
• Supports Power over Ethernet (PoE, PoE+, UPoE) for powering devices over the same cable
• Compliant with TIA/EIA-568-C.2 and ISO/IEC 11801 standards

Specifications

• Cable length: 30 m
• Cable category: Cat.7
• Shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: 23 AWG (solid)
• Jacket material: PVC
• Colour: Orange
• Data transfer rate: 10 Gbps
• Bandwidth: 600 MHz
• Connector plating: Gold
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801

Tips

For best performance, avoid sharp bends and maintain the minimum bend radius specified by the manufacturer. When routing through conduits or cable trays, use cable ties or Velcro straps to prevent kinking. To verify a 10G link, test with a certified cable tester after installation. This cable is backward compatible with Cat.6a, Cat.6, and Cat.5e networks.
