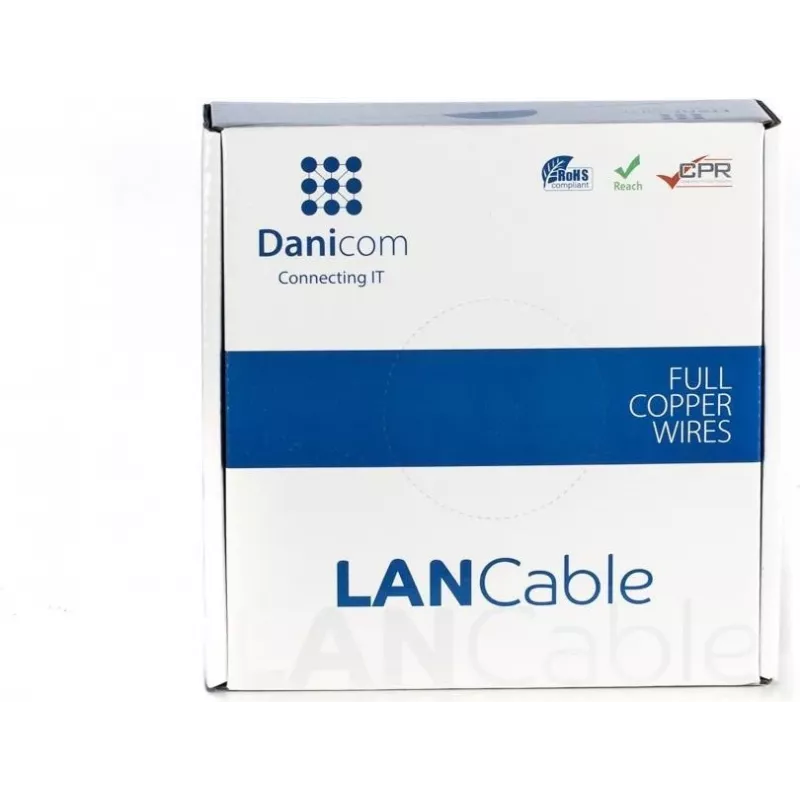

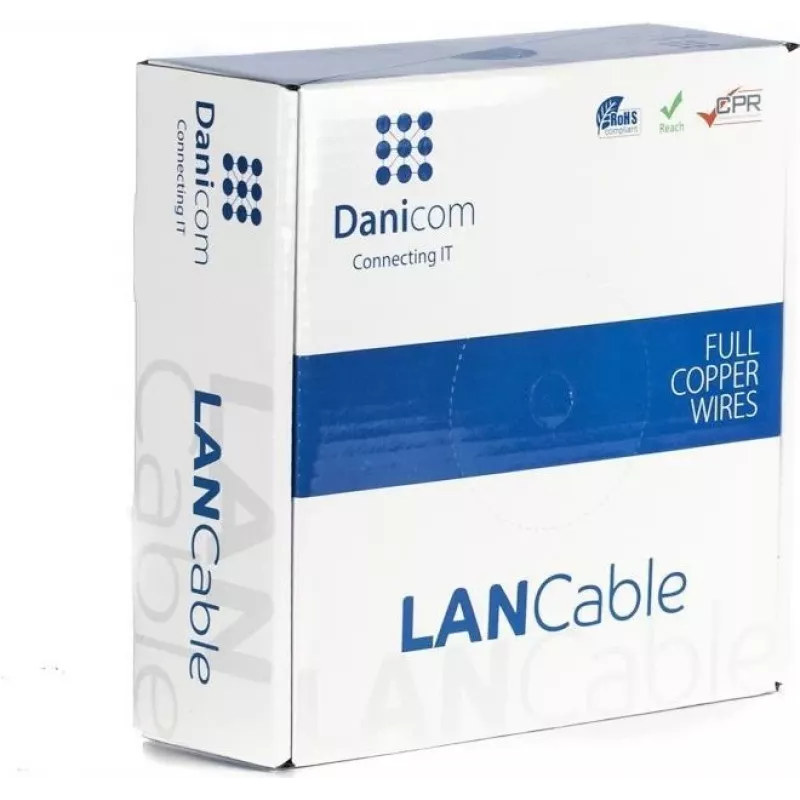

DSIT DANICOM CAT5E UTP 100m PVC Fca cavo di rete

Solid bare copper conductors and 100 MHz bandwidth make this Cat5e UTP cable a dependable backbone for Gigabit Ethernet and PoE applications. The 100-metre pull box keeps long runs tangle-free, while the grey PVC jacket balances flexibility with everyday durability.

Overview

The DSIT DANICOM CAT5E UTP cable delivers reliable network connectivity for structured cabling in offices, data centres, and industrial environments. With four twisted pairs of 24 AWG solid bare copper, it meets TIA/EIA-568-C.2 Category 5e standards and supports data rates up to 1000 Mbps. The unshielded twisted pair design reduces crosstalk and electromagnetic interference, ensuring stable performance for Ethernet, PoE, and other LAN applications.

What stands out

• 100-metre length on a convenient reel for large installations
• Solid bare copper conductors for superior signal integrity and PoE efficiency
• CPR Class Fca fire rating for compliance with European building regulations
• PVC jacket offers a good balance of flexibility, durability, and cost-effectiveness
• Supports Power over Ethernet (PoE) up to 100 W (PoE++), ideal for powering devices like IP cameras and access points

Technical details

• Cable type: Cat5e UTP (Unshielded Twisted Pair)
• Length: 100 m (328 ft)
• Conductor: Solid bare copper, 24 AWG

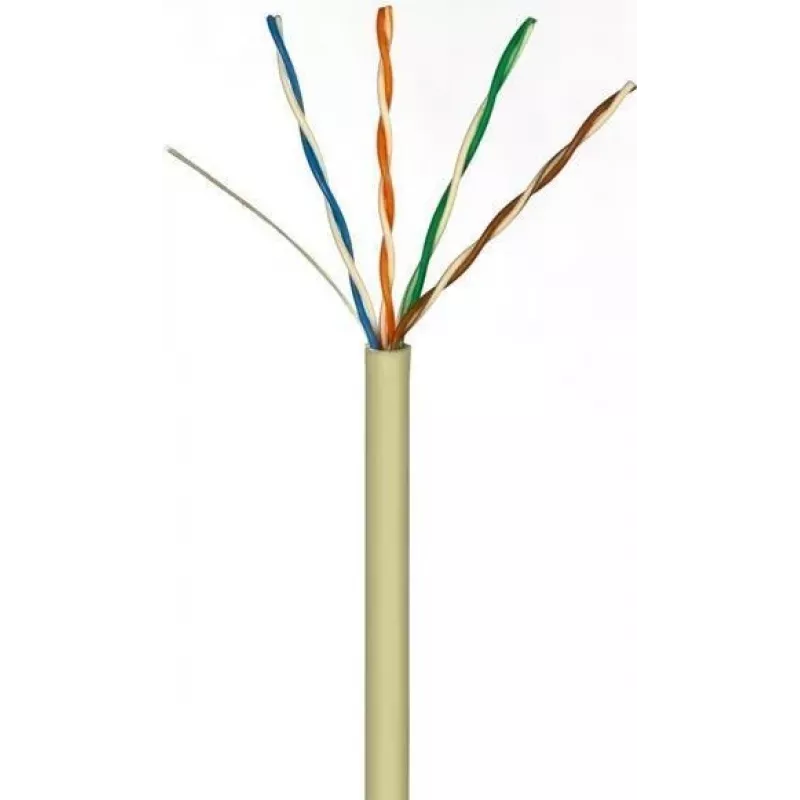

• Number of pairs: 4
• Bandwidth: Up to 100 MHz
• Data transfer rate: Supports up to 1000 Mbps (Gigabit Ethernet)
• Impedance: 100 Ohm
• Outer diameter: Approximately 5.0 mm
• Jacket material: PVC (Polyvinyl Chloride)
• Fire rating: CPR Class Fca

Our verdict

A robust and cost-effective Cat5e solution for professional installations, offering solid copper performance and PoE++ support in a practical 100-metre reel.
