DSIT DANICOM CAT6 FTP 50m PVC Fca cavo di rete

Running a reliable high-speed network over longer distances can be a challenge, especially when electromagnetic interference threatens signal integrity. The DSIT DANICOM CAT6 FTP 50m PVC Fca Network Cable solves this by combining robust foil shielding with solid copper conductors, delivering stable 10-Gigabit performance up to 55 meters. This 50-meter bulk cable comes on a convenient reel, ready for professional installations where quality and compliance matter.

Who is it for

This cable is ideal for network installers, IT professionals, and system integrators who need a dependable, CPR-compliant Cat6 solution for indoor structured cabling. Whether you're wiring an office, a data center, or a smart building, its Fca fire safety rating ensures it meets European construction product regulations, making it suitable for permanent installation in walls, ceilings, and conduits.

Main features

• Category 6 performance with 250 MHz bandwidth and 10GBASE-T support up to 55 meters

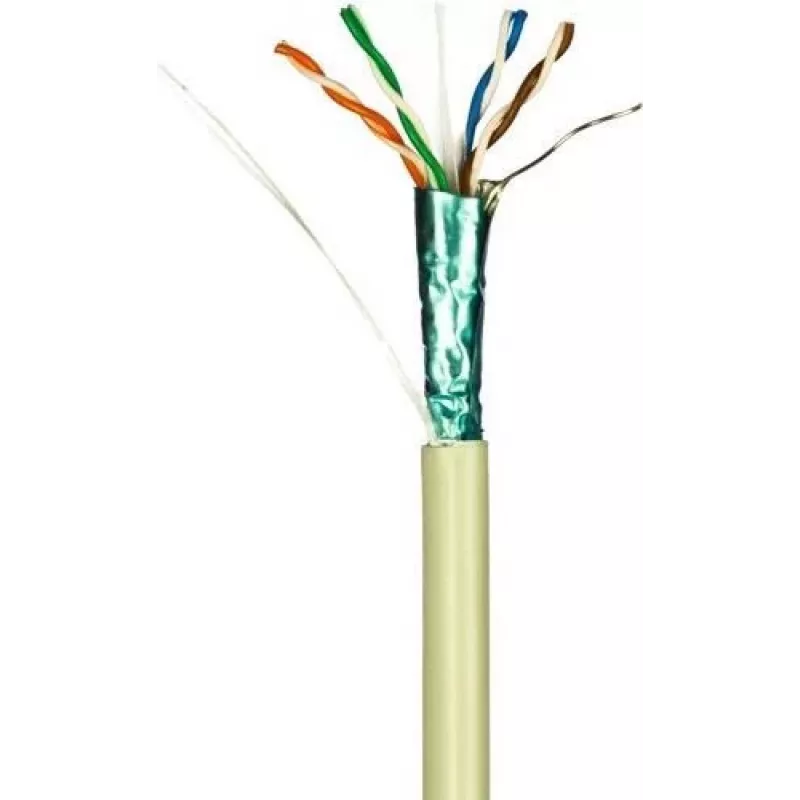

• FTP (Foiled Twisted Pair) shielding with an overall aluminum foil wrap to minimize alien crosstalk and EMI
• Solid bare copper conductors, 23 AWG, for superior conductivity and lower attenuation over long runs
• Durable grey PVC jacket with a nominal outer diameter of 6.2 mm, easy to pull and terminate
• CPR Euroclass Fca fire safety classification, compliant with EN 50575 for construction products

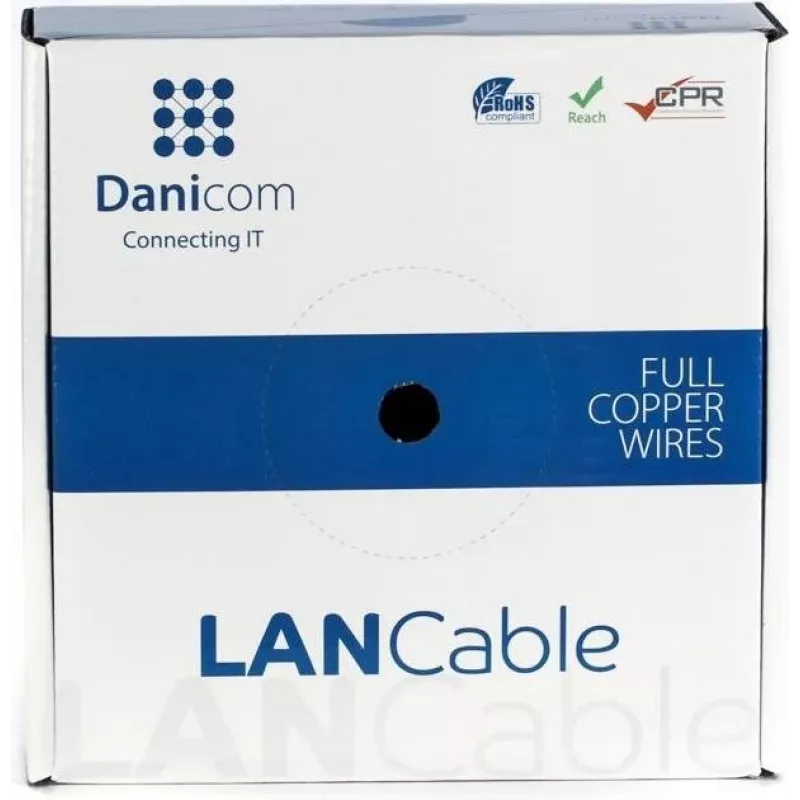

• Supplied on a 50-meter reel, unterminated, allowing custom lengths and connector choices
• Meets TIA/EIA-568-C.2 and ISO/IEC 11801 standards, ensuring compatibility with all Cat6 systems

Specifications

• Brand: DSIT
• Model: DC-FTP6-50-FCA
• MPN: DC-FTP6-50-FCA
• EAN: 8719956628740
• Cable type: Cat6 FTP
• Length: 50 m
• Shielding: Foiled Twisted Pair (FTP)
• Conductor material: Solid bare copper
• Conductor gauge: 23 AWG
• Number of conductors: 8 (4 twisted pairs)
• Jacket material: PVC
• Outer diameter: 6.2 mm
• Colour: Grey
• Fire safety class: Fca (CPR)
• Impedance: 100 Ohm
• Bandwidth: 250 MHz
• Data transfer rate: 10 Gigabit Ethernet up to 55 m
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• RoHS compliant: Yes
• Halogen free: No
• Installation type: Bulk cable on reel
• Termination: Unterminated

Tips

When installing this cable, avoid sharp bends that exceed the minimum bend radius (typically 4x the cable diameter) to preserve performance. Use Cat6-compatible connectors and patch panels to maintain the full 10-Gigabit capability. For outdoor or damp environments, consider a cable with a PE jacket or additional protection, as this PVC jacket is intended for indoor use only.
