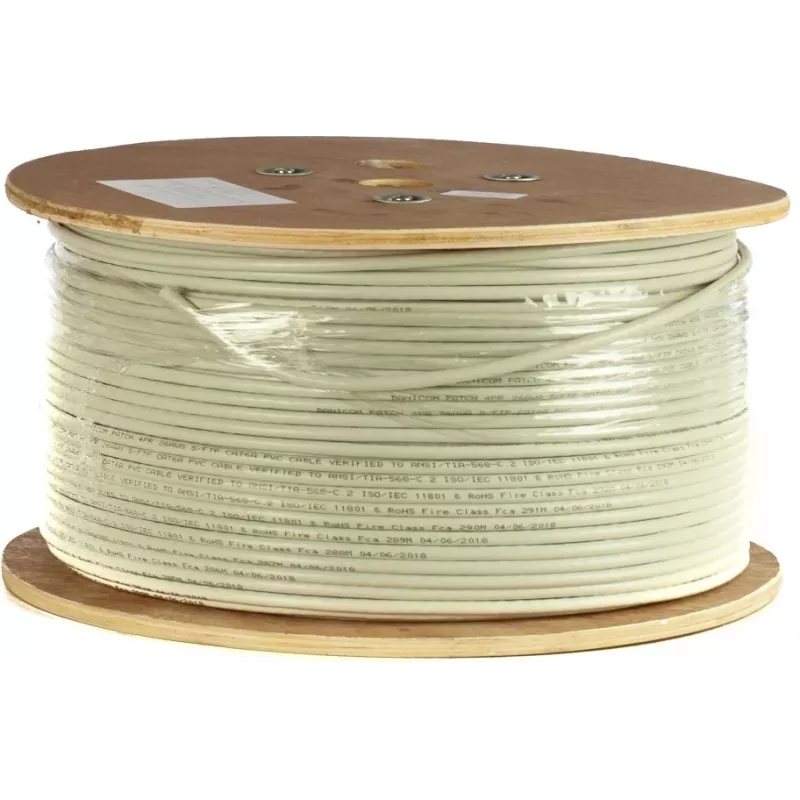

DSIT DANICOM CAT6A S/FTP 305m LSZH Fca cavo di rete per installazione (DC-SFTP6A-305-FCA)

In a busy data centre, where server racks hum and cable trays run overhead, technicians need a cable they can trust for 10 Gigabit links over long distances. The DSIT DANICOM CAT6A S/FTP cable delivers that reliability, supplied on a 305-metre reel for permanent installation in trays, conduits, and raised floors.

Key specifications

• Category: CAT6A, supporting 10GBASE-T up to 500 MHz bandwidth
• Shielding: S/FTP (screened/foiled twisted pair) for superior alien crosstalk resistance
• Conductor: 23 AWG solid bare copper, 4 twisted pairs, 100 Ohm impedance
• Jacket: LSZH (Low Smoke Zero Halogen), fire reaction class Fca per EN 50575
• Outer diameter: 7.3 mm, colour: purple
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

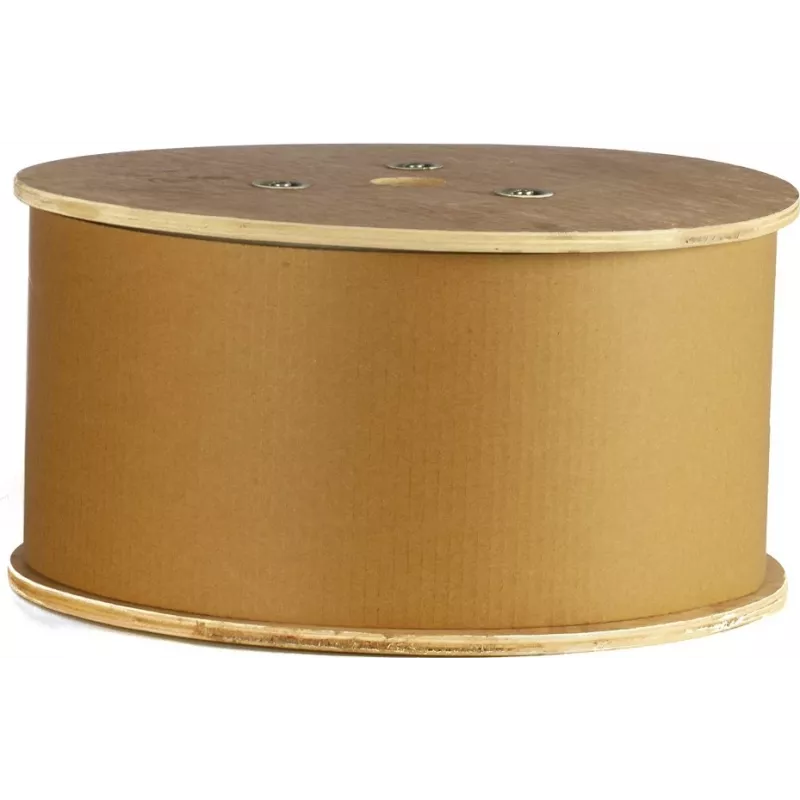

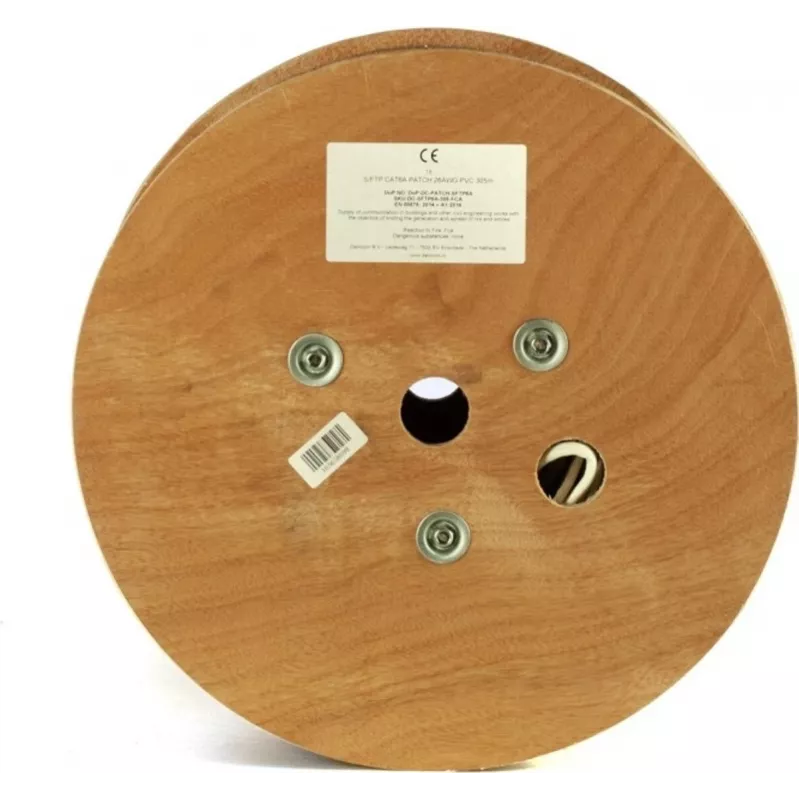

• Packaging: 305 m reel

Why choose it

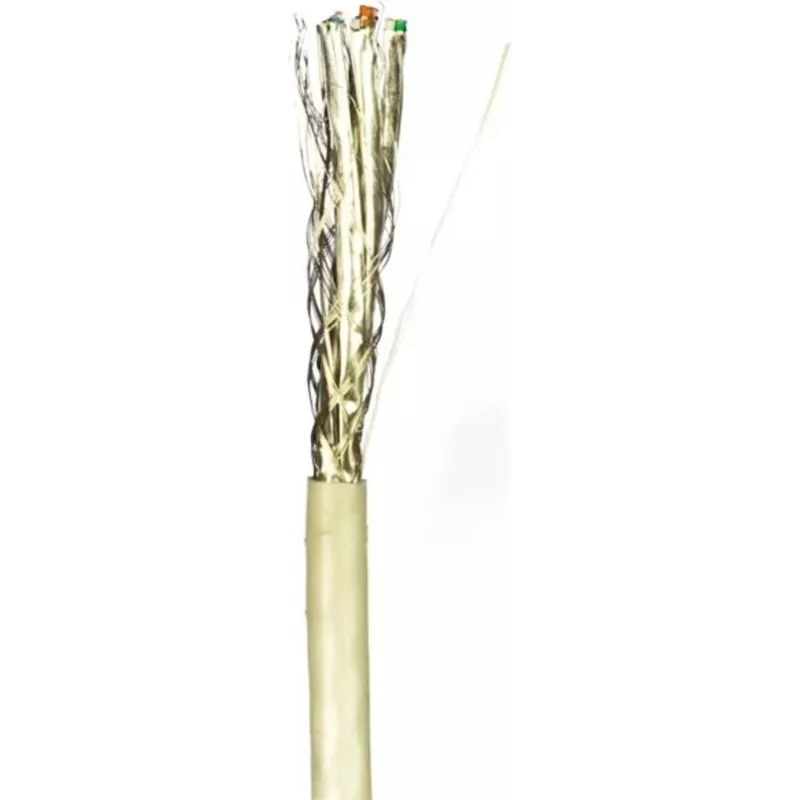

The S/FTP construction combines an overall braided screen with individual foil shielding per pair, delivering excellent protection against electromagnetic interference in dense, high-noise environments. The LSZH jacket emits low smoke and zero halogen gases in the event of fire, making it suitable for public buildings, hospitals, and schools where safety regulations demand Fca-classified cabling. Solid copper conductors ensure reliable performance for Power over Ethernet applications and long-term signal integrity.

Ideal use cases

• Data centre backbone and server room cabling
• Office network installations requiring 10Gbps throughput
• Industrial environments with high EMI
• Projects requiring LSZH and Euroclass Fca compliance

Good to know

This cable is ideal for permanent installation and meets stringent fire safety standards, making it a smart choice for any professional network infrastructure.
